Architecture

This document is for people editing the SPoRC codebase: contributors, successors, future you. The goal is to keep the package navigable as it grows, especially as spatial model development adds more moving parts. Update it whenever the pipeline below changes shape (a new Setup_Mod_* stage, a new section of the objective function, a new post fit diagnostic). A stale architecture document should be treated as a bug.

Mental model

SPoRC runs in three phases, in this order.

1. Setup. A chain of R functions builds up three plain lists: data, parameters and mapping. No likelihood is evaluated yet. This phase is data wrangling and input validation only.
2. Fit. data and parameters go to RTMB::MakeADFun wrapped around a single objective function, SPoRC_rtmb(), which is optimized with nlminb plus Newton refinement.
3. Post fit. The fitted object (obj$rep, obj$sdrep, obj$optim) is passed to diagnostics, reference points, plotting and resampling routines.

Setup_Mod_Dim()
   -> Setup_Mod_Rec()
   -> Setup_Mod_Biologicals()
   -> Setup_Mod_Movement()
   -> Setup_Mod_Tagging()
   -> Setup_Mod_Catch_and_F()
   -> Setup_Mod_FishIdx_and_Comps()   [+ Setup_Mod_Discard_Comps()]
   -> Setup_Mod_Fishsel_and_Q()       [+ Setup_Mod_Retsel()]
   -> Setup_Mod_SrvIdx_and_Comps()
   -> Setup_Mod_Srvsel_and_Q()
   -> Setup_Mod_Weighting()
        |
        v  input_list$data, input_list$par, input_list$map
   fit_model(data, parameters, mapping)
        |  RTMB::MakeADFun(cmb(SPoRC_rtmb, data), parameters, map = mapping)
        |  nlminb() + Newton steps
        v
   obj  (obj$rep, obj$sdrep, obj$optim)
        |
        +--> Get_Reference_Points()          SPR and MSY
        +--> get_idx_fits() / get_osa()      fit extraction and OSA residuals
        +--> plot_* / get_*_plot             figures and tables
        +--> do_retrospective(), do_jitter(), do_likelihood_profile(), run_francis()
        +--> Do_Population_Projection(), condition_closed_loop_simulations()

The input_list accumulator

Every Setup_Mod_* function takes an input_list (initialized by Setup_Mod_Dim() as list(data = list(), par = list(), map = list())) and returns it with more keys filled in. This is the central structure of the package: setup functions are pipeline stages that thread one growing list through each other, not independent builders.

Order matters. Later stages read dimensions (input_list$data$n_regions and friends) set by earlier ones, and default arguments frequently reference input_list$data$... in their own definitions. See Setup_Mod_Rec()’s defaults for an example.

At the end of the chain input_list$data, input_list$par and input_list$map are unpacked and passed to fit_model(). The Setup_Sim_* functions live in the same files as their Setup_Mod_* counterparts and follow the identical accumulator pattern, but build inputs for the operating model instead of for fitting.

The objective function

R/model_objective.R holds the one RTMB objective function for every model configuration the package supports. There is no per model branching at the file level. The objective always runs end to end and is regulated by the switches set during setup, such as rec_model, move_type, and the likelihood and OSA flags.

It moves through, in order: parameter transforms (movement, natural mortality, selectivity), then mortality, recruitment, initial age structure, population projection, the observation models (fishery, survey, tagging), the likelihood components (retained and discarded catch, indices, compositions, tags), and finally priors and penalties.

Each section hands off to a module in one of the other model_*.R files, so the objective reads as an order of operations rather than as the arithmetic itself. If you are adding a new data source or process, this is where its likelihood contribution gets wired in, and the matching Setup_Mod_* function is where its data, parameters and mapping get prepared beforehand.

Within model_objective.R the ## Section and ### Subsection comment banner style is used consistently. Keep using it if you extend the file, since it is the only navigation aid inside a function of this size.

Read R/model_transition.R first. It computes what happens to a vector of abundance over one season, given movement, mortality, season duration and a movement timing. Eleven other files go through it, including the objective function’s dynamics, the reference point solvers and the operating model.

Naming conventions

Files

The prefix on a file name says which phase it belongs to.

Prefix	Phase
setup_	Builds data, parameters and mapping, one process or data source per file. A source large enough to warrant it is split by topic, as setup_fishery_*.R and setup_survey_*.R are
model_	The objective function and the modules it delegates to
refpts_, projection	Reference points and forward projection off a fitted model
sim_	The operating model: self testing and closed loop simulation
diag_	Post fit diagnostics and residuals
plot_	Figures and summary tables
utils_	Helpers shared across phases
data_	Roxygen documentation for the bundled datasets

Functions

Prefix	Role
Setup_Mod_*	Builds inputs for a fitted object
Setup_Sim_*	Same, for the operating model. Lives beside its Setup_Mod_* counterpart, except for the fishery and survey, whose operating model inputs span several topic files and so share setup_sim_fleets.R
do_*_mapping	Internal helper that builds the RTMB map for one parameter block. This is how parameters get fixed, shared across blocks, or turned into random effect deviations
Get_*	Pulls a derived quantity out of set up data, parameters or a fitted object
do_* (top level)	A post fit procedure that refits or perturbs a fitted model
get_*_plot, get_*_fits	Post fit plotting and tabulation

A do_*_mapping helper lives in setup_mapping.R only if more than one setup_* file calls it. Single caller helpers stay in the file that uses them.

File map

Every script, what it defines, and what it talks to. This table is generated from the actual call graph, and shows “what interacts with what”. “Calls into” lists the files whose functions this one calls; “called from” is the reverse.

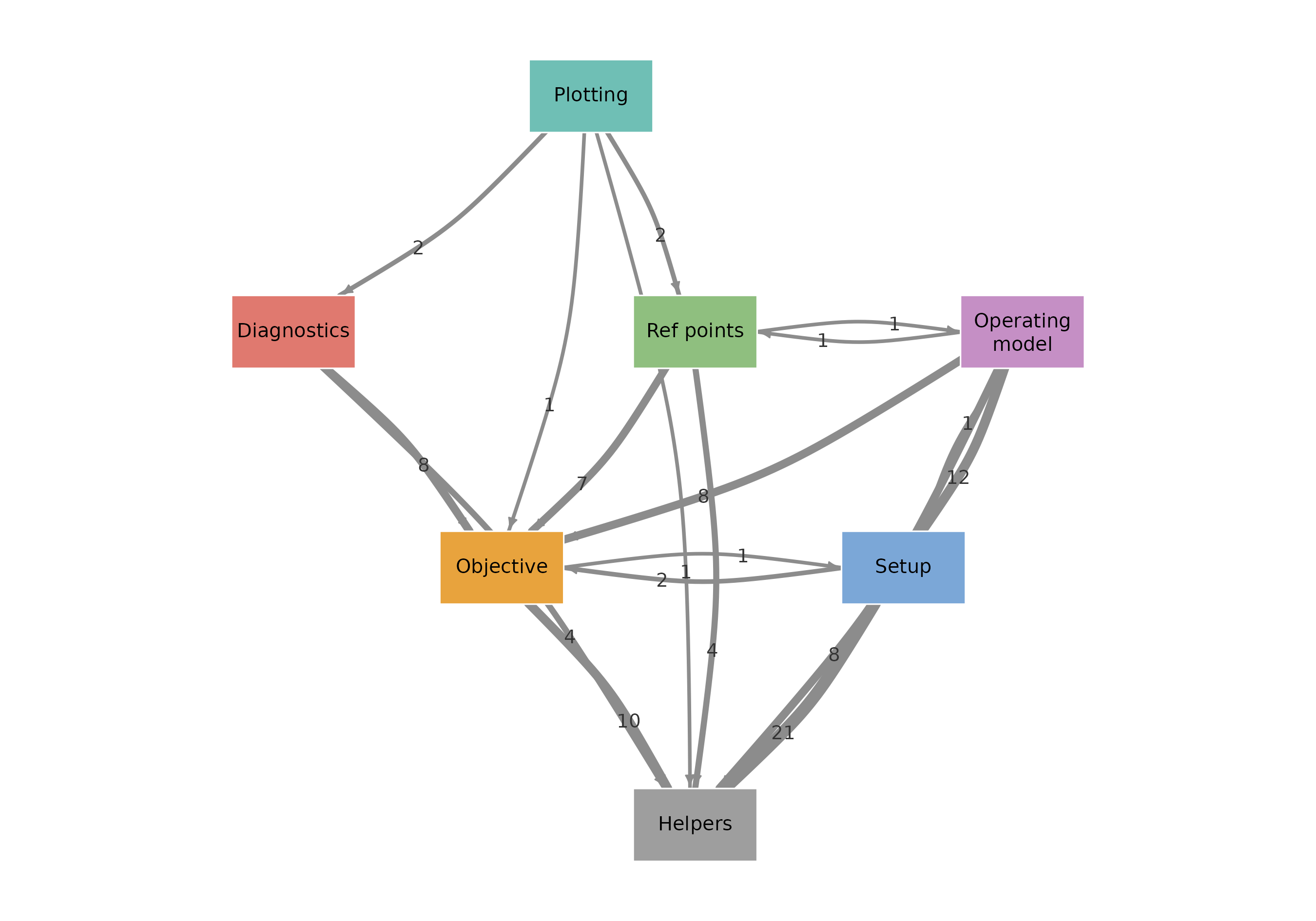

Edge labels count how many file to file dependencies sit behind each arrow. Helpers is a pure sink and Plotting a pure source, which is the shape you want: the objective function never reaches up into the post fit routines.

Below the same information at file resolution. A filled cell means the file on that row calls a function defined in the file in that column, and cells are grouped by stage. Empty rows call nothing else in the package, empty columns are called by nothing.

The model_transition column is the densest in the matrix: everything that moves fish through a season goes through that one file.

Per stage detail

Setup: build data, parameters and mapping

Script	Defines	Calls into	Called from
setup_biologicals.R	do_growth_mapping, do_NAAstate_mapping, do_natmort_mapping, Setup_Mod_Biologicals, Setup_Sim_Biologicals	setup_checks.R, utils_setup.R	sim_closed_loop.R, sim_self_test.R
setup_caal.R	parse_caal_type, setup_caal_source	utils_setup.R	setup_fishery_comps.R, setup_survey_comps.R
setup_checks.R	check_data_dimensions, check_miss0_osa, check_sim_dimensions	nothing	setup_biologicals.R, setup_fishery_catch.R, setup_fishery_comps.R, setup_fishery_selectivity.R, setup_movement.R, setup_recruitment.R, setup_sim_fleets.R, setup_survey_comps.R, setup_survey_selectivity.R, setup_tagging.R
setup_dimensions.R	Setup_Mod_Dim, Setup_Sim_Dim	utils_setup.R	sim_closed_loop.R, sim_self_test.R
setup_fishery_catch.R	do_dmr_dev_mapping, do_dmr_mean_mapping, do_Fdev_rho_mapping, do_Fmort_mapping, do_sigma_dmr_mapping, do_sigmaC_mapping, do_sigmaC_pop_mapping, do_sigmaD_mapping, do_sigmaD_pop_mapping, do_sigmaF_mapping, Setup_Mod_Catch_and_F	setup_checks.R, setup_mapping.R, utils_setup.R, utils_year_fleet_spec.R
setup_fishery_comps.R	Setup_Mod_Discard_Comps, Setup_Mod_FishIdx_and_Comps	setup_caal.R, setup_checks.R, setup_mapping.R, utils_setup.R, utils_year_fleet_spec.R
setup_fishery_selectivity.R	Setup_Mod_Fishsel_and_Q, Setup_Mod_Retsel	setup_checks.R, setup_mapping.R, utils_math.R, utils_setup.R
setup_mapping.R	at_age_block_complete, at_age_dims, at_age_n_sexes, at_age_sigma_spec, build_pe_map, build_shared_spec_map, check_at_age_shape, check_fleet_spec_length, check_spec_map_identifiable, do_age_corr_setup, do_at_age_data_setup, do_at_age_like_setup, do_at_age_type_setup, do_comp_corr_pars_mapping, do_comp_theta_mapping, do_fixed_sel_pars_mapping, do_key_mapping, do_q_mapping, do_sel_devs_mapping, do_sel_pe_pars_mapping, do_sigmaIdx_mapping, sel_has_data, sync_dev_map_data	model_lik_at_age.R, utils_setup.R, utils_year_fleet_spec.R	model_fit.R, setup_fishery_catch.R, setup_fishery_comps.R, setup_fishery_selectivity.R, setup_movement.R, setup_recruitment.R, setup_sim_fleets.R, setup_survey_comps.R, setup_survey_selectivity.R
setup_movement.R	do_cont_vary_move_mapping, do_move_pars_mapping, Setup_Mod_Movement	model_movement.R, setup_checks.R, setup_mapping.R, utils_setup.R
setup_recruitment.R	do_h_mapping, do_InitDevs_mapping, do_rec_region_prop_mapping, do_rec_seas_prop_mapping, do_RecDevs_mapping, do_RecDevs_rho_mapping, do_sexratio_pars_mapping, do_sigmaR_mapping, do_stray_rate_mapping, Setup_Mod_Rec, Setup_Sim_Rec	setup_checks.R, setup_mapping.R, utils_setup.R	sim_closed_loop.R, sim_self_test.R
setup_sim_containers.R	Setup_Sim_Containers	nothing	sim_closed_loop.R, sim_self_test.R
setup_sim_fleets.R	Setup_Sim_Fishing, Setup_Sim_Survey	setup_checks.R, setup_mapping.R, sim_observations.R, utils_setup.R, utils_year_fleet_spec.R	sim_closed_loop.R, sim_self_test.R
setup_survey_comps.R	Setup_Mod_SrvIdx_and_Comps	setup_caal.R, setup_checks.R, setup_mapping.R, utils_setup.R, utils_year_fleet_spec.R
setup_survey_selectivity.R	Setup_Mod_Srvsel_and_Q	setup_checks.R, setup_mapping.R, utils_math.R, utils_setup.R
setup_tagging.R	do_conv_init_tag_mort_mapping, do_conv_tag_fish_reporting_pars_mapping, do_conv_tag_shed_mapping, do_conv_tag_theta_mapping, recycle_tag_event_par, Setup_Mod_Tagging, Setup_Sim_Tagging	setup_checks.R, utils_setup.R	sim_closed_loop.R, sim_self_test.R
setup_weighting.R	Setup_Mod_Weighting	utils_setup.R

Objective function and its modules

Script	Defines	Calls into	Called from
model_biomass.R	compute_biom_y, derive_proj_biom	model_transition.R	model_population_dynamics.R, projection.R
model_distributions.R	build_idx_sd, combine_idx_sd, dbeta_symmetric, ddirichlet, ddirmult, dlogistnormal, dnbinom_robust_noint, dpois_noint, get_at_age_2dar1_nLL, get_at_age_nLL, get_beta_scaled_pars, get_index_nLL, get_logistnormal_miss0_nLL, get_seas_pred, get_seas_pred_pop	utils_math.R	model_lik_at_age.R, model_lik_comps.R, model_lik_tags.R, model_objective.R, model_priors_penalties.R
model_fit.R	cmb, fit_model	setup_mapping.R, utils_setup.R	diag_francis.R, diag_jitter.R, diag_likelihood_profile.R, diag_retrospective.R, refpts_main.R, sim_self_test.R
model_growth.R	get_alk, Get_Growth, get_growth_pars_year, Get_Growth_Year, get_laa_curve, get_selected_waa, grow_increment, growth_containers, growth_fill_year, growth_laa_at, growth_len_mid, growth_selected_waa_year, growth_start_state, growth_take_year, plus_group_size	nothing	model_objective.R, model_population_dynamics.R
model_init_naa.R	Get_Init_NAA	model_transition.R, utils_setup.R	model_objective.R, sim_population.R
model_lik_at_age.R	at_age_obs_sd, at_age_split, get_at_age_prediction, get_at_age_source_nLL, prep_at_age_obs	model_distributions.R, utils_math.R	diag_osa_residuals.R, model_objective.R, plot_figures_tables.R, setup_mapping.R, sim_observations.R
model_lik_caal.R	caal_sum_pop, caal_sum_pop_len, eval_caal_osa, Get_CAAL_Likelihoods, pack_caal_osa	model_lik_comps.R	diag_osa_residuals.R, model_objective.R
model_lik_comps.R	eval_comp_osa, eval_comp_source_osa, Get_Comp_Likelihoods, Get_Comp_Likelihoods_OSA, get_comp_source_nLL, get_seas_comp_exp, pack_comp_osa, pack_comp_source_osa	model_distributions.R, model_osa.R, utils_math.R, utils_setup.R	diag_osa_residuals.R, model_lik_caal.R, model_objective.R
model_lik_tags.R	eval_tag_osa, get_conv_tag_likelihoods, pack_tag_osa, tag_fam_of, tag_grid	model_distributions.R, model_osa.R	diag_osa_residuals.R, model_objective.R
model_movement.R	get_ctmc_bound_form, Get_Movement, get_movement_dp_design_matrix	utils_math.R	model_objective.R, setup_movement.R
model_objective.R	maintain_backwards_compatibility, SPoRC_rtmb	model_distributions.R, model_growth.R, model_init_naa.R, model_lik_at_age.R, model_lik_caal.R, model_lik_comps.R, model_lik_tags.R, model_movement.R, model_obs_fishery_survey.R, model_obs_tagging.R, model_population_dynamics.R, model_priors_penalties.R, model_selectivity.R, utils_setup.R
model_obs_fishery_survey.R	get_blocked_analytic_q, get_fishery_observation_model, get_survey_observation_model	model_transition.R	model_objective.R
model_obs_tagging.R	get_tag_mort, get_tagging_observation_model, release_conv_tag_attr	model_transition.R	model_objective.R, sim_observations.R
model_osa.R	ddirmult_osa, ddirmult2, dmultinom_osa, osa_extract_cdf, osa_extract_keep, osa_extract_values, osa_extract_x, osa_pbetabinom, osa_pbinom, osa_squeeze	nothing	model_lik_comps.R, model_lik_tags.R
model_population_dynamics.R	compute_mortality_year, get_population_projection	model_biomass.R, model_growth.R, model_transition.R	model_objective.R
model_precision.R	Get_3d_precision	nothing	model_priors_penalties.R, sim_naa_state.R
model_priors_penalties.R	dev_own_mean, dev_share_weights, get_dmr_penalty, Get_Fdev_PE_loglik, get_init_devs_penalty, Get_move_PE_loglik, get_movement_dirichlet_prior, Get_NAA_state_penalty, get_natmort_prior, Get_PE_loglik, get_q_prior, get_r0_prior, get_rec_devs_penalty, get_rec_level_penalty, get_recdev_pe_nLL, get_recruitment_penalty, get_recruitment_proportion_priors, get_selex_fixed_penalty, get_selex_prior, Get_Selex_Smoothness_Penalty, get_sr_penalty, get_steepness_prior, get_tagrep_prior, penalize_naa_age_year	model_distributions.R, model_precision.R, utils_math.R	model_objective.R
model_recruitment.R	Get_Det_Recruitment	model_transition.R	projection.R, sim_population.R
model_selectivity.R	Get_Selex, Get_Selex_Array	nothing	model_objective.R
model_transition.R	advance_seas, build_seas_operator, catch_at_age, integrate_seas_abundance, seas_operator_and_integral, spawn_state, survey_state	utils_math.R	model_biomass.R, model_init_naa.R, model_obs_fishery_survey.R, model_obs_tagging.R, model_population_dynamics.R, model_recruitment.R, projection.R, refpts_main.R, refpts_msy.R, refpts_spr.R, sim_observations.R, sim_population.R

Reference points and projection

Script	Defines	Calls into	Called from
projection.R	bind_proj_SSB, build_proj_F, Do_Population_Projection, proj_catch_at_F, proj_log_catch_resid, proj_target_catch, run_proj_year, solve_proj_F_catch, solve_proj_year_F	model_biomass.R, model_recruitment.R, model_transition.R, sim_random_variates.R, utils_setup.R	plot_figures_tables.R
refpts_main.R	build_plus_group_T, check_msy_rec_model, Get_Reference_Points, optim_ref_pts, solve_plus_group	model_fit.R, model_transition.R, utils_setup.R	plot_figures_tables.R, refpts_msy.R, refpts_spr.R, sim_closed_loop.R
refpts_msy.R	equil_rec_phi, equil_rec_ssb, equil_rec_ssb_deriv, global_Fmsy, local_Fmsy_multipop, local_Fmsy_sglpop, single_region_Fmsy	model_transition.R, refpts_main.R, utils_setup.R
refpts_spr.R	global_SPR, single_region_SPR	model_transition.R, refpts_main.R, utils_setup.R
refpts_uncertainty.R	eval_refpt_log_quantities, flatten_refpt, Get_Reference_Point_Uncertainty, refpt_draw_devs, refpt_par_cov, refpt_quad_form	nothing

Operating model

Script	Defines	Calls into	Called from
sim_closed_loop.R	catch_to_F_multifleet, catch_to_F_singlefleet, condition_closed_loop_simulations, get_closed_loop_reference_points	refpts_main.R, setup_biologicals.R, setup_dimensions.R, setup_recruitment.R, setup_sim_containers.R, setup_sim_fleets.R, setup_tagging.R, sim_self_test.R, utils_math.R, utils_postfit.R, utils_setup.R
sim_naa_state.R	color_naa_dim, draw_naa_innovations, Setup_Sim_NAA_state	model_precision.R	sim_population.R
sim_observations.R	build_idx_factor, collapse_seas_at_age, collapse_seas_obs, cov_to_factor, draw_index_obs, generate_fishery_catch_comp_idx, generate_fishery_conv_tags_recap, generate_survey_comp_idx, marginalize_conv_fish_tags, predict_sim_fish_iss_fmort, release_conv_tags, resolve_idx_factor, sim_at_age_cell, simulate_caal, simulate_comps, simulate_conv_tag_fish_recaptures, store_at_age_cell	model_lik_at_age.R, model_obs_tagging.R, model_transition.R, sim_random_variates.R, utils_setup.R	setup_sim_fleets.R, sim_population.R
sim_population.R	apply_pop_dy, compute_biom_y_sim, generate_initial_age_structure, generate_recruitment, run_annual_cycle, Simulate_Pop_Static	model_init_naa.R, model_recruitment.R, model_transition.R, sim_naa_state.R, sim_observations.R, sim_setup.R	sim_self_test.R
sim_random_variates.R	comp_corr_natural, rdirM, rinvgauss_rec, rlogistnormal	utils_math.R	projection.R, sim_observations.R
sim_self_test.R	simulation_data_to_SPoRC, simulation_self_test, warn_R0_ref_block_om	model_fit.R, setup_biologicals.R, setup_dimensions.R, setup_recruitment.R, setup_sim_containers.R, setup_sim_fleets.R, setup_tagging.R, sim_population.R, utils_math.R, utils_postfit.R, utils_setup.R	sim_closed_loop.R
sim_setup.R	Setup_sim_env	nothing	sim_population.R

Diagnostics

Script	Defines	Calls into	Called from
diag_fits.R	get_caal_fits, get_caal_prop, get_comp_prop, get_idx_fits, Restrc_Comps	utils_setup.R	diag_francis.R, plot_figures_tables.R
diag_francis.R	do_francis_reweighting, get_francis_weights, get_francis_weights_caal, run_francis, safe_inv_var	diag_fits.R, model_fit.R	diag_retrospective.R
diag_jitter.R	do_jitter, jitter_start_values	model_fit.R
diag_likelihood_profile.R	build_profile_map, check_analytic_q, check_profile_mirrors, do_likelihood_profile, weight_over_ages	model_fit.R, utils_setup.R
diag_osa_residuals.R	comp_osa_field_map, get_osa, index_osa_field_map, osa_default_bins, osa_keep_subset, osa_one_step_predict, plot_resids, run_external_comp_osa, run_internal_caal_osa, run_internal_comp_osa, run_internal_index_osa, run_internal_tag_osa, validate_osa_method	model_lik_at_age.R, model_lik_caal.R, model_lik_comps.R, model_lik_tags.R, utils_setup.R
diag_retrospective.R	do_retrospective, get_retrospective_relative_difference, truncate_yr	diag_francis.R, model_fit.R, utils_setup.R	plot_figures_tables.R
diag_runs_test.R	do_runs_test	nothing

Plotting

Script	Defines	Calls into	Called from
plot_figures_tables.R	get_at_age_fits_plot, get_biological_plot, get_catch_fits_plot, get_data_fitted_plot, get_idx_fits_plot, get_key_quants, get_nLL_plot, get_retrospective_plot, get_selex_plot, get_ts_plot, plot_all_basic, theme_sablefish	diag_fits.R, diag_retrospective.R, model_lik_at_age.R, projection.R, refpts_main.R, utils_setup.R

Shared helpers

Script	Defines	Calls into	Called from
utils_math.R	build_us_chol, build_us_corr, get_AR1_CorrMat, get_Constant_CorrMat, get_logistN_Sigma, Get_Natural_Cubic_Spline_Weights, mat_exp, rho_trans	nothing	model_distributions.R, model_lik_at_age.R, model_lik_comps.R, model_movement.R, model_priors_penalties.R, model_transition.R, setup_fishery_selectivity.R, setup_survey_selectivity.R, sim_closed_loop.R, sim_random_variates.R, sim_self_test.R
utils_option_reference.R	option_reference, rd_argument_text, rd_database, setup_stage_order	nothing
utils_postfit.R	get_model_rep_from_mcmc, get_optim_param_list, get_par_est_info, marg_AIC, post_optim_sanity_checks	nothing	sim_closed_loop.R, sim_self_test.R
utils_setup.R	assign_sel_block, bins_or_null, check_bin_map, check_comp_bins_min, check_comp_like_type, check_par_map_lengths, collapse_natmort_annual, collect_message, comp_like_type_options, convert_to_numeric, drop_empty_fitted_blocks, expand_fleet_ageing_error, expand_natmort_seasons, extend_years, fleet_ageing_error, fleet_bins_or_null, obs_bin_count, obs_len_bins, parse_bin_subset, parse_comp_bins, parse_idx_cov, resolve_sel_pen_wts, resync_fitted_blocks, safe_extract, seed_dbnrml_peak, set_data_indicator_unused, setup_dbnrml_raw, setup_dbnrml_startbin, setup_sel_bin_devs, setup_sel_norm_bins, setup_sel_sex_offset, truncate_years, use_starting_value, validate_selex_penalty, validate_selex_prior_types	nothing	diag_fits.R, diag_likelihood_profile.R, diag_osa_residuals.R, diag_retrospective.R, model_fit.R, model_init_naa.R, model_lik_comps.R, model_objective.R, plot_figures_tables.R, projection.R, refpts_main.R, refpts_msy.R, refpts_spr.R, setup_biologicals.R, setup_caal.R, setup_dimensions.R, setup_fishery_catch.R, setup_fishery_comps.R, setup_fishery_selectivity.R, setup_mapping.R, setup_movement.R, setup_recruitment.R, setup_sim_fleets.R, setup_survey_comps.R, setup_survey_selectivity.R, setup_tagging.R, setup_weighting.R, sim_closed_loop.R, sim_observations.R, sim_self_test.R
utils_year_fleet_spec.R	at_age_type_matrix, check_seas_agg_use, parse_seas_agg_spec, parse_year_fleet_spec	nothing	setup_fishery_catch.R, setup_fishery_comps.R, setup_mapping.R, setup_sim_fleets.R, setup_survey_comps.R

Package data

Script	Defines	Calls into	Called from
data_documentation.R	(documentation only)	nothing

Module walkthroughs

The file map above shows what calls what. It does not show why a module is split into the particular functions it has, which matters more once you are adding to one. Two modules below are worked through in full as examples of the pattern; most others in model_*.R/setup_*.R follow the same shape.

Growth

Growth is the mean length (and its spread) at age, built from up to six parameters (L1, L2, K, CV1, CV2, and rho under the Richards form) and turned into the size-age transition matrix every length composition, conditional age-at-length observation, and length-based selectivity reads.

Setup_Mod_Biologicals()                                    [setup_biologicals.R]
  validates growth_model/growth_tv_model/growth_semipar, populates $data and $par
  -> do_growth_mapping()                                    [setup_biologicals.R]
       builds $map for ln_growth_pars, ln_growth_devs, ln_growth_semipar_devs
        |
        v
SPoRC_rtmb()                                                [model_objective.R]
       pulls growth's ~20 arguments out of the RTMB frame by name
  -> growth_tv_type == "curve": Get_Growth() builds every year up front
                                                                [model_growth.R]
     growth_tv_type == "cohort": one year at a time, from inside the
                                  population's year-by-year loop, because the
                                  plus group's size depends on how many old vs.
                                  really-old fish are alive THAT year, which
                                  growth cannot know in advance
       -> Get_Growth_Year()                                    [model_growth.R]
            builds this year's growth, given the population's numbers at age
       -> growth_take_year()                                   [model_growth.R]
            copies that year's growth into the objective's own arrays
       -> mortality_year()                                     [model_objective.R]
            rebuilds that year's fishing/total mortality; only actually
            changes anything for a length-based gear, whose age-specific
            selectivity is read off growth's key, but runs every year
            regardless rather than special-casing age-based gears out
  -> (both) growth_selected_waa_year()                        [model_growth.R]
       called from the objective's mortality_year step, once per year, only for
       fleets flagged fish_waa_selected / srv_waa_selected
  -> ### Growth (Process Error): Get_PE_loglik()          [model_priors_penalties.R]
       penalizes ln_growth_devs and ln_growth_semipar_devs for departing from the
       process they are supposed to follow, the same function selectivity uses

Function	Why it is its own function
get_laa_curve()	The pure closed-form curve: mean length and spread at a vector of real ages, from the six parameters alone. No notion of years, fleets, or cohorts, so it is unit-testable against the textbook von Bertalanffy/Richards formula directly (test-model_growth.R does exactly that) without any model scaffolding around it.
growth_start_state()	The state a year starts from: get_laa_curve() at every integer age, with the plus group adjusted. Both growth_tv_types need a “year 1 initial state” and need it built identically, so it is factored out rather than duplicated in Get_Growth() and Get_Growth_Year().
growth_laa_at()	The within-year evaluator at one elapsed time e. Under "curve" growth every age is just get_laa_curve() at its real age; under "cohort" growth, ages already propagated have a length history the closed form does not know about, so they instead grow from L_beg via grow_increment(). One function, branching on cohort, rather than two, because everything else in it (the plus group, the CV, the semi-parametric deviation) is identical either way.
grow_increment()	The one piece of math with no dependency on ages, A1, or A2 at all: grow a length e further given K, Linf, rho. Reused in two different contexts, evaluating a fleet’s within-year timing (growth_laa_at) and advancing a cohort a full year (Get_Growth_Year), which is why it is not inlined into either.
growth_fill_year()	“Every fleet, timing, and spawning point in one year,” given a start-of-year state: walks each distinct t_fish/t_srv/t_spawn value once (deduplicated), builds the key via get_alk(), and writes it into every fleet that reads at that timing. Both Get_Growth() (looping over years on the “curve” path) and Get_Growth_Year() (one year at a time on the “cohort” path) call it with a different start-of-year state, so the fleet-timing residual tracking is written once.
plus_group_size()	The survivorship-weighted mixture for a plus group’s mean length. Kept out of get_laa_curve() because it needs Linf and the curve’s own last-age value together, plus the growth_plus_group flag; get_laa_curve()’s job is only ever the raw curve.
get_growth_pars_year()	Applies a year’s time-varying deviations (log or logit link) to the base parameters once, before anything else runs, so growth_start_state(), growth_laa_at(), and growth_fill_year() never have to know deviations exist; they only ever see “this year’s realized parameters.”
do_growth_mapping()	Setup side: builds every growth map (parameters, time-varying deviations, semi-parametric surface) in one place, called from Setup_Mod_Biologicals()’s # Mapping Options section next to do_natmort_mapping(), so that function’s own body stays validate-then-hand-off like every other Setup_Mod_*.

Two separate things are going on here, worth telling apart.

Growth has to run inside the population loop at all, one year at a time, only because of the plus group. Under growth_tv_type = "cohort", the plus group’s mean size is a mix of the fish that were already old and the fish that just grew into being old, weighted by how many of each there are, and that count is only known once the population loop has actually reached that year. This is true whatever selectivity looks like: even a model with plain age-based selectivity still needs growth for weight at age, spawning biomass, and length compositions, and still has this same plus-group problem. growth_tv_type = "curve" has no such problem (nothing has a length history from year to year) and so builds every year’s growth up front, before the population loop even starts.

Rebuilding that year’s mortality right alongside growth, though, is specifically about length-based selectivity. get_population_projection() (in model_population_dynamics.R) takes an argument that lets it call back out to the objective once a year; model_objective.R uses it to run growth for that year, copy the results in, and then also rerun that year’s fishing and total mortality before handing control back to the population loop. That last step only changes anything when a fleet’s selectivity is defined on length rather than age, since that is the one case where a fleet’s age-specific selectivity is read off growth’s key and so moves whenever growth does. Under purely age-based selectivity the rerun leaves mortality exactly as it already was; the code does not bother telling the two cases apart, since redoing an unchanged calculation is cheap and the alternative is a second, more complicated code path only for a case that costs nothing to just repeat.

Selectivity (fishery, retention, survey)

A model has up to three kinds of selectivity: the fishery’s, retention’s (what fraction of what the fishery catches is kept vs. thrown back), and the survey’s. All three are set up and evaluated by the exact same code, run three separate times with a short label ("fish", "ret", "srv") telling it which fleet count and which set of fields to read and write. This is not three similar-looking implementations; it is one implementation called three times, which is why retention setup (Setup_Mod_Retsel()) simply calls the same functions fishery setup (Setup_Mod_Fishsel_and_Q()) does.

Setup_Mod_Fishsel_and_Q()/Setup_Mod_Retsel()/Setup_Mod_Srvsel_and_Q()
                                              [setup_fishery_selectivity.R / setup_survey_selectivity.R]
  validate blocks, functional form per block, time-varying spec
  -> do_fixed_sel_pars_mapping(..., "fish"/"ret"/"srv")            [setup_mapping.R]
       maps the block-level functional-form parameters (b50, slope, double normal's 6, ...)
  -> do_sel_pe_pars_mapping(..., "fish"/"ret"/"srv")                [setup_mapping.R]
       maps the process-error settings for whichever time-varying form is chosen
  -> do_sel_devs_mapping(..., "fish"/"ret"/"srv")                   [setup_mapping.R]
       maps the year-by-year deviations themselves
        |
        v
SPoRC_rtmb()                                                      [model_objective.R]
  ## Selectivity: Get_Selex_Array(), once for each of the three     [model_selectivity.R]
       works out which block and which deviation applies to a given
       region/year/fleet, then hands the actual math off to:
    -> Get_Selex()                                                 [model_selectivity.R]
         given one set of parameters and a vector of bins, the selectivity at
         each bin; knows nothing about years, blocks, or fleets
  ### Selectivity (Penalty): Get_PE_loglik(), once for each of the three
                                                                [model_priors_penalties.R]
       penalizes the year-by-year deviations for departing from whatever
       process they are supposed to follow (iid, random walk, ...); the same
       penalty function growth uses
  ### Selectivity Smoothness (Penalty)                             [model_objective.R]
       a separate penalty just for the bicubic spline form, since a smooth
       surface is not "deviations from a base curve" the way the others are
  ### Selectivity (Prior) / Parameter Centering (Penalty)
    -> get_selex_prior() / get_selex_fixed_penalty()            [model_priors_penalties.R]

Function	Why it is its own function
do_fixed_sel_pars_mapping(), do_sel_pe_pars_mapping(), do_sel_devs_mapping()	Three separate functions because a fleet can turn each piece on independently: the curve’s own parameters, whether it varies over time and under what process, and the actual deviation values. A fleet might hold the curve fixed with no deviations, vary it under one process with the process’s own settings fixed, or estimate both together. Keeping the three apart means each one’s sharing options do not have to be reconciled against the other two inside a single function.
Get_Selex_Array()	The only place that knows about SPoRC’s blocks, year-by-year deviations, and fleet counts. Works out which block and which deviation apply to a given region/year/fleet, then hands off to Get_Selex().
Get_Selex()	Given one functional form and its parameters, the selectivity at a vector of bins, nothing else. Because it does not know about years, blocks, or fleets, test-model_selectivity.R can check every functional form directly against its formula without building a whole model around it, and Get_Selex_Array()’s only job is the block/year/fleet residual tracking around it.
Get_PE_loglik()	Lives in model_priors_penalties.R, not model_selectivity.R or model_growth.R, because it does not need to know which one is calling it: give it a deviation array, its map, and a code for which process (iid, random walk, …) it is supposed to follow, and it penalizes departures from that process. Growth and selectivity therefore call the same function with the same five arguments.

The same shape shows up elsewhere too

The setup side of this pattern is used everywhere in the package: every Setup_Mod_* function ends by handing its parameter blocks to one or more do_*_mapping helpers (do_RecDevs_mapping() for recruitment, do_conv_tag_fish_reporting_pars_mapping() for tagging, and so on). Each one stays in the topic’s own setup_*.R file unless more than one file needs it, in which case it moves to the shared setup_mapping.R.

The penalizing side is not as uniform. Growth and selectivity’s year-by-year deviations both go through the same Get_PE_loglik(). Movement’s own deviations (move_devs) instead have their own penalty function, Get_move_PE_loglik(), sitting right next to Get_PE_loglik() in model_priors_penalties.R rather than sharing it, because a movement deviation has to know about which regions are adjacent to which and what kind of movement model is in use, which Get_PE_loglik() has no way to be told about. Tagging’s reporting rate is different again: it is a single estimated number rather than something that varies by year or bin, so it gets a plain prior (get_tagrep_prior()) instead of a deviation series at all, since it is a single estimated rate rather than something that varies by year or bin. When adding a new time-varying process, the question to ask is which of these three shapes it actually is, and whether it truly fits Get_PE_loglik()’s five arguments or needs a sibling function the way movement’s does, rather than assuming growth and selectivity’s choice generalizes.

How the code is layered

The code is structured as follows and interacts in a hopefully intuitive fashion. Reading it as layers, lowest first:

1. utils_math.R, utils_setup.R, utils_postfit.R, setup_checks.R, model_transition.R, model_distributions.R, model_osa.R, model_precision.R. These call nothing else in the package.
2. The model modules (model_recruitment.R, model_biomass.R, model_init_naa.R, model_movement.R, model_selectivity.R, model_obs_*.R, model_lik_*.R, model_priors_penalties.R, model_population_dynamics.R).
3. model_objective.R, which calls only downward into layer 2.
4. The post fit and simulation module: reference points, projection, diagnostics, plotting, operating model.

Tests

Test files in tests/testthat/ hold the same prefixes as R/, so the tests for a given source file sort next to each other and the name says what is under test rather than which stock the test setup happens to use.

Prefix	Files	What it covers
test-setup_*	23	Input building: the map factor builders and the Setup_Mod_* validation
test-model_*	32	One objective function module each: selectivity, movement, transition, observation models, likelihoods, distributions
test-utils_*	7	Shared numerical helpers
test-sim_*	5	Operating model, including simulate then refit self tests
test-refpts_*	12	SPR and MSY solvers, one file per spatial structure
test-projection_*	5	Forward projection off a fitted model
test-diag_*	15	Post fit diagnostics: retrospectives and OSA residuals
test-integration_*	4	Cross cutting agreement between the objective, the reference points and the operating model
test-regression_*	18	End to end fits pinning obj$rep and nll for known configurations

That is 168 test files in total.

Two groups are worth calling out. The test-regression_* files pin obj$rep and nll values for known configurations against bundled example fits, so they are the ones most likely to catch an accidental change in the objective function’s numerics. The test-integration_move_timing_* files are the tightest constraint on model_transition.R and everything built on it: they check that the reference points, the forward projection and the operating model all agree under each movement timing, to a tolerance that leaves no room for a sequencing mistake.

Extending the model

Adding a new process, fleet type or data source interacts with a predictable set of places.

1. Setup. Add or extend a Setup_Mod_* function to accept the new spec, validate it, and append the results to input_list$data, $par and $map. If parameters need fixing or sharing, add a do_*_mapping helper in the same file, or use the shared builders in setup_mapping.R if the pattern already exists.
2. Objective. Add a ## Section in model_objective.R that consumes the new entries and contributes to jnll or nll. Put it in the section it belongs to (transform, observation model, or likelihood and prior) rather than appending at the end. If the logic runs to more than a few lines, extract it into a model_*.R module instead of growing the objective inline.
3. Simulation. If the process should be simulateable, add the matching Setup_Sim_* inputs and the generation logic in sim_population.R or sim_observations.R.
4. Post fit. Expose derived output through a Get_* function if other code needs to reuse it, and through plot_figures_tables.R or diag_fits.R if it needs to be seen.
5. Tests. Add a targeted test near the feature, and check whether the regression tests need updated reference values.
6. Vignette. If the feature is user facing, document it in the relevant lettered vignette rather than only in code comments.

For the mechanics of getting a change in (branch naming, running tests locally, opening a PR) see the Contributing guide.
