Case Study: Eastern Bering Sea Walleye Pollock

f_single_region_ebs_pollock_case_study.Rmd

Overview

This case study reproduces the 2024 eastern Bering Sea walleye pollock assessment in SPoRC. Every structural choice below follows the assessment rather than SPoRC’s defaults, and the result is an exact bridge: spawning biomass and recruitment agree with the ADMB model to within 4×10−64\times10^{-6} percent, and the joint negative log likelihood is unchanged between the two.

The model is single region, single sex, single season, with one fishery fleet and four survey indices:

Index Source Likelihood Selectivity
Fishery CPUE Early fishery catch rates, 1965–1976 Normal Fishery
Bottom trawl (BTS) Shelf bottom trawl survey, 1982– Multivariate normal Logistic, time varying, with a free age 1
Acoustic trawl (ATS) Acoustic trawl survey, 1994– Lognormal Non-parametric, random walk
Vessel of opportunity (AVO) Acoustic backscatter, 2006– Normal Shared with the acoustic survey
Acoustic age 1 Age 1 numbers from the acoustic survey Lognormal Shared with the acoustic survey

The last of these is not a fifth survey. The pollock assessment fits the acoustic survey’s age 1 abundance as its own likelihood component (ats_age1_like) with its own catchability, separate from the acoustic biomass index and from its age composition. SPoRC attaches one index to one survey fleet, so reproducing that component requires a fourth survey fleet restricted to age 1.

Everything the case study needs, including the ADMB output it is compared against, ships with the package in sgl_rg_ebswp_data.

library(SPoRC)
library(dplyr)
library(ggplot2)
data("sgl_rg_ebswp_data")

dat <- sgl_rg_ebswp_data
yrs <- dat$years
n_yrs <- length(yrs)
n_ages <- length(dat$ages)
n_srv <- dat$n_srv_fleets

The object has three kinds of content: the model inputs (ObsCatch, WAA, ObsSrvIdx, and so on), the ADMB maximum likelihood estimate in dat$mle, used both as a starting point and to verify the objective before any optimization, and the ADMB output in dat$admb, which is the comparison target.

names(dat$mle)
#>  [1] "Fmort"        "Rec"          "log_initdevs" "steepness"    "ln_global_R0"
#>  [6] "pars_fsh"     "devs_fsh"     "pars_ats"     "devs_ats"     "bts_b50_dev"
#> [11] "bts_k_dev"    "bts_age1_dev"
names(dat$admb)
#>  [1] "SSB"       "Rec"       "NAA"       "Fmort"     "sel_fsh"   "sel_bts"
#>  [7] "sel_ats"   "eb_ats"    "pred_avo"  "pred_cpue" "tot_like"

Model dimensions

Because the model is single region and single sex, the population, region, season and sex subscripts used in the model equations all collapse to one, and are dropped from the notation below.

input_list <- Setup_Mod_Dim(
  years = yrs,
  ages = dat$ages,
  lens = NA,
  n_regions = dat$n_regions,
  n_sexes = dat$n_sexes,
  n_fish_fleets = dat$n_fish_fleets,
  n_srv_fleets = n_srv,
  n_seas = dat$n_seas,
  n_pop = dat$n_pop,
  natal_region = dat$natal_region,
  verbose = FALSE
)

Recruitment

Pollock recruitment follows a Ricker stock recruit relationship with a one year lag, so recruitment in year yy depends on spawning biomass in year y−1y-1:

Recy=αSSBy−1exp⁡(−βSSBy−1)exp⁡(ϵyRec−σR22)\text{Rec}_{y} = \alpha \text{SSB}_{y-1} \exp\left(-\beta \text{SSB}_{y-1}\right)\exp\left(\epsilon_{y}^{\text{Rec}} - \dfrac{\sigma_{R}^{2}}{2}\right)

with α\alpha and β\beta reparameterized through steepness hh and unfished recruitment R0R_0. Steepness is estimated under a beta prior. In the 2024 assessment that prior sits on the unrescaled (0,1)(0,1) support and is symmetric, so its center is 0.50.5 rather than the 0.60.6 its steepnessprior constant declares:

h∼Beta(μ=0.5,σ=0.09)h \sim \text{Beta}\left(\mu = 0.5,\ \sigma = 0.09\right)

Three separate penalties act on recruitment, each with its own variance. The stock recruit residuals are penalized over the years 1978 to 2022, excluding 1979:

ℓRec=∑y∈𝒴SR(ϵyRec)22σR2,σR=1\ell^{\text{Rec}} = \sum_{y \in \mathcal{Y}^{\text{SR}}} \dfrac{\left(\epsilon_{y}^{\text{Rec}}\right)^{2}}{2\sigma_{R}^{2}},\qquad \sigma_{R} = 1

The initial numbers at age have weight 0.10.1 and the recruitment level weight 11, which map onto σ=1/2w\sigma = 1/\sqrt{2w}. The second recruitment statement is a sum of squares on all log recruitments about their own mean:

ℓRecLevel=∑y(logRecy−log⁡Rec¯)22σ2,σ=1/2\ell^{\text{RecLevel}} = \sum_{y} \dfrac{\left(\log \text{Rec}_{y} - \overline{\log \text{Rec}}\right)^{2}}{2\sigma^{2}},\qquad \sigma = 1/\sqrt{2}

Initial numbers at age are free parameters (init_age_strc = 4) rather than derived from an equilibrium, and their penalty is centered on their own mean.

inv_steepness <- function(s) qlogis((s - 0.2) / 0.8)

input_list <- Setup_Mod_Rec(
  input_list = input_list,
  # SR_ref_yr points spawning biomass per recruit at terminal year biologicals,
  # which is what the assessment's unfished spawning biomass uses.
  rec_model = "ricker_rec",
  rec_lag = 1,
  SR_ref_yr = n_yrs,
  # do_rec_bias_ramp = 0 sets the ramp to 1 throughout, so the recruitment
  # penalty is centered on -sigmaR^2/2, which is the assessment's +sigmaRsq/2 on the
  # residual.
  do_rec_bias_ramp = 0,
  sigmaR_switch = 1,
  sigmaR_spec = "fix",
  # The stock recruit residuals use sigr, fixed at 1. The initial ages have
  # weight 0.1, which is sigma = 1/sqrt(2w).
  ln_sigmaR = array(c(log(1 / sqrt(0.2)), log(1)), dim = c(2, 1, 1)),
  init_age_strc = 4,
  equil_init_age_strc = 2,
  RecDevs_pen_center = "fixed",
  InitDevs_pen_center = "own_mean",
  ln_global_R0 = dat$mle$ln_global_R0,
  t_spawn = (4 - 1) / 12,
  use_rinit = 0,
  dont_est_recdev_last = 0,
  steepness_h = array(inv_steepness(dat$mle$steepness), dim = c(1, 1)),
  h_spec = "est_shared_pop_r",
  Use_h_prior = 1,
  h_prior = data.frame(pop = 1, region = 1, mu = 0.5, sd = 0.09, lb = 0, ub = 1),
  Use_rec_level_pen = 1,
  rec_level_pen_sigma = 1 / sqrt(2),
  rec_level_pen_center = "own_mean"
)

Biological dynamics

Natural mortality is fixed and age specific:

Ma={0.9,a=10.45,a=20.3,a≥3M_{a} = \begin{cases} 0.9, & a = 1\\ 0.45, & a = 2\\ 0.3, & a \geq 3 \end{cases}

The assessment has a different weight at age matrix for spawning biomass, for catch, and for each survey index, which SPoRC supports through WAA, WAA_fish and WAA_srv. Spawning biomass is therefore

SSBy=∑aNy,aexp⁡(−tspawnZy,a)WAAy,aMatAAa\text{SSB}_{y} = \sum_{a} N_{y,a}\exp\left(-t^{\text{spawn}} Z_{y,a}\right) \text{WAA}_{y,a}\,\text{MatAA}_{a}

with spawning in March, tspawn=3/12t^{\text{spawn}} = 3/12.

Two composition conventions matter here. The 2024 assessment weights the multinomial by the raw observed composition and places its constant inside the logarithm only, which is comp_const_obs = 0. SPoRC’s default instead weights by obs+const\text{obs} + \text{const}, which is the unbiased choice since its stationary point is p=obsp = \text{obs}, but it is a different model: on this bridge it moves estimated spawning biomass by a median of 8.8 percent.

fix_natmort <- array(0, dim = c(1, 1, n_yrs, n_ages, 1))
fix_natmort[, , , 1, ] <- 0.9
fix_natmort[, , , 2, ] <- 0.45
fix_natmort[, , , -c(1, 2), ] <- 0.3

input_list <- Setup_Mod_Biologicals(
  input_list = input_list,
  WAA = dat$WAA,
  WAA_fish = dat$WAA_fish,
  WAA_srv = dat$WAA_srv,
  MatAA = dat$MatAA,
  fit_lengths = 0,
  M_spec = "fix",
  Fixed_natmort = fix_natmort,
  # addtocomp must stay strictly positive, since at zero the offset term
  # evaluates 0*log(0).
  addtocomp = 1e-3,
  comp_const_obs = 0,
  addtosrvidx = 0.01,
  addtofishidx = 0
)

Movement and tagging

The model is single region, so movement is an identity matrix and no tagging data are used. Both still have to be declared.

input_list <- Setup_Mod_Movement(
  input_list = input_list,
  use_fixed_movement = 1,
  Fixed_Movement = NA,
  do_recruits_move = 0
)

input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

Catch and fishing mortality

The 2024 assessment has no mean fishing mortality parameter: log⁡Fy\log F_y is a free annual value penalized about its own mean. In SPoRC that is ln_F_mean_spec = "fix", which pins the mean at zero and maps it off so the deviations have all of log⁡F\log F, together with Fdev_pen_center = "own_mean":

log⁡Fy=μFsh+ϵyF,μFsh≡0\log F_{y} = \mu^{\text{Fsh}} + \epsilon_{y}^{F},\qquad \mu^{\text{Fsh}} \equiv 0

ℓF=∑y(ϵyF−ϵF¯)22σF2,σF=1/2\ell^{F} = \sum_{y}\dfrac{\left(\epsilon_{y}^{F} - \overline{\epsilon^{F}}\right)^{2}}{2\sigma_{F}^{2}},\qquad \sigma_{F} = 1/\sqrt{2}

Catch is fit lognormally with a fixed standard deviation of 0.050.05.

input_list <- Setup_Mod_Catch_and_F(
  input_list = input_list,
  ObsCatch = dat$ObsCatch,
  UseCatch = dat$UseCatch,
  Use_F_pen = 1,
  Fdev_model = "iid",
  Fdev_pen_center = "own_mean",
  ln_F_mean_spec = "fix",
  sigmaF_spec = "fix",
  ln_sigmaF = array(log(1 / sqrt(2)), dim = c(1, 1, 1)),
  sigmaC_spec = "fix",
  ln_sigmaC = array(log(0.05), dim = c(1, n_yrs, 1, 1))
)

Fishery index and compositions

The early fishery CPUE series covers twelve years and is fit on the arithmetic scale with a normal likelihood. Fishery age compositions are multinomial.

input_list <- Setup_Mod_FishIdx_and_Comps(
  input_list = input_list,
  ObsFishIdx = dat$ObsFishIdx,
  ObsFishIdx_SE = dat$ObsFishIdx_SE,
  UseFishIdx = dat$UseFishIdx,
  ObsFishAgeComps = dat$ObsFishAgeComps,
  UseFishAgeComps = dat$UseFishAgeComps,
  ISS_FishAgeComps = dat$ISS_FishAgeComps,
  ObsFishLenComps = array(NA_real_, dim = c(1, n_yrs, 1, length(input_list$data$lens), 1, 1)),
  UseFishLenComps = array(0, dim = c(1, n_yrs, 1, 1)),
  ISS_FishLenComps = array(0, dim = c(1, n_yrs, 1, 1, 1)),
  fish_idx_type = "biom",
  FishIdx_LikeType = "normal",
  FishAgeComps_LikeType = "Multinomial",
  FishLenComps_LikeType = "none",
  FishAgeComps_Type = "agg_Year_1-terminal_Fleet_1",
  FishLenComps_Type = "none_Year_1-terminal_Fleet_1"
)

Survey indices and compositions

Each survey index has its own error structure. The bottom trawl index is fit with a full covariance matrix, which enters as

ℓBTS=12(𝐈obs−𝐈pred)⊤𝚺−1(𝐈obs−𝐈pred)\ell^{\text{BTS}} = \tfrac{1}{2}\left(\mathbf{I}^{\text{obs}} - \mathbf{I}^{\text{pred}}\right)^{\!\top}\mathbf{\Sigma}^{-1}\left(\mathbf{I}^{\text{obs}} - \mathbf{I}^{\text{pred}}\right)

with 𝚺\mathbf{\Sigma} supplied through SrvIdx_Cov. The acoustic index and the age 1 index are lognormal, and the vessel of opportunity index is normal.

Two indexing conventions are needed here. srv_idx_ages restricts fleet 4 to age 1, which is what makes it the age 1 index rather than a biomass index. And the 2024 assessment normalizes the acoustic compositions over ages 2–15 only, which is SrvAgeComps_bins.

input_list <- Setup_Mod_SrvIdx_and_Comps(
  input_list = input_list,
  ObsSrvIdx = dat$ObsSrvIdx,
  ObsSrvIdx_SE = dat$ObsSrvIdx_SE,
  UseSrvIdx = dat$UseSrvIdx,
  ObsSrvAgeComps = dat$ObsSrvAgeComps,
  ISS_SrvAgeComps = dat$ISS_SrvAgeComps,
  UseSrvAgeComps = dat$UseSrvAgeComps,
  ObsSrvLenComps = array(NA_real_, dim = c(1, n_yrs, 1, length(input_list$data$lens), 1, n_srv)),
  UseSrvLenComps = array(0, dim = c(1, n_yrs, 1, n_srv)),
  ISS_SrvLenComps = array(0, dim = c(1, n_yrs, 1, 1, n_srv)),
  srv_idx_type = c("biom", "biom", "biom", "abd"),
  # Fleet 4 is the acoustic survey's age 1 abundance.
  srv_idx_ages = list(NULL, NULL, NULL, 1),
  SrvAgeComps_bins = list(NULL, 2:15, NULL, NULL),
  SrvIdx_LikeType = c("mvn", "lognormal", "normal", "lognormal"),
  SrvIdx_Cov = list(dat$SrvIdx_Cov, NULL, NULL, NULL),
  SrvAgeComps_LikeType = c("Multinomial", "Multinomial", "none", "none"),
  SrvLenComps_LikeType = rep("none", n_srv),
  SrvAgeComps_Type = c("agg_Year_1-terminal_Fleet_1", "agg_Year_1-terminal_Fleet_2",
                       "none_Year_1-terminal_Fleet_3", "none_Year_1-terminal_Fleet_4"),
  SrvLenComps_Type = paste0("none_Year_1-terminal_Fleet_", 1:n_srv),
  t_srv = array(c(0.5, 0.5, 0, 0.5), dim = c(1, 1, n_srv))
)

Fishery selectivity and catchability

Fishery selectivity is non-parametric on the log scale, with one coefficient per age up to age 11 and a flat tail shared across ages 12–15, evolving as a random walk:

log⁡Sely,aFsh=θa+δy,a,δy,a=δy−1,a+ηy,a,ηy,a∼N(0,σsel2)\log \text{Sel}_{y,a}^{\text{Fsh}} = \theta_{a} + \delta_{y,a},\qquad \delta_{y,a} = \delta_{y-1,a} + \eta_{y,a},\quad \eta_{y,a}\sim N\left(0,\sigma_{\text{sel}}^{2}\right)

fishsel_rw_init_sigma = NA makes the walk start at zero under its own sigma rather than free, because norm2(sel_devs_fsh) in the 2024 assessment weights every increment equally, including the first.

input_list <- Setup_Mod_Fishsel_and_Q(
  input_list = input_list,
  fish_sel_model = "nonparlog_Fleet_1",
  cont_tv_fish_sel = "rw_Fleet_1",
  fish_sel_blocks = "none_Fleet_1",
  fish_q_blocks = "none_Fleet_1",
  fish_fixed_sel_pars_spec = "est_all",
  fish_q_spec = "est_all",
  fishsel_pe_pars_spec = "fix",
  fish_sel_devs_spec = "est_all",
  fishsel_rw_init_sigma = NA,
  # Nested [[fleet]][[block]] and then the bin groups. Ages 12-15 share one
  # coefficient, and the deviations share the same grouping so they are not
  # estimated on bins with no free coefficient.
  fish_sel_nonpar_est_bins = list(list(list(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12:15))),
  fishsel_devs_shared_bins = list(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12:15)
)

Survey selectivity and catchability

The three survey selectivity forms differ. The bottom trawl survey is logistic with a year specific midpoint and slope plus a free annual age 1 value:

Sely,aBTS=11+exp⁡(−ky(a−a50,y)),a≥2\text{Sel}_{y,a}^{\text{BTS}} = \dfrac{1}{1 + \exp\left(-k_{y}\left(a - a_{50,y}\right)\right)},\qquad a \geq 2

In the 2024 assessment the slope and midpoint are the deviations; there is no base pair, so keeping a base alongside free deviation levels would be exactly redundant. That is handled in the mapping section below.

The acoustic survey is non-parametric with coefficients over ages 2–8 and a flat tail, evolving as a random walk, and the vessel of opportunity index shares both its coefficients and its deviations. Catchability is arithmetic for the trawl survey, geometric for the age 1 index, and estimated for the other two.

Because qq enters only as a multiplicative scalar on the predicted index, a fleet that needs no prior on it can have it solved for rather than searched over. Writing Iypred=qUyI^{\text{pred}}_{y} = q\,U_{y} for the unscaled index UyU_{y}, the lognormal maximum likelihood value of qq at any given value of the remaining parameters is the geometric mean of the observed to predicted ratio:

q̂=exp⁡(1n∑y[logIyobs−logUy])\hat{q} = \exp\left(\dfrac{1}{n}\sum_{y}\left[\log I^{\text{obs}}_{y} - \log U_{y}\right]\right)

which is srv_q_type = "geo". The expression above is the exact maximum likelihood value only when the index standard errors are constant over the fitted years, which holds for the age 1 index.

"arith" is the corresponding ratio of means, ∑yIyobs/∑yUy\sum_{y} I^{\text{obs}}_{y} / \sum_{y} U_{y}. It is what the 2024 assessment applies to the trawl survey and is used here for that reason.

srvsel_pe_wt = c(0, 0, 0, 0) is what keeps the survey deviations from being constrained twice. SPoRC normally gives selectivity deviations a distribution of their own, an iid or random walk density evaluated with the process error sigmas, and adds that to the joint negative log-likelihood. The 2024 assessment does no such thing for its surveys. It constrains them with the explicit shape penalties set in the weighting section below, which act on log selectivity over restricted age ranges and with a fixed predecessor rather than on the deviations themselves. A weight of zero makes the objective skip the process error likelihood for ln_srvsel_devs entirely, so the deviations remain estimated parameters but enter the objective only through the data and those penalties. This is also why srvsel_pe_pars_spec is "fix": with the weight at zero the sigmas never reach the objective and would have no gradient.

The fishery runs the other way round. Its norm2(sel_devs_fsh) term is a random walk density up to a constant, so fishsel_pe_wt is left at its default of one and fishsel_pe_pars is instead fixed at log⁡(1/2)\log(1/\sqrt{2}) so that 1/(2σ2)=11/(2\sigma^{2}) = 1 reproduces the unweighted sum of squares.

The weight applies only to the main deviations. The bin override deviations have their own process error, which no weight multiplies, so the trawl survey’s free annual age 1 value keeps its random walk density with the sigma fixed to give the assessment’s weight of 8.

input_list <- Setup_Mod_Srvsel_and_Q(
  input_list = input_list,
  srv_sel_model = c("logist1_Fleet_1", "nonparlog_Fleet_2", "nonparlog_Fleet_3", "logist1_Fleet_4"),
  cont_tv_srv_sel = c("iid_Fleet_1", "rw_Fleet_2", "rw_Fleet_3", "none_Fleet_4"),
  srv_sel_blocks = paste0("none_Fleet_", 1:n_srv),
  srv_q_blocks = paste0("none_Fleet_", 1:n_srv),
  srv_fixed_sel_pars_spec = c("est_all", "est_all", "est_shared_f_2", "fix"),
  srv_sel_devs_spec = c("est_all", "est_all", "est_shared_f_2", "fix"),
  srvsel_pe_pars_spec = rep("fix", n_srv),
  srv_q_spec = rep("est_all", n_srv),
  srv_q_type = c("arith", "est", "est", "geo"),
  srvsel_pe_wt = c(0, 0, 0, 0),
  srv_sel_nonpar_est_bins = list(NULL,
                                 list(list(1, 2, 3, 4, 5, 6, 7, 8:15)),
                                 list(list(1:2, 3, 4, 5, 6, 7, 8:15)),
                                 NULL),
  srvsel_devs_shared_bins = list(1, 2, 3, 4, 5, 6, 7, 8:15),
  # the trawl survey's age 1 is a free annual value, not the logistic's
  srv_sel_bin_dev_bins = list(1, NULL, NULL, NULL),
  cont_tv_srvsel_bin_devs = c("rw", "none", "none", "none"),
  t_srv = array(c(0.5, 0.5, 0, 0.5), dim = c(1, 1, n_srv))
)

Weighting and selectivity penalties

Beyond the data weights, the 2024 assessment has a set of shape penalties on selectivity. The fishery has a dome penalty over ages 6–12, curvature at the first year and every change year, and a random walk penalty whose standard deviation is 0.50.5 except in two years where it opens to 1.91.9. The trawl survey has a year to year difference penalty over ages 3–14, and the acoustic survey a dome penalty over ages 5–8:

ℓSel=wdome∑y∑a∈𝒜[max(0,logSely,a−logSely,a+1)]2+∑ywycurve∥Δa2logSely,⋅∥2+∑ywyrw∥logSely,⋅−logSely−1,⋅∥2\ell^{\text{Sel}} = w^{\text{dome}}\sum_{y}\sum_{a \in \mathcal{A}}\left[\max\left(0, \log\text{Sel}_{y,a} - \log\text{Sel}_{y,a+1}\right)\right]^{2} + \sum_{y} w_{y}^{\text{curve}}\left\|\Delta^{2}_{a}\log\text{Sel}_{y,\cdot}\right\|^{2} + \sum_{y} w_{y}^{\text{rw}}\left\|\log\text{Sel}_{y,\cdot} - \log\text{Sel}_{y-1,\cdot}\right\|^{2}

The stock recruit residual weights select the years the Ricker penalty applies to, and the terminal acoustic age 1 observation is dropped.

Wt_Rec <- array(0, dim = dim(input_list$par$ln_RecDevs))
Wt_Rec[1, 1, which(yrs %in% dat$yrs_srr)] <- 1
Wt_SrvIdx <- array(1, dim = c(1, n_yrs, 1, n_srv))
Wt_SrvIdx[1, max(which(yrs %in% dat$yrs_ats)), 1, 4] <- 0

yrs_ch_f <- dat$yrs_sel_ch_fsh
sig_ch <- rep(0.5, length(yrs_ch_f))
sig_ch[55:56] <- 1.9
curve_wt <- rep(0, n_yrs)
curve_wt[1] <- 1 / length(yrs_ch_f)
curve_wt[match(yrs_ch_f, yrs)] <- 1 / length(yrs_ch_f)
rw_wt <- rep(0, n_yrs)
rw_wt[match(yrs_ch_f, yrs)] <- 1 / (2 * sig_ch^2)

fish_pen_wts <- list(smooth_bin_diff = 3, smooth_bin_curve = curve_wt,
                     smooth_yr_diff = rw_wt, normalize = FALSE,
                     bin_range = list(smooth_bin_diff = c(6, 12)))

# The trawl difference runs from 1982, whose predecessor the assessment fixes at one.
bts_rw <- rep(0, n_yrs)
bts_rw[match(1982:2024, yrs)] <- 2
yrs_ch_a <- dat$yrs_sel_ch_ats
ats_curve <- rep(0, n_yrs)
ats_curve[match(yrs_ch_a, yrs)] <- 1
ats_rw <- rep(0, n_yrs)
ats_rw[match(yrs_ch_a, yrs)] <- 1 / (2 * 0.138^2)
# The acoustic shape penalty applies only from the survey's first year.
ats_shape <- rep(0, n_yrs)
ats_shape[match(1994:2024, yrs)] <- 1

srv_pen_wts <- list(
  list(smooth_yr_diff = bts_rw, normalize = FALSE, yr_diff_ref = 0,
       bin_range = list(smooth_yr_diff = c(3, 14))),
  list(smooth_bin_diff = ats_shape, smooth_bin_curve = ats_curve,
       smooth_yr_diff = ats_rw, normalize = FALSE,
       bin_range = list(smooth_bin_diff = c(5, 8))),
  # the vessel of opportunity index shares the acoustic curve, so it is not
  # penalized twice
  list(),
  list()
)

input_list <- Setup_Mod_Weighting(
  input_list = input_list,
  fish_sel_pen_wts = fish_pen_wts,
  srv_sel_pen_wts = srv_pen_wts,
  Wt_Catch = 1,
  Wt_FishIdx = 1,
  Wt_SrvIdx = Wt_SrvIdx,
  Wt_Rec = Wt_Rec,
  Wt_Init_Rec = 1,
  Wt_F = 1,
  Wt_Tagging = 0,
  Wt_FishAgeComps = array(1, dim = c(1, n_yrs, 1, 1, 1)),
  Wt_FishLenComps = array(1, dim = c(1, n_yrs, 1, 1, 1)),
  Wt_SrvAgeComps = array(1, dim = c(1, n_yrs, 1, 1, n_srv)),
  Wt_SrvLenComps = array(1, dim = c(1, n_yrs, 1, 1, n_srv))
)

data <- input_list$data
parameters <- input_list$par
mapping <- input_list$map

Mapping

The setup functions already leave a parametric fleet’s unused deviation slots and a fleet with no time variation unmapped. What remains is the data window, since deviations before a survey exists have nothing to inform them, and the deviation groupings.

SPoRC parameterizes selectivity deviations as levels while the 2024 assessment uses increments. The two are equivalent, but the first year’s level is redundant with the coefficients and has to be kept at zero, and bins within a group must move together. est_shared_b would share a group across years as well, making selectivity time invariant, so the maps are built explicitly.

i_bts_all <- which(yrs >= 1982)
map_srvdev <- array(as.numeric(mapping$ln_srvsel_devs), dim = dim(parameters$ln_srvsel_devs))
map_srvdev[1, -i_bts_all, , 1, 1] <- NA
mapping$ln_srvsel_devs <- factor(map_srvdev)
data$map_ln_srvsel_devs <- map_srvdev

build_dev_map <- function(dim_arr, fleet, dev_years, groups) {
  m <- array(NA_real_, dim = dim_arr)
  k <- 1
  for(y in dev_years) {
    for(g in groups) {
      m[1, y, g, 1, fleet] <- k
      k <- k + 1
    }
  } # end y loop
  m
}

# The assessment applies sel_devs_fsh(ii) going from yrs_ch_fsh(ii) to the NEXT year, so
# the 59 changes land on 1966:2024 and log selectivity is identical in 1964 and
# 1965.
grp_f <- list(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12:15)
map_fishdev <- build_dev_map(dim(parameters$ln_fishsel_devs), 1, match(1966:2024, yrs), grp_f)
mapping$ln_fishsel_devs <- factor(map_fishdev)
data$map_ln_fishsel_devs <- map_fishdev

# The acoustic survey's deviations sit on ages 2-8 with 9-15 following age 8;
# age 1 never receives one.
grp_a <- list(2, 3, 4, 5, 6, 7, 8:15)
map_ats <- array(as.numeric(mapping$ln_srvsel_devs), dim = dim(parameters$ln_srvsel_devs))
map_ats[1, , , 1, 2:3] <- NA
k <- max(map_ats, na.rm = TRUE) + 1
for(y in match(yrs_ch_a, yrs)) {
  for(g in grp_a) {
    map_ats[1, y, g, 1, 2] <- k
    k <- k + 1
  }
} # end y loop
# The vessel of opportunity index is predicted from the acoustic selectivity
# itself, so it shares the deviations, not just the coefficients.
map_ats[1, , , 1, 3] <- map_ats[1, , , 1, 2]
mapping$ln_srvsel_devs <- factor(map_ats)
data$map_ln_srvsel_devs <- map_ats

# Acoustic age 1 log selectivity is kept at zero rather than estimated, and the
# trawl survey has no base logistic pair, so its base is kept at zero and the
# deviations hold the whole curve.
map_srvpar <- array(as.numeric(mapping$srv_fixed_sel_pars), dim = dim(parameters$srv_fixed_sel_pars))
map_srvpar[1, 1, 1, 1, 2:3] <- NA
map_srvpar[1, 1:2, 1, 1, 1] <- NA
mapping$srv_fixed_sel_pars <- factor(map_srvpar)

# The age 1 series' penalty weight is fixed at 8 rather than estimated.
mapping$srvsel_bin_devs_pe_pars <- factor(rep(NA, length(parameters$srvsel_bin_devs_pe_pars)))

map_bindev <- array(as.numeric(mapping$ln_srvsel_bin_devs), dim = dim(parameters$ln_srvsel_bin_devs))
map_bindev[1, -i_bts_all, , 1, 1] <- NA
mapping$ln_srvsel_bin_devs <- factor(map_bindev)
data$map_ln_srvsel_bin_devs <- map_bindev

One penalty has no counterpart in the setup functions. Because exp⁡(θ+δ)\exp(\theta + \delta) rescaled by its own mean is invariant to shifting θ\theta and δ\delta together, the level has to be pinned or the likelihood is flat along it. The 2024 assessment’s avgsel penalty does this:

ℓavgsel=w(θ¯)2\ell^{\text{avgsel}} = w\left(\overline{\theta}\right)^{2}

data$Use_fish_selex_penalty <- 1
fish_pen <- data.frame(region = 1, fleet = 1, block = 1, sex = 1, wt = 10)
fish_pen$par <- list(1:12)
data$fish_selex_penalty <- fish_pen

data$Use_srv_selex_penalty <- 1
srv_pen <- data.frame(region = 1, fleet = 2, block = 1, sex = 1, wt = 10)
srv_pen$par <- list(2:8)
data$srv_selex_penalty <- srv_pen

Starting at the ADMB estimate

Before optimizing anything, check that the objective is reproduced at a known point. Setting every parameter to the pollock maximum likelihood estimate and evaluating there separates a specification error from an optimization difference: if the population and the likelihood agree at the ADMB solution, the two models are the same model.

Most parameters can simply be assigned. Recruitment cannot, because the deviations are stock recruit residuals and each year’s residual depends on the previous year’s spawning biomass, so they are solved by forward substitution. The catchabilities are recovered from the ratio of the ADMB predicted index to SPoRC’s, which is exact because qq enters multiplicatively.

parameters$ln_F_devs[1, , 1, 1] <- log(dat$mle$Fmort)
parameters$ln_InitDevs[1, 1, , ] <- dat$mle$log_initdevs

parameters$fish_fixed_sel_pars[1, 1:n_ages, 1, 1, 1] <- dat$mle$pars_fsh
parameters$ln_fishsel_devs[1, 1:n_yrs, , 1, 1] <- dat$mle$devs_fsh
for(f in 2:3) {
  parameters$srv_fixed_sel_pars[1, 1:n_ages, 1, 1, f] <- dat$mle$pars_ats
  parameters$ln_srvsel_devs[1, 1:n_yrs, , 1, f] <- dat$mle$devs_ats
} # end f loop
parameters$srv_fixed_sel_pars[1, 1:2, 1, 1, 1] <- 0
parameters$ln_srvsel_devs[1, 1:n_yrs, 1, 1, 1] <- dat$mle$bts_b50_dev
parameters$ln_srvsel_devs[1, 1:n_yrs, 2, 1, 1] <- dat$mle$bts_k_dev
parameters$ln_srvsel_bin_devs[1, 1:n_yrs, 1, 1, 1] <- dat$mle$bts_age1_dev

parameters$fishsel_pe_pars[1, , 1, 1] <- log(1 / sqrt(2))
parameters$srvsel_bin_devs_pe_pars[1, , 1, 1] <- log(1 / sqrt(16))

obj <- fit_model(data, parameters, mapping, do_optim = FALSE, silent = TRUE)

# Recruitment deviations solved by forward substitution.
free <- obj$par
idx_rec <- which(names(free) == "ln_RecDevs")
for(it in 1:40) {
  r <- obj$report(free)
  gap <- log(dat$mle$Rec) - log(as.vector(r$Rec[1, 1, 1:n_yrs]))
  if(max(abs(gap)) < 1e-12) break
  free[idx_rec] <- free[idx_rec] + gap
} # end it loop

# Catchabilities recovered from the ratio of predicted indices.
r <- obj$report(free)
i_ats <- which(yrs %in% dat$yrs_ats)
i_avo <- which(yrs %in% dat$yrs_avo)
idx_q <- which(names(free) == "ln_srv_q")
free[idx_q] <- free[idx_q] + log(c(
  mean(dat$admb$eb_ats / as.vector(r$PredSrvIdx[1, 1, i_ats, 1, 2])),
  mean(dat$admb$pred_avo / as.vector(r$PredSrvIdx[1, 1, i_avo, 1, 3]))))
idx_fq <- which(names(free) == "ln_fish_q")
free[idx_fq] <- free[idx_fq] + log(mean(dat$admb$pred_cpue / as.vector(r$PredFishIdx[1, 1, 2:13, 1, 1])))

At that point every reported quantity agrees with the ADMB model to numerical precision, and the gradient is already near zero:

fishery selectivity max pct diff: 4.8e-13
trawl selectivity   max pct diff: 1.4e-13
numbers at age      max pct diff: 1.2e-11
spawning biomass    max pct diff: 2.3e-12
jnLL at the pollock MLE:  1547.851
max |gradient| there   :  2.7e-05

Fitting and comparison

Optimizing from that point moves nothing, which is the expected result when a model is already at its own optimum.

parameters2 <- obj$env$parList(free)
est <- fit_model(data, parameters2, mapping, do_optim = TRUE, newton_loops = 2, silent = TRUE)
est$sdrep <- RTMB::sdreport(est)
free parameters: 1207
final jnLL: 1547.851   max |gradient|: 1.4e-11

Spawning biomass and recruitment are compared below. Because the two series overplot exactly, the percent difference needs its own panel to be readable at all; its axis is in units of 10−610^{-6} percent.

Quantity Median difference Maximum difference
Spawning biomass 4.6×10−74.6\times10^{-7} % 3.4×10−63.4\times10^{-6} %
Recruitment 1.8×10−71.8\times10^{-7} % 5.8×10−65.8\times10^{-6} %

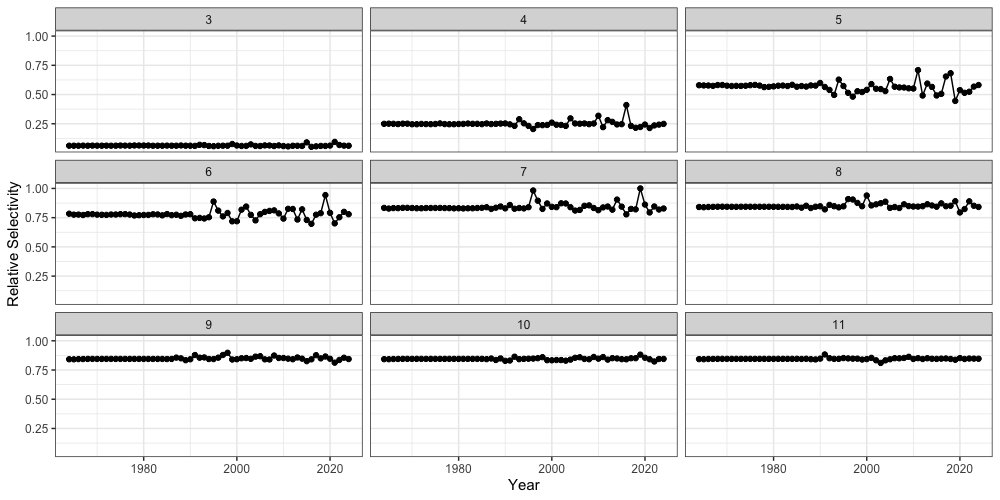

Time varying fishery selectivity is reproduced as well. Selectivity in this model can exceed one, so the values are normalized to their maximum to make the shape readable.
