Case Study: Bering Sea and Aleutian Islands Northern Rockfish

y_bsai_northern_rockfish_case_study.Rmd

Overview

This case study reproduces the 2023 Bering Sea and Aleutian Islands northern rockfish assessment in SPoRC. Every structural choice below follows the assessment rather than SPoRC’s defaults.

The model is single region, single sex, single season, with one fishery fleet and one survey:

Source Years Observations Likelihood
Catch 1977–2023 47 Lognormal, weighted
Aleutian Islands survey biomass 1991–2022 13 Lognormal
Fishery age compositions 2000–2021 17 Multinomial
Fishery length compositions 1977–2022 11 Multinomial
Survey age compositions 1991–2022 13 Multinomial

Model ages run 3 to 45 with a plus group, while the assessment reports over observed ages 3 to 40 with its last column an age 40 plus aggregation. Lengths run 15 to 38 cm.

library(SPoRC)
library(dplyr)
library(ggplot2)
data("sgl_rg_bsai_nork_data")

dat <- sgl_rg_bsai_nork_data
yrs <- dat$years
n_yrs <- length(yrs)
n_ages <- length(dat$ages)
n_obs_ages <- length(dat$obs_ages)

Model dimensions

Because the model is single region and single sex, the population, region, season and sex subscripts used in the model equations all collapse to one, and are dropped from the notation below.

input_list <- Setup_Mod_Dim(
  n_pop = dat$n_pop,
  years = yrs,
  ages = dat$ages,
  lens = dat$lens,
  n_regions = dat$n_regions,
  n_sexes = dat$n_sexes,
  n_fish_fleets = dat$n_fish_fleets,
  n_srv_fleets = dat$n_srv_fleets,
  n_seas = dat$n_seas,
  verbose = FALSE
)

Recruitment and the initial age structure

Recruitment is a mean with annual deviations rather than a stock recruit function, and the last three years take the mean outright:

Recy=R0exp⁡(ϵyRec),ϵyRec≡0 for the last three years\text{Rec}_{y} = R_{0}\exp\left(\epsilon_{y}^{\text{Rec}}\right),\qquad \epsilon_{y}^{\text{Rec}} \equiv 0 \text{ for the last three years}

The initial age structure is where this assessment differs most from a SPoRC default. Its fyear_ac_option 3 gives the first year its own scalar, independent of the recruitment level, with deviations that ages beyond the observed range share:

N1,a=exp⁡(logRinit−M(a−1)+ϕa)N_{1,a} = \exp\left(\log R^{\text{init}} - M(a-1) + \phi_{a}\right)

use_rinit = 1 is what creates that separate scalar, and equil_init_age_strc = "stoch_shared_ages" with an explicit init_age_devs_shared vector is what makes the ages past the observed range share the last deviation. SPoRC holds the initial numbers as multiplicative deviations from an equilibrium age structure rather than as the structure itself, so the seeding step below converts between the two.

The bias ramp is on with every ramp year at the terminal year, which centers the recruitment penalty on −σR2/2-\sigma_{R}^{2}/2. That matches the shifted deviations the seeds have, described in the seeding section.

input_list <- Setup_Mod_Rec(
  input_list = input_list,
  rec_model = "mean_rec",
  do_rec_bias_ramp = 1,
  bias_year = rep(n_yrs, 4),
  sigmaR_switch = 1,
  ln_sigmaR = array(log(dat$sigmaR), dim = c(2, dat$n_pop, dat$n_regions)),
  equil_init_age_strc = "stoch_shared_ages",
  init_age_devs_shared = c(1:(n_obs_ages - 1), rep(n_obs_ages - 1, n_ages - n_obs_ages)),
  dont_est_recdev_last = 3,
  sigmaR_spec = "fix",
  init_age_strc = 1,
  t_spawn = (dat$spawn_mo - 1) / 12,
  use_rinit = 1
)

Biological dynamics

Natural mortality is estimated under a lognormal prior. The assessment states its prior as a mean of 0.060.06 on the natural scale, so the median supplied to SPoRC is shifted by exp⁡(−CV2/2)\exp(-\text{CV}^{2}/2) to put the prior mean where the assessment puts it:

ℓM=(logM−log[μMe−CVM2/2])22CVM2\ell^{M} = \dfrac{\left(\log M - \log\left[\mu_{M}e^{-\text{CV}_{M}^{2}/2}\right]\right)^{2}}{2\,\text{CV}_{M}^{2}}

Weight at age is year varying, and the fishery has its own weight at age matrix through WAA_fish, which prices the catch, while the population matrix prices spawning biomass and the survey.

input_list <- Setup_Mod_Biologicals(
  input_list = input_list,
  WAA = dat$WAA,
  WAA_fish = dat$WAA_fish,
  MatAA = dat$MatAA,
  fit_lengths = 1,
  SizeAgeTrans = dat$SizeAgeTrans,
  AgeingError = dat$AgeingError,
  M_spec = "est_ln_M",
  Use_M_prior = 1,
  M_prior = data.frame(popblk = 1, regionblk = 1, yearblk = 1, ageblk = 1, sexblk = 1,
                       mu = dat$mean_M * exp(-dat$cv_M^2 / 2), sd = dat$cv_M),
  addtosrvidx = 1e-13,
  addtocomp = 1e-13
)

Movement and tagging

The model is single region, so movement is an identity matrix and no tagging data are used. Both still have to be declared.

input_list <- Setup_Mod_Movement(input_list = input_list, use_fixed_movement = 1,
                                 Fixed_Movement = NA, do_recruits_move = 0)

input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

Catch and fishing mortality

The assessment writes its catch and F statements as weighted sums of squares with weights 200200 and 0.10.1. A weighted sum of squares and a normal likelihood with a fixed standard deviation are the same statement up to a constant, related by σ=1/2w\sigma = 1/\sqrt{2w}, so both weights are kept inside the standard deviations rather than applied outside the sums.

suppressWarnings(
  input_list <- Setup_Mod_Catch_and_F(
    input_list = input_list,
    ObsCatch = dat$ObsCatch,
    UseCatch = dat$UseCatch,
    Use_F_pen = 1,
    sigmaC_spec = "fix",
    ln_sigmaC = array(log(sqrt(1 / (2 * dat$catch_wt))),
                      dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
    ln_sigmaF = array(log(sqrt(1 / (2 * dat$fmort_wt))),
                      dim = c(dat$n_regions, dat$n_seas, dat$n_fish_fleets))
  )
)

Fishery compositions

There is no fishery index in this assessment, only compositions, so fish_idx_type is "none" and the index arrays are declared empty.

input_list <- Setup_Mod_FishIdx_and_Comps(
  input_list = input_list,
  ObsFishIdx = array(NA, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  ObsFishIdx_SE = array(NA, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  UseFishIdx = array(0, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  ObsFishAgeComps = dat$ObsFishAgeComps,
  UseFishAgeComps = dat$UseFishAgeComps,
  ISS_FishAgeComps = dat$ISS_FishAgeComps,
  ObsFishLenComps = dat$ObsFishLenComps,
  UseFishLenComps = dat$UseFishLenComps,
  ISS_FishLenComps = dat$ISS_FishLenComps,
  fish_idx_type = "none",
  FishAgeComps_LikeType = "Multinomial",
  FishLenComps_LikeType = "Multinomial",
  FishAgeComps_Type = "agg_Year_1-terminal_Fleet_1",
  FishLenComps_Type = "agg_Year_1-terminal_Fleet_1"
)

Survey index and compositions

The Aleutian Islands bottom trawl survey supplies a biomass index and age compositions. The index is lognormal with year specific standard errors, and the survey is fit at mid year.

input_list <- Setup_Mod_SrvIdx_and_Comps(
  input_list = input_list,
  ObsSrvIdx = dat$ObsSrvIdx,
  ObsSrvIdx_SE = dat$ObsSrvIdx_SE,
  UseSrvIdx = dat$UseSrvIdx,
  ObsSrvAgeComps = dat$ObsSrvAgeComps,
  ISS_SrvAgeComps = dat$ISS_SrvAgeComps,
  UseSrvAgeComps = dat$UseSrvAgeComps,
  ObsSrvLenComps = dat$ObsSrvLenComps,
  UseSrvLenComps = dat$UseSrvLenComps,
  ISS_SrvLenComps = dat$ISS_SrvLenComps,
  srv_idx_type = "biom",
  SrvAgeComps_LikeType = "Multinomial",
  SrvLenComps_LikeType = "Multinomial",
  SrvAgeComps_Type = "agg_Year_1-terminal_Fleet_1",
  SrvLenComps_Type = "agg_Year_1-terminal_Fleet_1"
)

Fishery selectivity and catchability

Both fleets use the slope and a50a_{50} parameterization of the logistic, which is logist1:

Sela=11+exp⁡[−k(a−a50)]\text{Sel}_{a} = \dfrac{1}{1 + \exp\left[-k\left(a - a_{50}\right)\right]}

Selectivity is time invariant, so there are no deviations and no process error. Fishery catchability is not used, because there is no fishery index to scale.

input_list <- Setup_Mod_Fishsel_and_Q(
  input_list = input_list,
  cont_tv_fish_sel = "none_Fleet_1",
  fish_sel_blocks = "none_Fleet_1",
  fish_sel_model = "logist1_Fleet_1",
  fish_q_blocks = "none_Fleet_1",
  fish_fixed_sel_pars_spec = "est_all",
  fish_q_spec = "fix"
)

Survey selectivity and catchability

Two constraints on the survey side are worth stating carefully.

The catchability prior has a coefficient of variation of 0.0010.001, which is tight enough to pin qq at one. That is the assessment’s intent, and it is why the qq prior term is 3×10−63\times10^{-6} rather than a live contribution.

The selectivity constraint is not a prior on the selectivity parameters. The assessment penalizes the realized selectivity value at age 30 towards one with a standard deviation of 0.0030.003:

ℓSel=(Sel30−1)22×0.0032\ell^{\text{Sel}} = \dfrac{\left(\text{Sel}_{30} - 1\right)^{2}}{2\times0.003^{2}}

type = "value" in srv_selex_prior makes exactly that statement, and it is load bearing: without it the survey age compositions do not identify the selectivity asymptote.

input_list <- Setup_Mod_Srvsel_and_Q(
  input_list = input_list,
  cont_tv_srv_sel = "none_Fleet_1",
  srv_sel_blocks = "none_Fleet_1",
  srv_sel_model = "logist1_Fleet_1",
  srv_q_blocks = "none_Fleet_1",
  srv_fixed_sel_pars_spec = "est_all",
  srv_q_spec = "est_all",
  Use_srv_q_prior = 1,
  srv_q_prior = data.frame(region = 1, block = 1, fleet = 1,
                           mu = dat$mean_q * exp(-dat$cv_q^2 / 2), sd = dat$cv_q),
  t_srv = array(0.5, dim = c(dat$n_regions, dat$n_seas, dat$n_srv_fleets)),
  Use_srv_selex_prior = 1,
  srv_selex_prior = data.frame(region = 1, fleet = 1, block = 1, sex = 1,
                               par = which(dat$ages == 30),
                               mu = 1.0, sd = 0.003, type = "value")
)

Weighting

The catch and F weights are already inside their standard deviations, so the only weights left are the composition multipliers, which are the assessment’s McAllister Ianelli values and ship in the data object.

input_list <- Setup_Mod_Weighting(
  input_list = input_list,
  Wt_Catch = 1, Wt_FishIdx = 1, Wt_SrvIdx = 1,
  Wt_Rec = 1, Wt_F = 1, Wt_Tagging = 0,
  Wt_FishAgeComps = dat$Wt_FishAgeComps,
  Wt_FishLenComps = dat$Wt_FishLenComps,
  Wt_SrvAgeComps = dat$Wt_SrvAgeComps,
  Wt_SrvLenComps = dat$Wt_SrvLenComps
)

Starting at the ADMB estimate

Before optimizing anything, check that the model is reproduced at a known point. Setting every parameter to the assessment’s maximum likelihood estimate and evaluating there separates a specification error from an optimization difference: if the population and the likelihood agree at the ADMB solution, the two models are the same model.

Two conversions are needed. The assessment builds its three deviation free terminal recruits as exp⁡(log⁡R¯+σR2/2)\exp(\overline{\log R} + \sigma_{R}^{2}/2) while leaving the estimated years raw, and its recruitment deviations are a dev_vector constrained to sum to zero. With the bias correction in ln_global_R0 and shifting every seeded deviation down by the same amount reproduces both the recruitment series and the penalty value exactly.

The initial age structure conversion is the second. The assessment writes the first year directly, while SPoRC has multiplicative deviations from an equilibrium age structure, so the deviations are the log ratio of the two.

mle <- dat$mle
s2 <- dat$sigmaR^2 / 2

input_list$par$ln_global_R0[] <- mle$mean_log_rec + s2
input_list$par$ln_RecDevs[1, 1, ] <- mle$rec_dev - s2
input_list$par$ln_rinit <- mle$log_rinit
input_list$par$ln_M[] <- log(mle$M)
input_list$par$ln_srv_q[] <- log(mle$q_srv)
input_list$par$ln_F_mean[] <- mle$log_avg_fmort
input_list$par$ln_F_devs[1, , 1, 1] <- mle$fmort_dev
input_list$par$fish_fixed_sel_pars[] <- log(c(mle$sel_a50_fish, mle$sel_aslope_fish))
input_list$par$srv_fixed_sel_pars[] <- log(c(mle$sel_a50_srv, mle$sel_aslope_srv))

# The assessment's initial numbers at age against SPoRC's equilibrium reference.
NAA_equil <- exp(mle$log_rinit) * exp(-(0:(n_ages - 1)) * mle$M)
NAA_equil[n_ages] <- NAA_equil[n_ages - 1] * exp(-mle$M) / (1 - exp(-mle$M))
NAA_styr <- NAA_equil
for(j in 2:n_obs_ages) {
  NAA_styr[j] <- exp(mle$log_rinit - mle$M * (j - 1) + mle$fydev[j - 1])
} # end j loop
for(j in (n_obs_ages + 1):n_ages) {
  NAA_styr[j] <- exp(mle$log_rinit - mle$M * (j - 1) + mle$fydev[length(mle$fydev)])
} # end j loop
NAA_styr[n_ages] <- exp(mle$log_rinit - mle$M * (n_ages - 1) +
                          mle$fydev[length(mle$fydev)]) / (1 - exp(-mle$M))
input_list$par$ln_InitDevs[1, 1, , ] <- (log(NAA_styr) - log(NAA_equil))[-1]

One thing SPoRC cannot express is the assessment’s nselages edge hold, which evaluates the logistic over ages 3 to 30 only and holds both curves at the age 30 value beyond that. For the seed evaluation the survey curve is supplied as a fixed input with that hold applied, which isolates the likelihoods from the selectivity form. The refit below estimates the uncapped logistic instead, and that is the only specification difference between the two stages.

bridge_list <- input_list
bridge_list$data <- cap_bsai_nork_srv_sel(bridge_list$data, dat)

obj <- fit_model(bridge_list$data, bridge_list$par, bridge_list$map,
                 do_optim = FALSE, silent = TRUE)
r <- obj$rep

At that point every reported quantity agrees with the ADMB model:

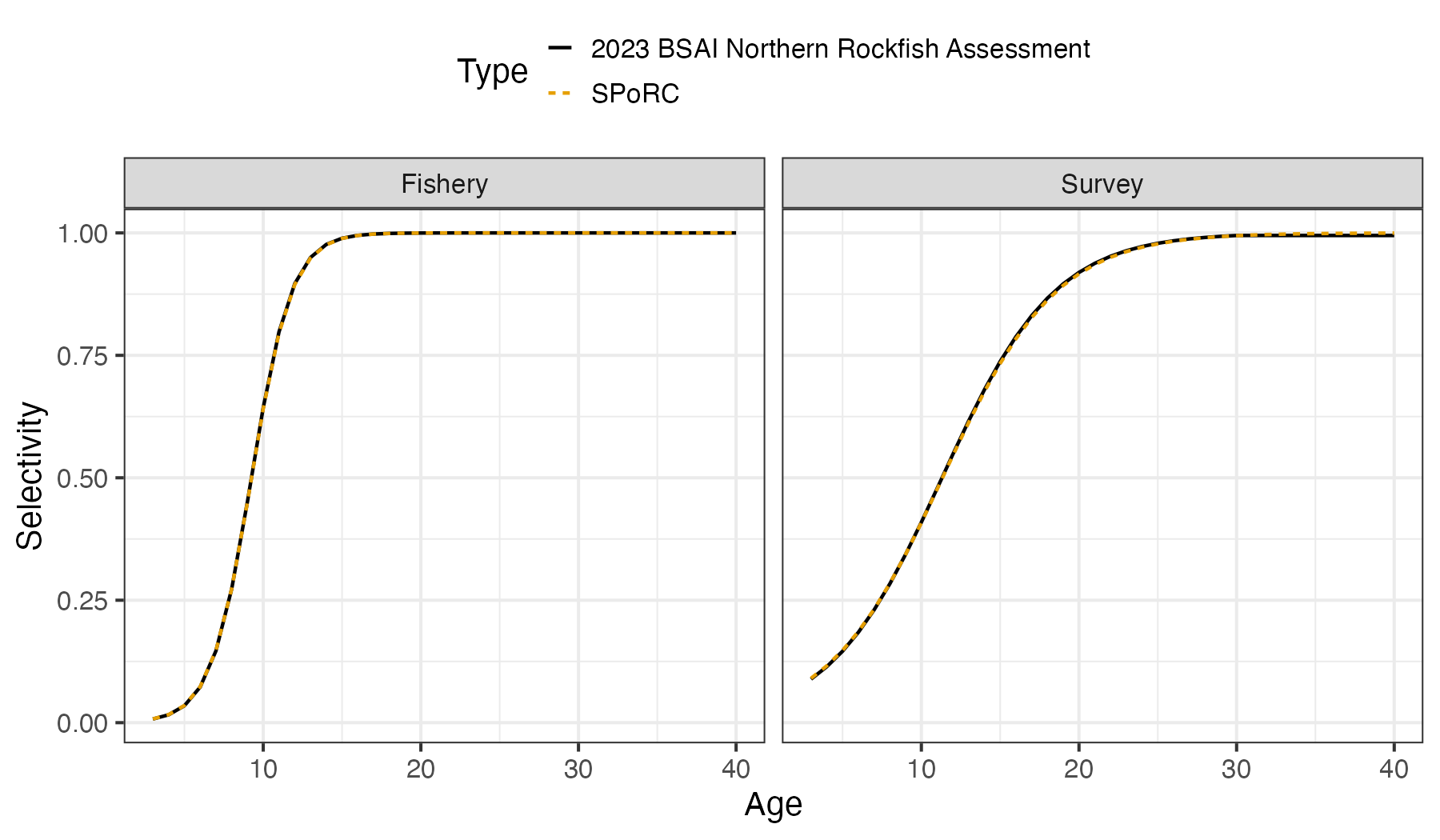

fishery selectivity max pct diff: 1.3e-04
survey selectivity  max pct diff: 3.3e-04
numbers at age      max pct diff: 5.0e-04
spawning biomass    max pct diff: 3.9e-04
recruitment         max pct diff: 2.5e-04
fishing mortality   max pct diff: 4.4e-04

The likelihood is checked the same way. SPoRC writes each component as a proper density while the assessment drops normalizing constants, so a like for like comparison subtracts exactly the constants the assessment omits. The survey statement keeps its log⁡σ\log\sigma term but drops 2π\sqrt{2\pi}, and its standard errors vary by year, so that constant is summed over the observations rather than counted. The recruitment penalty keeps its log⁡σR\log\sigma_{R} terms over the recruitment and initial age deviations together, which is why it is negative: σR\sigma_{R} is 0.750.75.

Component SPoRC Assessment
Catch sum of squares 0.00417 0.0000209
Survey index 8.78014 8.78103
Fishery age compositions 257.649 257.649
Fishery length compositions 84.2464 84.2464
Survey age compositions 198.736 198.736
Recruitment -1.73126 -1.73126
F regularity 5.98039 5.98039
Survey selectivity prior 1.56319 1.56319
MM prior 0.253029 0.253029
qq prior 0.00000349 0.00000349
Like for like total 555.481 555.4816

Nine of the ten components land on the assessment’s value. The catch statement is the exception, and both sides are numerically zero against an objective of 555555: the assessment fits catch to 2×10−52\times10^{-5} and SPoRC to 4×10−34\times10^{-3}, which is a difference in how near exactly catch is driven rather than a difference in the statement. The assessment estimates maturity inside its template while SPoRC fixes it, so its maturity likelihood is removed from its side of the total.

Fitting and comparison

est <- fit_model(input_list$data, input_list$par, input_list$map,
                 random = NULL, newton_loops = 3, silent = TRUE)
est$sdrep <- RTMB::sdreport(est)
free parameters: 137
final jnLL: 591.667   max |gradient|: 2.4e-12
pdHess: TRUE

The refit moves further from the assessment than the other rockfish bridges do, by a median of 0.60.6 percent in spawning biomass, and the reason is the selectivity form rather than anything in the likelihoods. The refit estimates an uncapped logistic where the assessment holds its curve flat past age 30, so the two are fitting slightly different shapes over the oldest ages, which the survey age compositions do see.

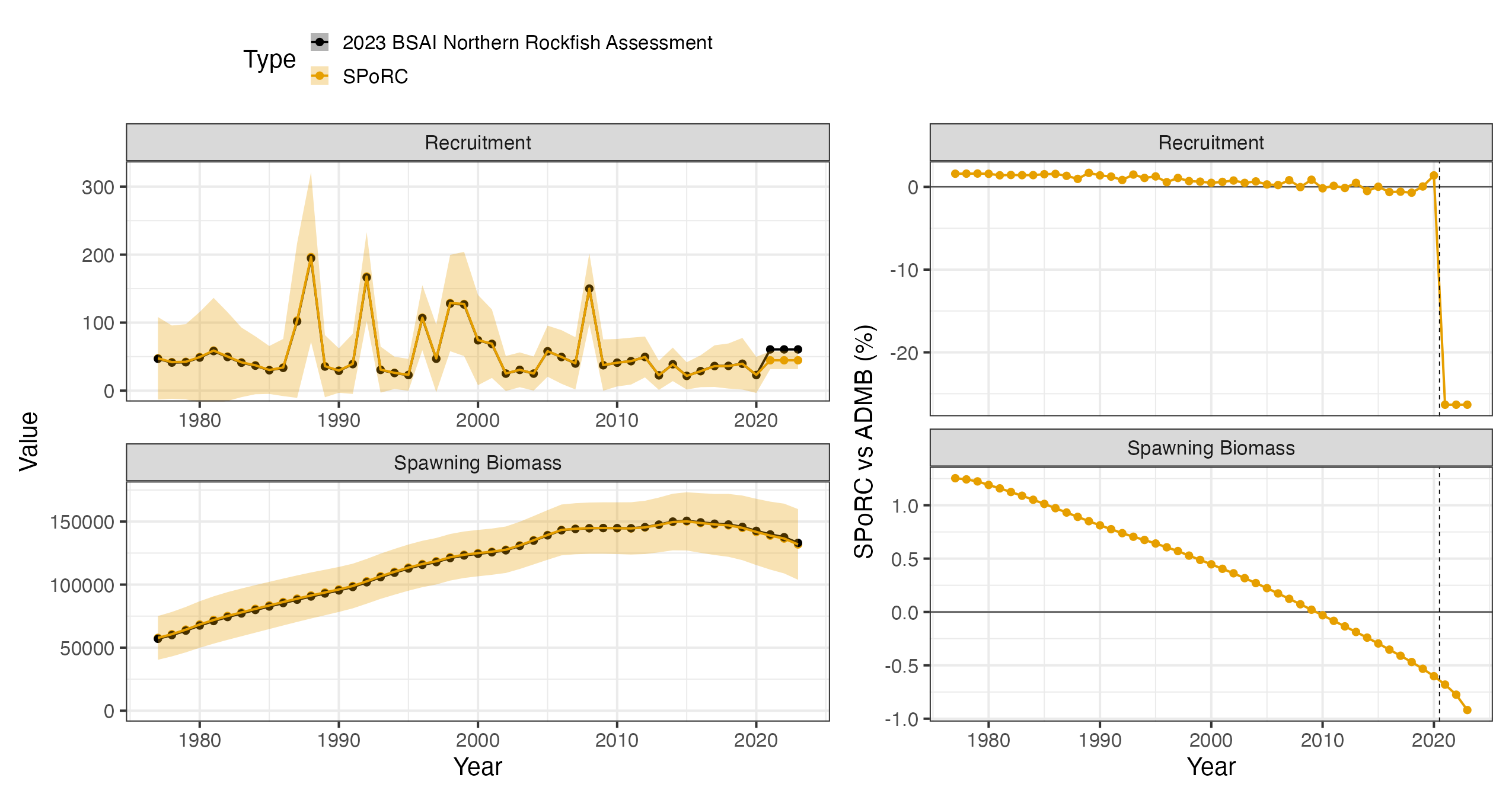

Quantity Median difference Maximum difference
Spawning biomass 0.60 % 1.25 %
Recruitment, estimated years 0.82 % 1.69 %

The dashed rule marks where the estimated recruitment deviations stop. Over the three terminal years the assessment builds recruitment as the mean of the lognormal and SPoRC as the median, so a ratio of exp⁡(σR2/2)=1.3248\exp(\sigma_{R}^{2}/2) = 1.3248 is expected there by convention. The observed ratio is 1.35731.3573, and the remainder is the shift in the estimated recruitment level between the two fits rather than a second convention.

The survey panel is where the refit and the assessment part company, for the reason given above.
