Case Study: EBS Pacific Cod

ae_ebs_pacific_cod_case_study.Rmd

Overview

This case study reproduces Model 24.1 of the 2024 eastern Bering Sea Pacific cod assessment (Barbeaux et al. 2024), run in Stock Synthesis 3, in SPoRC.

The model is one area, one sex and one season, with a single fishery and a single bottom trawl survey. Everything is fit at length, on 121 population length bins reported to 24 five centimeter data bins.

Source Years Observations Likelihood
Catch 1977–2024 48 Lognormal
Survey abundance, in numbers 1982–2024 42 Lognormal, estimated extra SD
Fishery length compositions 1977–2024 48 Multinomial
Survey length compositions 1982–1999, 2024 19 Multinomial
Survey age compositions 2000–2023 23 Multinomial

Ages run a=0a = 0 to a+=20a_{+} = 20, with ages observed from 0 to 12 and 12 accumulating. Population lengths are 121 one centimeter bins and the compositions are recorded on 24 bins of 5 cm from 4.5. Model years run y1=1977y_{1} = 1977 to yend=2024y_{\text{end}} = 2024. Recruitment is age 0 entering at the start of the year, mean recruitment with σR=0.6908\sigma_{R} = 0.6908, and natural mortality is fixed at 0.3866.

library(SPoRC)
library(dplyr)
library(ggplot2)
data("sgl_rg_ebs_pcod_data")

dat <- sgl_rg_ebs_pcod_data
yrs <- dat$years
n_yrs <- length(yrs)
ages <- dat$ages
n_ages <- length(ages)
n_reg <- 1; n_sex <- 1; n_fish <- 1; n_srv <- 1
sigmaR <- dat$rec$sigmaR

The object holds the model inputs, the assessment’s maximum likelihood estimate in dat$mle, used both as a starting point and to check the objective before anything is optimized, and the reported quantities in dat$ss3, which are the comparison target.

Model dimensions

One area, one sex and one season, so the region, sex and season subscripts in vignette("c_model_equations") all collapse to one. The lengths given here are the population bins the fish are grown on, not the coarser bins the compositions are reported on.

input_list <- Setup_Mod_Dim(
  years = yrs, ages = ages, lens = dat$lens,
  n_regions = n_reg, n_sexes = n_sex, n_fish_fleets = n_fish, n_srv_fleets = n_srv,
  n_seas = 1, n_pop = 1, natal_region = 1, verbose = FALSE
)

Recruitment

Recruitment is a mean with annual deviations rather than a stock recruit function. The start year’s ages 1 to 20 are set by twenty early deviations, and equil_init_age_strc = "stoch_all" estimates and penalizes all twenty, including the one at the accumulator age, which is what the assessment does. The alternative, "stoch_plus_grp", holds that last deviation at zero and leaves it out of the penalty.

A separate initial equilibrium recruitment is penalized towards R0R_{0} with the assessment’s standard deviation, σR\sigma_{R} over the average age. Initial fishing mortality is kept at the assessment’s value, since SPoRC has no equilibrium catch to fit it against.

ave_age <- 1 / dat$growth$M - 0.5

input_list <- Setup_Mod_Rec(
  input_list = input_list,
  rec_model = "mean_rec", rec_dd = "global", rec_lag = 0, SR_ref_yr = 1, t_spawn = 0,
  sigmaR_spec = "fix", ln_sigmaR = array(log(sigmaR), dim = c(2, 1, n_reg)), sigmaR_switch = 1,
  do_rec_bias_ramp = 1,
  bias_year = dat$rec$bias_years - yrs[1] + 1,
  max_bias_ramp_fct = dat$rec$max_bias_adj,
  RecDevs_spec = "est_shared_pop_r", RecDevs_pen_center = "fixed", dont_est_recdev_last = 0,
  init_age_strc = 2, equil_init_age_strc = 2,
  InitDevs_spec = "est_shared_pop_r", InitDevs_pen_center = "fixed",
  rec_region_prop_spec = NULL,
  use_rinit = 1, Use_rinit_pen = 1, rinit_pen_sd = sigmaR / ave_age,
  init_F_form = "abs", init_F_spec = "fix",
  init_F_par = array(log(dat$mle$init_F), dim = c(n_reg, 1, n_fish)),
  ln_global_R0 = dat$mle$ln_R0, ln_rinit = dat$mle$ln_R0 + dat$mle$regime
)

The bias ramp years are given in deviation-index space, 1 being the first model year, and each early deviation reads the ramp at its own birth year.

Biological dynamics

Natural mortality is fixed. Growth is the Richards curve, which generalizes von Bertalanffy with a sixth parameter raising the lengths to a power, and weight at age is derived from it through the weight-length relationship rather than supplied as data.

Three arguments hold the assessment’s growth conventions. growth_tv_model = c(L1 = "iid", K = "iid") names which parameters vary and how, with growth_tv_years giving each its own active years. growth_tv_link = "logit" makes each deviation an offset inside the parameter’s bounds. growth_tv_type = "cohort" has size at age forward cohort by cohort. The deviations’ standard deviations live in the first data source of growth_pe_pars, one slot per growth parameter in the order L1, L2, K, CV1, CV2, rho, with a placeholder in the four slots that do not vary. The second data source belongs to the semi-parametric surface and is unread here.

Maturity at age is taken from the assessment rather than modeled, because maturity is length based and fixed there. LenBinMap maps the 121 population bins onto the 24 the compositions are recorded on.

g <- dat$growth
pe_start <- array(log(0.05), dim = c(1, n_reg, max(4, n_ages, 6), n_sex, 2))
pe_start[1, 1, 1:6, 1, 1] <- log(c(g$dev_sd[["L1"]], 1, g$dev_sd[["K"]], 1, 1, 1))
MatAA <- array(0, dim = c(1, n_reg, n_yrs, 1, n_ages, n_sex))
MatAA[1, 1, , 1, , 1] <- dat$MatAA

input_list <- Setup_Mod_Biologicals(
  input_list = input_list,
  WAA = NULL, MatAA = MatAA,
  fit_lengths = 1, SizeAgeTrans = NA,
  AgeingError = dat$AgeingError,
  M_spec = "fix", Fixed_natmort = array(g$M, dim = c(1, n_reg, n_yrs, n_ages, n_sex)),
  addtocomp = dat$comp$addtocomp_len, comp_const_obs = 1, addtosrvidx = 0, addtofishidx = 0,
  growth_model = "richards",
  ln_growth_pars = array(log(dat$mle$growth[c("L1", "L2", "K", "CV1", "CV2", "rho")]), dim = c(1, n_reg, n_sex, 6)),
  growth_spec = "est_all", growth_fix = !g$est[c("L1", "L2", "K", "CV1", "CV2", "rho")],
  growth_A1 = g$A1,
  growth_A2 = if(g$A2 == 999) "Linf" else g$A2,
  growth_len_lower = dat$lens_lower, growth_L0 = dat$lens_lower[1],
  growth_plus_group = "mixture",
  growth_tv_model = c(L1 = "iid", K = "iid"), growth_tv_years = g$dev_years,
  growth_tv_link = "logit",
  growth_par_bounds = g$bounds[c("L1", "L2", "K", "CV1", "CV2", "rho"), ],
  growth_pe_pars = pe_start,
  growth_tv_sigma_spec = "fix",
  growth_tv_type = "cohort",
  waa_model = "wt_len", wt_len_pars = dat$wtlen,
  LenBinMap = dat$LenBinMap
)

The control file records a second reference age of 999 to mean that L2L_{2} is the asymptote itself, which is what the conditional on growth_A2 translates. Two ageing error definitions are kept in AgeingError, a biased reader through 2007 and an unbiased one after.

Movement and tagging

One area, so nothing moves and nothing is tagged.

input_list <- Setup_Mod_Movement(input_list = input_list, use_fixed_movement = 1,
                                 Fixed_Movement = NA, do_recruits_move = 0)
input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

Catch and fishing mortality

The assessment solves fishing mortality from the catch with its hybrid method, so it spends no parameters on FF. SPoRC estimates a deviation per year against the assessment’s catch error with no penalty on the deviations, which fits the catch almost exactly on both sides.

input_list <- Setup_Mod_Catch_and_F(
  input_list = input_list,
  ObsCatch = dat$ObsCatch, UseCatch = dat$UseCatch,
  Use_F_pen = 0, ln_F_mean_spec = "fix",
  sigmaC_spec = "fix", ln_sigmaC = array(log(dat$catch_se), dim = c(n_reg, n_yrs, 1, n_fish))
)

Fishery compositions

No fishery index and no fishery ages, lengths only. Two arguments have conventions rather than choices. FishLenComps_sel = "length" applies selectivity at length and sums over ages instead of folding it to age first, and fish_waa_selected = 1 puts the catch in biomass on the selection weighted weight at age.

t_fish is 0.5 because a fishing fleet’s compositions are read at mid season whatever month the data file records, so the age-length key, the selected weight behind the catch biomass, and the compositions all sit there.

joint <- function(n) paste0("spltRjntS_Year_1-terminal_Fleet_", seq_len(n))
none <- function(n) paste0("none_Year_1-terminal_Fleet_", seq_len(n))

input_list <- Setup_Mod_FishIdx_and_Comps(
  input_list = input_list,
  t_fish = array(0.5, dim = c(n_reg, 1, n_fish)),
  FishLenComps_sel = "length", fish_waa_selected = 1,
  ObsFishIdx = array(NA_real_, dim = c(n_reg, n_yrs, 1, n_fish)),
  ObsFishIdx_SE = array(NA_real_, dim = c(n_reg, n_yrs, 1, n_fish)),
  UseFishIdx = array(0, dim = c(n_reg, n_yrs, 1, n_fish)),
  fish_idx_type = rep("none", n_fish), FishIdx_LikeType = rep("lognormal", n_fish),
  ObsFishAgeComps = array(NA_real_, dim = c(n_reg, n_yrs, 1, length(dat$obs_ages), n_sex, n_fish)),
  UseFishAgeComps = array(0, dim = c(n_reg, n_yrs, 1, n_fish)),
  ObsFishLenComps = dat$ObsFishLenComps, UseFishLenComps = dat$UseFishLenComps,
  ISS_FishLenComps = dat$ISS_FishLenComps,
  FishAgeComps_LikeType = rep("none", n_fish),
  FishLenComps_LikeType = rep("Multinomial", n_fish),
  FishAgeComps_Type = none(n_fish), FishLenComps_Type = joint(n_fish)
)

Survey index and compositions

The index is in numbers, so weight at age never enters it. The extra standard deviation the assessment estimates is added to the observed standard errors here rather than estimated, which is the one parameter of the assessment’s that SPoRC folds into data. Ages come through the ageing error definitions, lengths on the data bins, all read at mid year.

t_srv <- array(dat$t_srv, dim = c(n_reg, 1, n_srv))

input_list <- Setup_Mod_SrvIdx_and_Comps(
  input_list = input_list,
  ObsSrvIdx = dat$ObsSrvIdx, ObsSrvIdx_SE = dat$ObsSrvIdx_SE,
  UseSrvIdx = dat$UseSrvIdx,
  sigmaSrvIdx_spec = "est_additive",
  ln_sigmaSrvIdx = log(dat$mle$extra_sd),
  srv_idx_type = rep("abd", n_srv), SrvIdx_LikeType = rep("lognormal", n_srv),
  ObsSrvAgeComps = dat$ObsSrvAgeComps, UseSrvAgeComps = dat$UseSrvAgeComps,
  ISS_SrvAgeComps = dat$ISS_SrvAgeComps,
  ObsSrvLenComps = dat$ObsSrvLenComps, UseSrvLenComps = dat$UseSrvLenComps,
  ISS_SrvLenComps = dat$ISS_SrvLenComps,
  SrvAgeComps_LikeType = rep("Multinomial", n_srv),
  SrvLenComps_LikeType = rep("Multinomial", n_srv),
  SrvAgeComps_Type = joint(n_srv), SrvLenComps_Type = joint(n_srv),
  SrvLenComps_sel = "length"
)

Fishery selectivity

A double normal at length on the population bins, in two blocks. The 1977 to 1989 block replaces the peak and the ascending width and keeps the rest of the base block’s parameters, so two of the six are estimated in each block.

fish_sel_dbnrml_raw leaves the ascending limb as a raw Gaussian rather than rescaling it, and fish_sel_dbnrml_startbin anchors the limb at the first data bin rather than the first population bin, with bins below taking (b/bstart)2(b / b_{\text{start}})^{2} times the selectivity there.

input_list <- Setup_Mod_Fishsel_and_Q(
  input_list = input_list,
  fish_selex_type = "length",
  fish_sel_model = c("dbnrml_Fleet_1_Block_1", "dbnrml_Fleet_1_Block_2"),
  cont_tv_fish_sel = paste0("none_Fleet_", seq_len(n_fish)),
  fish_sel_blocks = c(paste0("Block_1_Year_1-", dat$sel$blocks[[4]][2] - yrs[1] + 1, "_Fleet_1"),
                      paste0("Block_2_Year_", dat$sel$blocks[[4]][2] - yrs[1] + 2, "-terminal_Fleet_1")),
  fish_q_blocks = paste0("none_Fleet_", seq_len(n_fish)),
  fish_fixed_sel_pars_spec = rep("est_all", n_fish),
  fish_sel_dbnrml_raw = matrix(c(1, 0), n_fish, 2, byrow = TRUE),
  fish_sel_dbnrml_startbin = rep(dat$startbin, n_fish),
  fish_q_spec = rep("fix", n_fish)
)

Block years are given in year-index space, 1 being the first model year.

Survey selectivity

The same double normal with independent annual deviations on the ascending width from 1982, which is cont_tv_srv_sel = "iid" with the process error standard deviation kept at the assessment’s value. Catchability is estimated.

input_list <- Setup_Mod_Srvsel_and_Q(
  input_list = input_list,
  srv_selex_type = "length",
  srv_sel_model = paste0("dbnrml_Fleet_", seq_len(n_srv)),
  cont_tv_srv_sel = paste0("iid_Fleet_", seq_len(n_srv)),
  srv_sel_blocks = paste0("none_Fleet_", seq_len(n_srv)),
  srv_q_blocks = paste0("none_Fleet_", seq_len(n_srv)),
  srv_fixed_sel_pars_spec = rep("est_all", n_srv),
  srv_sel_devs_spec = rep("est_all", n_srv),
  srvsel_pe_pars_spec = rep("fix", n_srv),
  srv_sel_dbnrml_startbin = rep(dat$startbin, n_srv),
  srv_q_spec = rep("est_all", n_srv),
  t_srv = t_srv
)

Weighting

One Francis weight per composition type. Stock Synthesis adds a constant to every observed and expected proportion and then renormalizes, so each composition likelihood is the SPoRC value scaled by 1+nbins×c1 + n_{\text{bins}} \times c. Dividing the weight by that factor absorbs it.

va <- dat$var_adj
w_len_fish <- va$value[va$factor == 4 & va$fleet == dat$fish_fleets[1]]
w_len_srv  <- va$value[va$factor == 4 & va$fleet == dat$srv_fleets[1]]
w_age_srv  <- va$value[va$factor == 5 & va$fleet == dat$srv_fleets[1]]
n_obs_lens <- ncol(dat$LenBinMap); n_obs_ages <- length(dat$obs_ages)

per_fleet <- function(w, n_fl) {
  arr <- array(1, dim = c(n_reg, n_yrs, 1, n_sex, n_fl))
  for(f in seq_len(n_fl)) arr[, , , , f] <- w
  arr
}

input_list <- Setup_Mod_Weighting(
  input_list = input_list,
  Wt_Catch = 1, Wt_FishIdx = 0, Wt_SrvIdx = 1, Wt_Rec = 1, Wt_F = 1, Wt_Tagging = 0,
  Wt_FishAgeComps = per_fleet(0, n_fish),
  Wt_FishLenComps = per_fleet(w_len_fish / (1 + n_obs_lens * dat$comp$addtocomp_len), n_fish),
  Wt_SrvAgeComps = per_fleet(w_age_srv / (1 + n_obs_ages * dat$comp$addtocomp_age), n_srv),
  Wt_SrvLenComps = per_fleet(w_len_srv / (1 + n_obs_lens * dat$comp$addtocomp_len), n_srv)
)

Starting at the assessment’s estimate

Every parameter is set to the assessment’s estimate and the model is evaluated there without optimizing, which is what makes the specification checkable one piece at a time. The bridge helper does this in one call; the pieces are the recruitment ratio, the early deviations less their own bias corrections, log fishing mortality as a fixed mean plus deviations, the growth and selectivity deviations rescaled from the assessment’s unit normal form, and catchability.

source(system.file("tests", "testthat", "helper-bridge_ebs_pcod.R", package = "SPoRC"))

input_list <- seed_ebs_pcod_mle(build_ebs_pcod_input(dat), dat)
seed <- fit_model(input_list$data, input_list$par, input_list$map,
                  do_optim = FALSE, silent = TRUE)

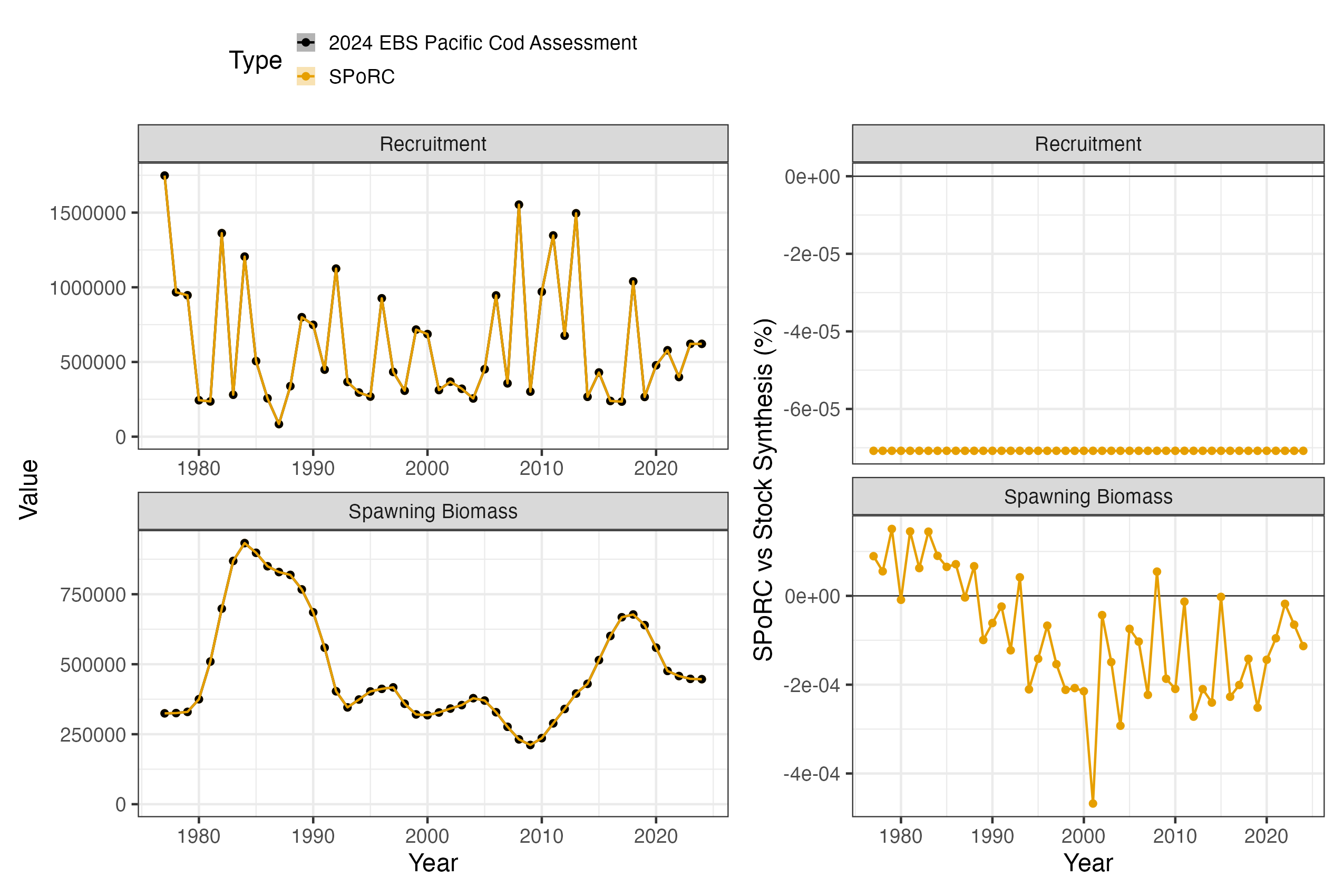

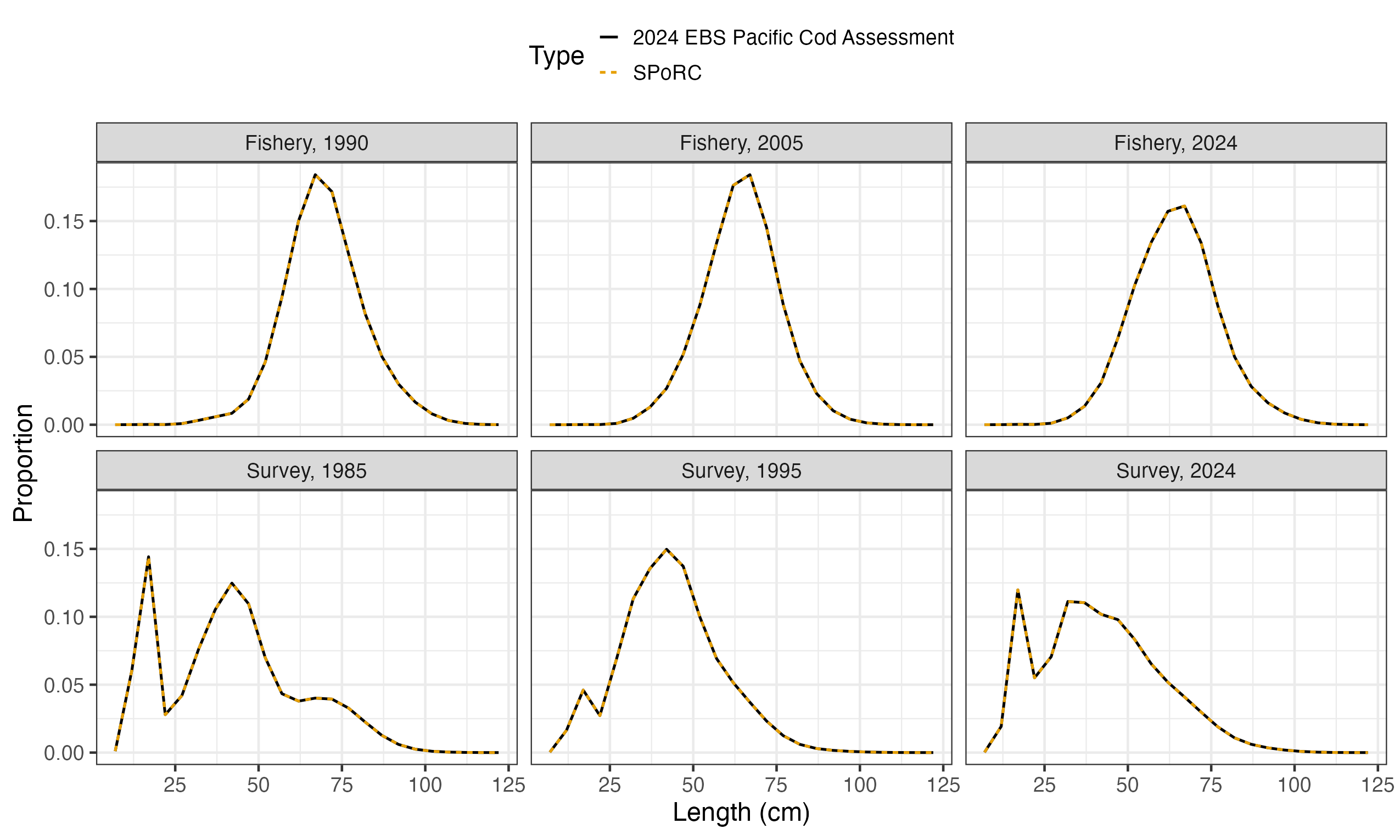

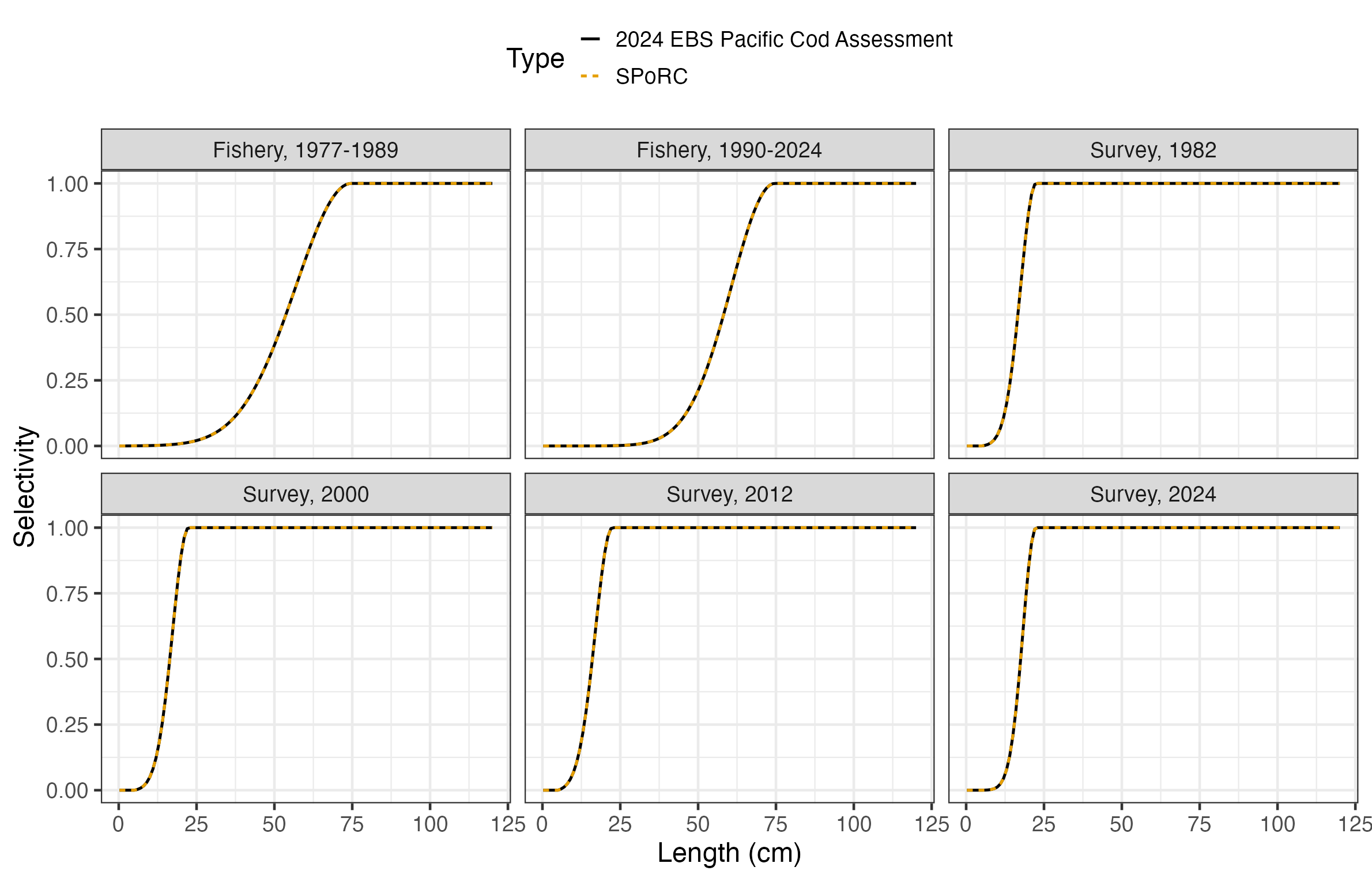

The comparison before anything is optimized, against a report file with six significant digits:

numbers at age                      1.0e-03 %
spawning biomass                    4.7e-04 %
recruitment                         7.1e-05 %
total biomass                       4.8e-04 %
predicted catch                     4.9e-04 %
survey index                        3.7e-04 %
weight at age, three definitions    5.0e-04 %
growth parameters by year           4.2e-04 %
selectivity at length, both fleets  5.0e-07  (absolute)
expected length compositions        4.5e-06  (absolute)

Weight at age is checked against all three of the assessment’s definitions, the start-of-year population weight, the mid-year weight, and the fishery’s selection weighted weight, because the three separate the growth curve from the key and the key from selectivity. Mean length at age is checked in years spanning the time-varying period, and under cohort growth a late year only reproduces if every earlier year’s increment did.

SPoRC writes each likelihood component as a proper density where the assessment drops normalizing constants, so the comparison subtracts exactly what it omits:

Component SPoRC less constants Assessment
Survey index -59.065728 -59.0658
Fishery lengths 119.364878 119.365
Survey lengths 103.268624 103.269
Survey ages 57.440030 57.4390
Recruitment, main and early 5.065827 5.06581
Initial equilibrium offset 1.907037 1.90704
Growth deviations 10.415703 10.41565
Survey selectivity deviations 8.432246 8.43225

against the assessment’s reported total of 246.832. The catch is fit almost exactly on both sides, since the assessment conditions fishing mortality on it.

Fitting and comparison

est <- fit_model(input_list$data, input_list$par, input_list$map,
                 do_optim = TRUE, newton_loops = 3, silent = TRUE)
est$sdrep <- RTMB::sdreport(est, hessian.fixed = est$he(est$env$last.par.best))

220 parameters against the assessment’s 174. The two counts reconcile exactly: SPoRC estimates 48 annual fishing mortality deviations where the hybrid solver costs the assessment nothing, and holds two parameters the assessment estimates, initial fishing mortality and the survey’s extra standard deviation, so 174+48−1−1=220174 + 48 - 1 - 1 = 220. Every other block is one for one, including the 50 growth deviations, the 43 survey selectivity deviations and the 20 initial age deviations.

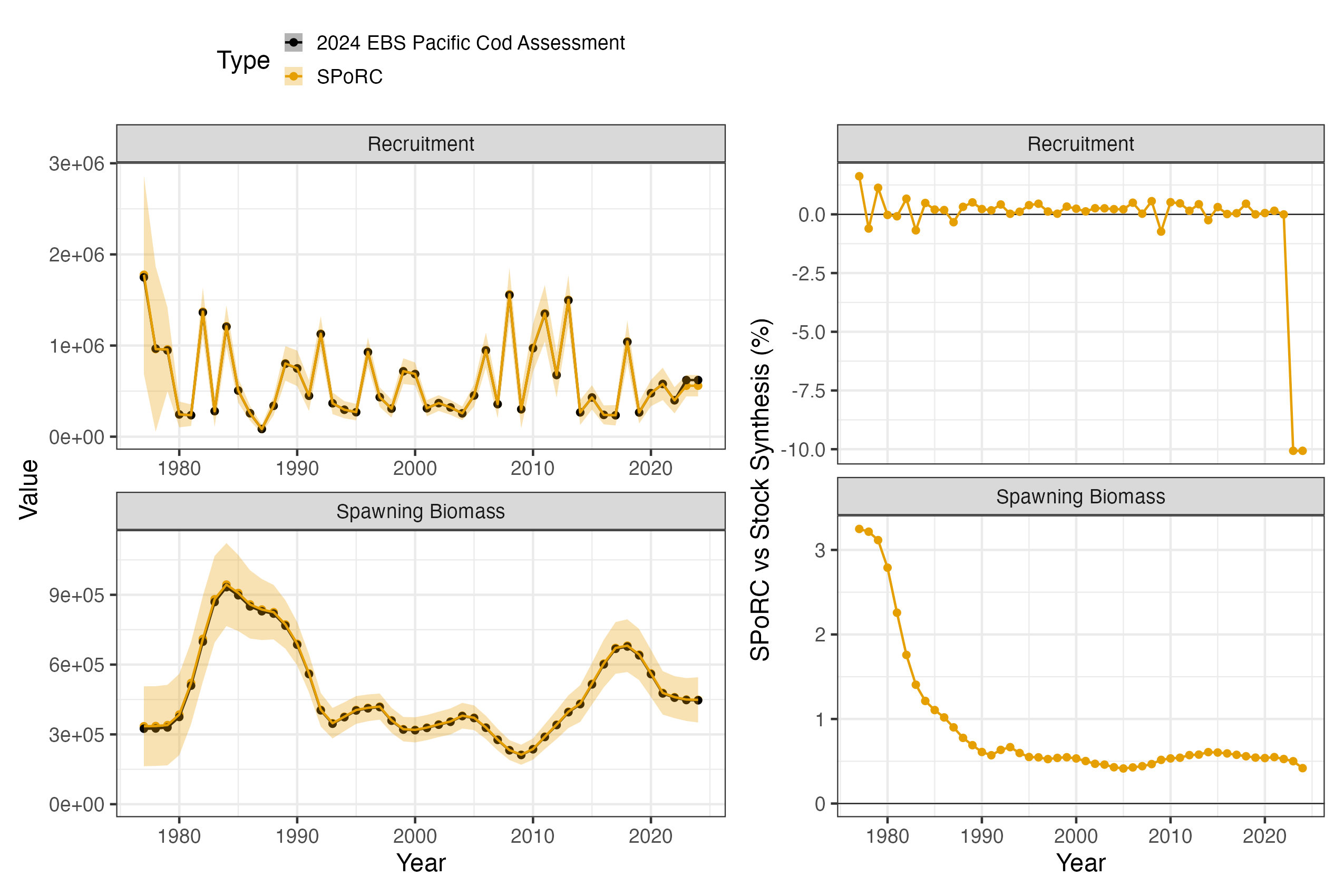

The objective falls 0.73 from the assessment’s estimate and the fit converges to a maximum gradient of 1.3×10−91.3\times10^{-9} with a positive definite Hessian.

Median Maximum
Spawning biomass +0.55 % +3.2 %
Recruitment +0.19 % -10.1 %

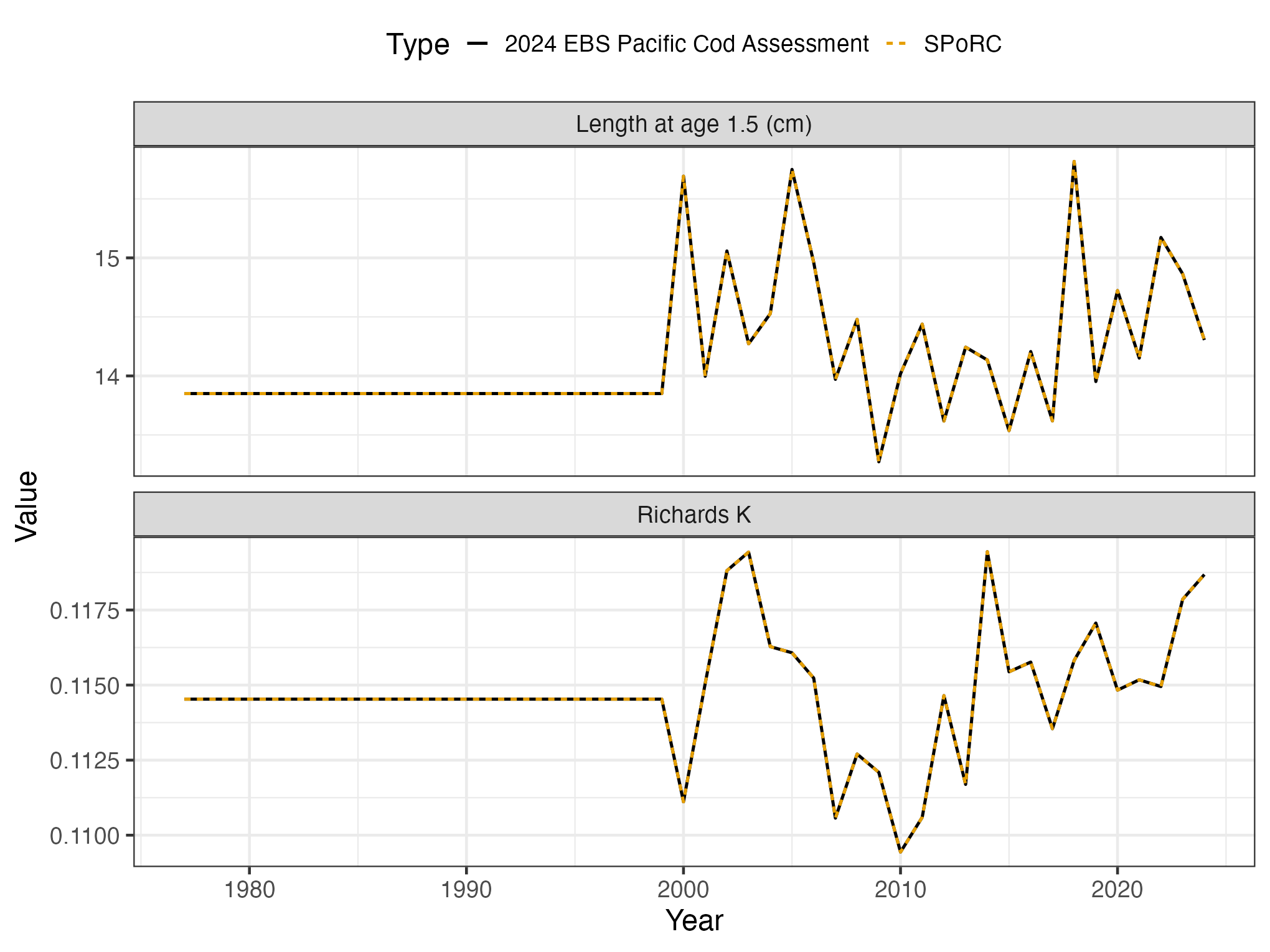

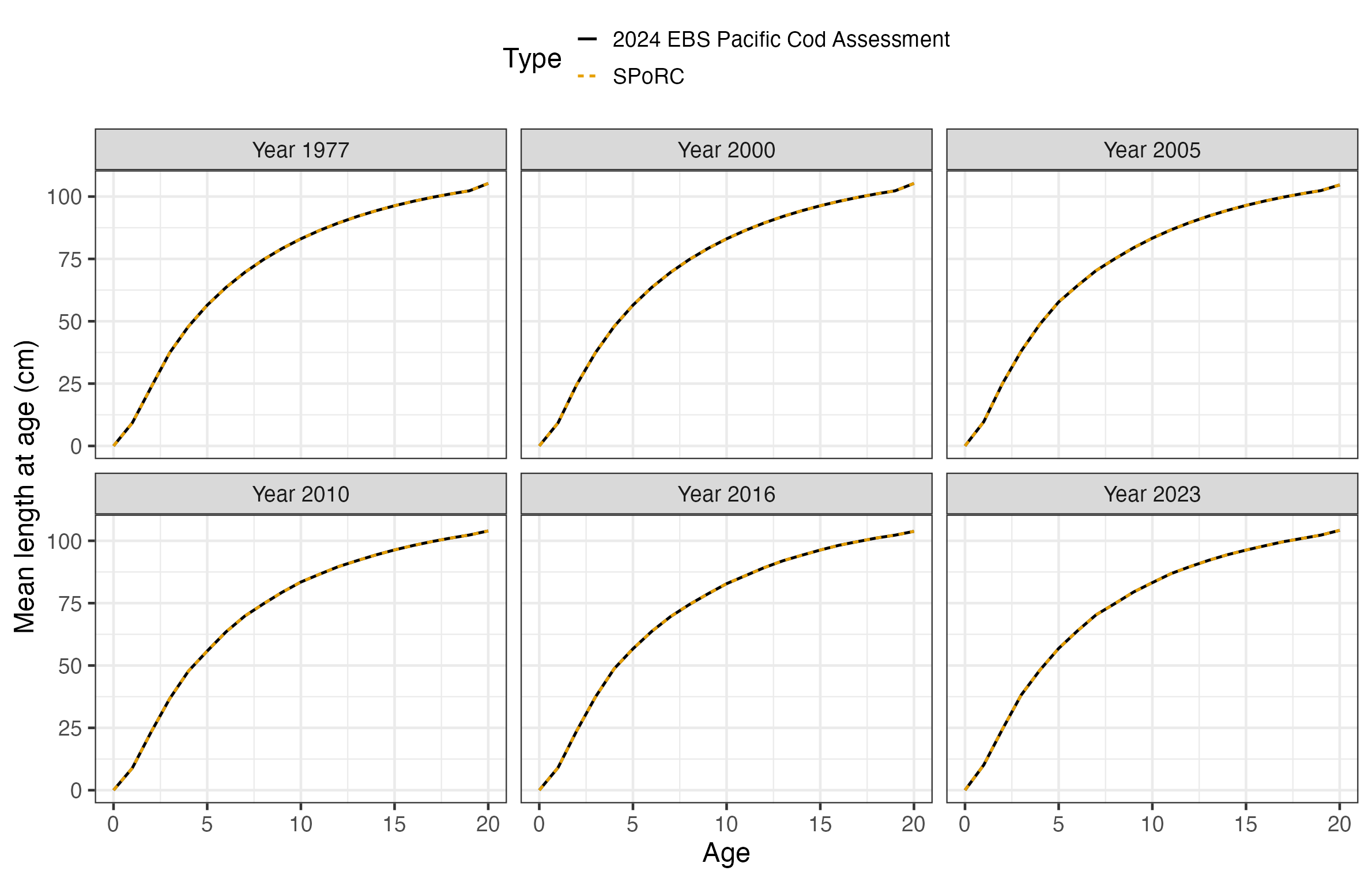

Growth returns within two tenths of a percent on every parameter, which is the check that matters for this bridge:

SPoRC Assessment
L1L_{1} at age 1.5 13.83635 13.85056
L2L_{2}, the asymptote 112.22362 112.26005
KK 0.11432 0.11453
Richards ρ\rho 1.48810 1.48560

Why the two differ

Everything in the population dynamics, the growth, the observation model and the selectivity agrees at the report’s own print precision, and so does every likelihood component. The refit moves spawning biomass by half a percent.

The difference is the recruitment convention. The assessment declares its deviations a devvector, which ADMB constrains to sum to zero, so R0R_{0} is the geometric mean recruitment of the deviation years by construction and the assessment’s main deviations sum to −5×10−14-5\times10^{-14}. SPoRC leaves its deviations free under the penalty, so R0R_{0} and their mean slide together: on refitting the mean deviation is −0.105-0.105 and ln⁡R0\ln R_{0} falls 0.106, from 13.341 to 13.235, leaving their product almost unchanged.

The survey’s extra standard deviation differs the same way. The assessment estimates it, so how much weight the index has is settled alongside everything else. SPoRC has no estimated extra standard deviation on an index, so here it is added to the observed standard errors and kept at the assessment’s value. That is not a small term: 0.0930.093 against observed standard errors of 0.0440.044 to 0.0940.094, so it roughly doubles them, and the index likelihood is unrecognizable without it. Holding it costs nothing at the assessment’s estimate, where the total standard error is identical and the index likelihood reproduces to six digits, but it fixes the index’s weight where the assessment could still move it. This is the second of the two parameters the count above holds rather than estimates, initial fishing mortality being the first.

The gradient at the assessment’s estimate is a bit larger on the growth parameters, the recruitment deviations and the fishing mortality deviations even though every reported quantity matches. That is the hybrid solver again: the assessment conditions FF on the catch rather than estimating it, so SPoRC’s partials omit the implicit dF/dθ\mathrm{d}F/\mathrm{d}\theta and its catch likelihood stands in for the exact solve.
