Case Study: GOA Rex Sole

ad_goa_rex_sole_case_study.Rmd

Overview

This case study reproduces Model 25.1 of the 2025 Gulf of Alaska rex sole assessment, run in Stock Synthesis 3, in SPoRC.

The model is two area, two sex, single season, with one fishery and one bottom trawl survey in each area. Growth is estimated separately in each area and sex from the survey’s conditional age-at-length data, which is what this case study exercises: SPoRC’s parametric growth module and its conditional age-at-length likelihood, both added for it.

Source Years Observations Likelihood
Catch, Western-Central GOA 1982–2024 43 Lognormal, CV 0.01
Survey biomass, both areas 1990–2023 31 Lognormal
Fishery length compositions 1982–2024 21 Multinomial
Fishery age compositions 1992–2022 18 Multinomial
Survey length compositions, both areas 1990–2023 31 Multinomial
Survey conditional age-at-length, both areas 1993–2019 482 length bins Multinomial

Ages run a=0a = 0 to a+=20a_{+} = 20 with ages observed from 11 to 2020, lengths are 29 two centimeter bins from 10 to 66 cm, and model years run y1=1982y_{1} = 1982 to yend=2024y_{\text{end}} = 2024. Recruitment is age 0, mean recruitment apportioned between the two areas by an estimated fraction, with σR=0.6\sigma_{R} = 0.6. The Eastern area has no catch, so its population is shaped entirely by the survey.

library(SPoRC)
library(dplyr)
library(ggplot2)
data("mlt_rg_goa_rex_data")

dat <- mlt_rg_goa_rex_data
yrs <- dat$years
n_yrs <- length(yrs)
ages <- dat$ages
n_ages <- length(ages)
n_reg <- dat$n_regions
n_sex <- dat$n_sexes
n_fish <- dat$n_fish_fleets
n_srv <- dat$n_srv_fleets

Model dimensions

input_list <- Setup_Mod_Dim(
  years = yrs,
  ages = ages,
  lens = dat$lens,
  n_regions = n_reg,
  n_sexes = n_sex,
  n_fish_fleets = n_fish,
  n_srv_fleets = n_srv,
  n_seas = 1,
  n_pop = 1,
  natal_region = 1,
  verbose = FALSE
)

Recruitment

Recruitment is age 0 at the start of the year under mean recruitment with global density dependence, apportioned to the two areas by an estimated logit. The first year’s ages 1 to 17 are set by early deviations shared across areas and sexes, and the bias ramp’s four breakpoints are given in deviation index space, where the first model year is 1.

input_list <- Setup_Mod_Rec(
  input_list = input_list,
  rec_model = "mean_rec",
  rec_dd = "global",
  rec_lag = 0,
  SR_ref_yr = 1,
  t_spawn = 0,
  sigmaR_spec = "fix",
  ln_sigmaR = array(log(dat$rec$sigmaR), dim = c(2, 1, n_reg)),
  sigmaR_switch = 1,
  do_rec_bias_ramp = 1,
  bias_year = dat$rec$bias_years - yrs[1] + 1,
  max_bias_ramp_fct = dat$rec$max_bias_adj,
  RecDevs_spec = "est_shared_pop_r",
  RecDevs_pen_center = "fixed",
  dont_est_recdev_last = 0,
  init_age_strc = 2,
  equil_init_age_strc = 1,
  InitDevs_spec = "est_shared_pop_r",
  InitDevs_sex_spec = "est_shared_s",
  InitDevs_pen_center = "fixed",
  rec_region_prop_spec = NULL,
  ln_global_R0 = dat$mle$ln_R0
)

Two of the breakpoints fall before the first model year, 1958.7 and 1988.5 become −22.3-22.3 and 7.57.5, which is how the early deviations find their ramp values. The bridge stage checks both ramps against the assessment’s own.

Biological dynamics

Natural mortality is fixed at 0.17. Maturity is logistic on age for females, with none below age 3, and males have none. Growth is estimated, one Schnute-Francis curve per area and sex, starting from the assessment’s estimates, and weight at age is derived from it through the weight-length relationship.

MatAA <- array(0, dim = c(1, n_reg, n_yrs, 1, n_ages, n_sex))
mat_f <- 1 / (1 + exp(dat$mat$slope * (ages - dat$mat$a50)))
mat_f[ages < dat$mat$first_mature_age] <- 0
for(r in 1:n_reg) for(y in 1:n_yrs) MatAA[1, r, y, 1, , 1] <- mat_f

wl <- array(NA_real_, dim = c(1, n_reg, n_sex, 2))
for(r in 1:n_reg) {
  wl[1, r, 1, ] <- dat$wtlen$fem
  wl[1, r, 2, ] <- dat$wtlen$mal
}

input_list <- Setup_Mod_Biologicals(
  input_list = input_list,
  WAA = NULL,
  MatAA = MatAA,
  fit_lengths = 1,
  SizeAgeTrans = NA,
  AgeingError = dat$AgeingError,
  M_spec = "fix",
  do_caal = 1,
  Fixed_natmort = array(dat$growth[[1]]$M, dim = c(1, n_reg, n_yrs, n_ages, n_sex)),
  addtocomp = dat$comp$addtocomp_age,
  comp_const_obs = 1,
  addtosrvidx = 0,
  addtofishidx = 0,

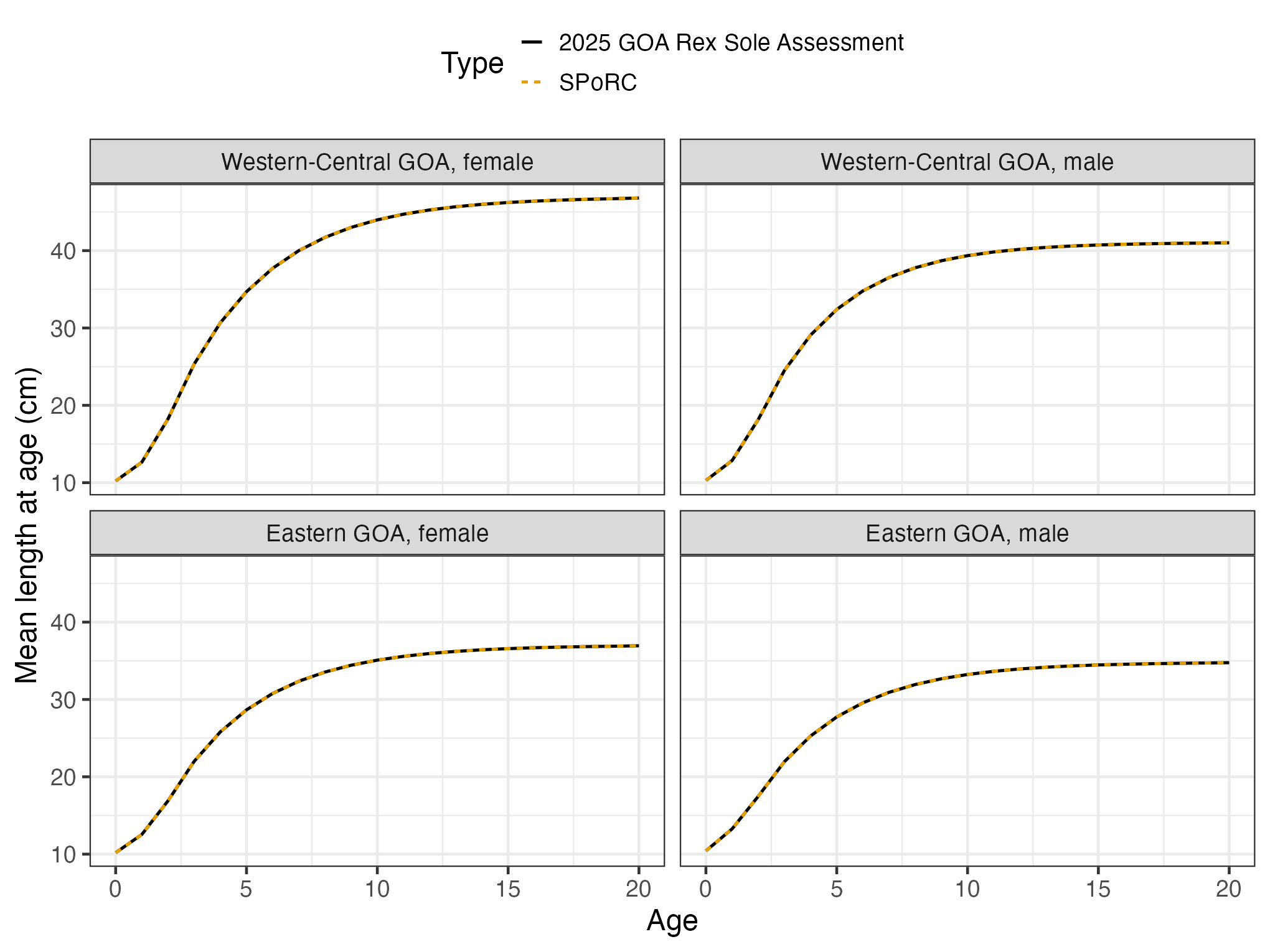

  growth_model = "vb_schnute",
  ln_growth_pars = log(dat$mle$growth),
  growth_spec = "est_all",
  growth_A1 = dat$growth_A1,
  growth_A2 = dat$growth_A2,
  growth_len_lower = dat$lens_lower,
  growth_L0 = dat$lens_lower[1],
  growth_plus_group = "mixture",
  waa_model = "wt_len",
  wt_len_pars = wl
)

WAA = NULL and SizeAgeTrans = NA because both come out of the growth module rather than going in as data. Each fleet’s age-length key and weight at age are read at that fleet’s own timing: the surveys’ at t_srv and the fishery’s at t_fish, both the middle of the year here, where the assessment reads them, and the spawning weight at t_spawn. growth_len_lower holds the lower edges of the bins, which is what the assessment’s key is built on, rather than the midpoints in lens.

The ageing error matrix is the assessment’s, a normal on observed age with the standard deviation growing with true age, binned to the observed ages 1 to 20 with the tails accumulated into the end bins.

Movement and tagging

Nothing moves, so movement is fixed at the identity and tagging is off.

input_list <- Setup_Mod_Movement(
  input_list = input_list,
  use_fixed_movement = 1,
  Fixed_Movement = NA,
  do_recruits_move = 0
)

input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

Catch and fishing mortality

Catch is in the Western-Central area only. Fishing mortality is a free parameter per year with no penalty, kept to the catch by a lognormal likelihood at CV 0.01.

input_list <- Setup_Mod_Catch_and_F(
  input_list = input_list,
  ObsCatch = dat$ObsCatch,
  UseCatch = dat$UseCatch,
  Use_F_pen = 0,
  ln_F_mean_spec = "fix",
  sigmaC_spec = "fix",
  ln_sigmaC = array(log(dat$catch_se_value), dim = c(n_reg, n_yrs, 1, n_fish))
)

Fishery compositions

The fishery has no index and has joint-sex marginal lengths and ages.

joint <- function(n) paste0("spltRjntS_Year_1-terminal_Fleet_", seq_len(n))
none <- function(n) paste0("none_Year_1-terminal_Fleet_", seq_len(n))

input_list <- Setup_Mod_FishIdx_and_Comps(
  input_list = input_list,
  ObsFishIdx = array(NA_real_, dim = c(n_reg, n_yrs, 1, n_fish)),
  ObsFishIdx_SE = array(NA_real_, dim = c(n_reg, n_yrs, 1, n_fish)),
  UseFishIdx = array(0, dim = c(n_reg, n_yrs, 1, n_fish)),
  fish_idx_type = rep("none", n_fish),
  FishIdx_LikeType = rep("lognormal", n_fish),
  ObsFishAgeComps = dat$ObsFishAgeComps,
  UseFishAgeComps = dat$UseFishAgeComps,
  ISS_FishAgeComps = dat$ISS_FishAgeComps,
  ObsFishLenComps = dat$ObsFishLenComps,
  UseFishLenComps = dat$UseFishLenComps,
  ISS_FishLenComps = dat$ISS_FishLenComps,
  FishAgeComps_LikeType = rep("Multinomial", n_fish),
  FishLenComps_LikeType = rep("Multinomial", n_fish),
  FishAgeComps_Type = joint(n_fish),
  FishLenComps_Type = joint(n_fish)
)

Survey indices and compositions

Each area’s survey has a biomass index at mid year, joint-sex length compositions, and conditional age-at-length. The assessment also holds the surveys’ marginal ages as ghost fleets, so those go in but are not fit.

The conditional age-at-length arrays are indexed by region, year, season, length bin, age, sex and fleet, with a use flag and a sample size per length bin. Srv_caal_Type is split by sex as well as region, since each row holds one sex’s otoliths.

t_srv <- array(rep(dat$t_srv, each = n_reg), dim = c(n_reg, 1, n_srv))

input_list <- Setup_Mod_SrvIdx_and_Comps(
  input_list = input_list,
  ObsSrvIdx = dat$ObsSrvIdx,
  ObsSrvIdx_SE = dat$ObsSrvIdx_SE,
  UseSrvIdx = dat$UseSrvIdx,
  srv_idx_type = rep("biom", n_srv),
  SrvIdx_LikeType = rep("lognormal", n_srv),
  ObsSrvAgeComps = dat$ObsSrvAgeComps,
  UseSrvAgeComps = array(0, dim = dim(dat$UseSrvAgeComps)),
  ISS_SrvAgeComps = dat$ISS_SrvAgeComps,
  ObsSrvLenComps = dat$ObsSrvLenComps,
  UseSrvLenComps = dat$UseSrvLenComps,
  ISS_SrvLenComps = dat$ISS_SrvLenComps,
  SrvAgeComps_LikeType = rep("none", n_srv),
  SrvLenComps_LikeType = rep("Multinomial", n_srv),
  SrvAgeComps_Type = none(n_srv),
  SrvLenComps_Type = joint(n_srv),
  ObsSrv_caal = dat$ObsSrv_caal,
  UseSrv_caal = dat$UseSrv_caal,
  ISS_Srv_caal = dat$ISS_Srv_caal,
  Srv_caal_LikeType = rep("Multinomial", n_srv),
  Srv_caal_Type = paste0("spltRspltS_Year_1-terminal_Fleet_", seq_len(n_srv)),
  t_srv = t_srv
)

Selectivity

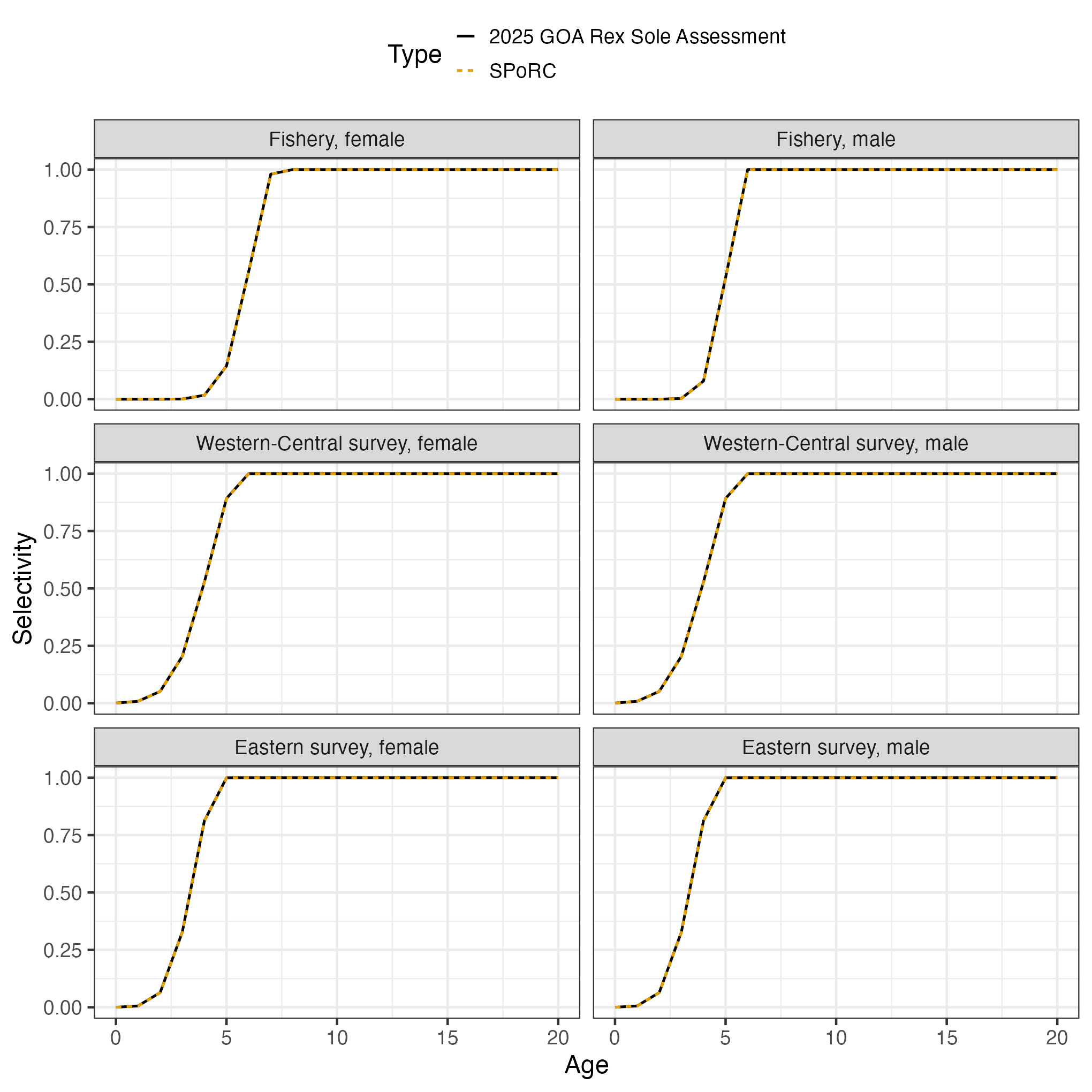

Every fleet is an age-based double normal, time invariant, with the male curve a parameter offset from the female one. The assessment leaves the ascending limb’s starting height unanchored and takes the descending limb to one, which fish_sel_dbnrml_raw and srv_sel_dbnrml_raw express.

input_list <- Setup_Mod_Fishsel_and_Q(
  input_list = input_list,
  fish_sel_model = paste0("dbnrml_Fleet_", seq_len(n_fish)),
  cont_tv_fish_sel = paste0("none_Fleet_", seq_len(n_fish)),
  fish_sel_blocks = paste0("none_Fleet_", seq_len(n_fish)),
  fish_q_blocks = paste0("none_Fleet_", seq_len(n_fish)),
  fish_fixed_sel_pars_spec = rep("est_all", n_fish),
  fish_sel_sex_offset = rep("par", n_fish),
  fish_sel_dbnrml_raw = matrix(c(1, 0), n_fish, 2, byrow = TRUE),
  fish_q_spec = rep("fix", n_fish)
)

q_prior <- data.frame(region = 1, fleet = 1, block = 1,
                      mu = exp(dat$q$prior_mean), sd = dat$q$prior_sd)

input_list <- Setup_Mod_Srvsel_and_Q(
  input_list = input_list,
  srv_sel_model = paste0("dbnrml_Fleet_", seq_len(n_srv)),
  cont_tv_srv_sel = paste0("none_Fleet_", seq_len(n_srv)),
  srv_sel_blocks = paste0("none_Fleet_", seq_len(n_srv)),
  srv_q_blocks = paste0("none_Fleet_", seq_len(n_srv)),
  srv_fixed_sel_pars_spec = rep("est_all", n_srv),
  srv_sel_sex_offset = rep("par", n_srv),
  srv_sel_dbnrml_raw = matrix(c(1, 0), n_srv, 2, byrow = TRUE),
  srv_q_spec = rep("est_all", n_srv),
  Use_srv_q_prior = 1,
  srv_q_prior = q_prior,
  t_srv = t_srv
)

The Western-Central survey’s catchability holds the assessment’s normal prior on the log scale. The Eastern survey’s is mirrored onto it by the map, which the bridge helper sets once the parameters are seeded.

Weighting

Francis weights, one per fleet, on the lengths and on the ages, with the conditional age-at-length taking each survey’s age weight.

wl_f <- dat$var_adj_len[dat$fish_fleets]; wa_f <- dat$var_adj_age[dat$fish_fleets]
wl_s <- dat$var_adj_len[dat$srv_fleets]; wa_s <- dat$var_adj_age[dat$srv_fleets]

per_fleet <- function(w, n_fl, extra = NULL) {
  d <- c(n_reg, n_yrs, 1, if(!is.null(extra)) extra, n_sex, n_fl)
  arr <- array(1, dim = d)
  for(f in seq_len(n_fl)) if(is.null(extra)) arr[, , , , f] <- w[f] else arr[, , , , , f] <- w[f]
  arr
}

input_list <- Setup_Mod_Weighting(
  input_list = input_list,
  Wt_Catch = 1, Wt_FishIdx = 0, Wt_SrvIdx = 1, Wt_Rec = 1, Wt_F = 1, Wt_Tagging = 0,
  Wt_FishAgeComps = per_fleet(wa_f, n_fish),
  Wt_FishLenComps = per_fleet(wl_f, n_fish),
  Wt_SrvAgeComps = per_fleet(rep(1, n_srv), n_srv),
  Wt_SrvLenComps = per_fleet(wl_s, n_srv),
  Wt_Srv_caal = per_fleet(wa_s, n_srv, extra = length(dat$lens))
)

Starting at the assessment’s estimate

Every parameter is set to the assessment’s estimate and the model is evaluated there without optimizing. The bridge helper does this in one call; the pieces are the recruitment and early deviations less their bias corrections, log fishing mortality as a fixed mean plus deviations, the shared catchability, and the growth and selectivity parameters in SPoRC’s transforms.

source(system.file("tests", "testthat", "helper-bridge_goa_rex.R", package = "SPoRC"))

input_list <- seed_goa_rex_mle(build_goa_rex_input(dat), dat)
seed <- fit_model(input_list$data, input_list$par, input_list$map,
                  do_optim = FALSE, silent = TRUE)

The comparison before anything is optimized, against a report file with six significant digits:

numbers at age                       5.1e-03 %
spawning biomass                     4.7e-03 %
recruitment                          5.0e-03 %
total biomass, January 1             4.8e-03 %
predicted catch                      5.0e-03 %
survey indices                       4.7e-03 %
mean length at age                   4.9e-04 %
SD of length at age                  4.7e-04 %
weight at age                        9.4e-04 %
bias ramps, main and early           1e-06    (absolute)
selectivity, all six curves          2.7e-06  (absolute)
mid-season age-length key            1.8e-06  (absolute)
expected conditional age-at-length   1e-04    (absolute)

SPoRC writes each likelihood component as a proper density where the assessment drops normalizing constants and renormalizes after its composition constant, so the comparison subtracts exactly what it omits:

Component SPoRC less constants Assessment Difference
Survey indices -16.624337 -16.624600 2.6×10−42.6\times10^{-4}
Length compositions 173.730454 173.730000 4.5×10−44.5\times10^{-4}
Age compositions, marginal and conditional 472.900640 472.878000 2.3×10−22.3\times10^{-2}
Recruitment deviations, early and main -3.195058 -3.195050 −7.8×10−6-7.8\times10^{-6}
Catchability prior 0.161410 0.161411 −5.1×10−7-5.1\times10^{-7}

The total comes to 626.9731 against the assessment’s 626.9510. The whole difference sits in the age compositions, 5×10−55\times10^{-5} of their value, and is the conditional age-at-length rows, where the assessment’s constant is added before the row is filtered to the observed bins and SPoRC’s after.

Fitting and comparison

est <- fit_model(input_list$data, input_list$par, input_list$map,
                 do_optim = TRUE, newton_loops = 3, silent = TRUE)
est$sdrep <- RTMB::sdreport(est, hessian.fixed = est$he(est$optim$par))

132 parameters, 20 of them growth and 22 selectivity, which is the assessment’s own count. The objective falls by 0.10 from the assessment’s estimate, and the fitted selectivity stays within 1×10−31\times10^{-3} of the assessment’s on every curve.

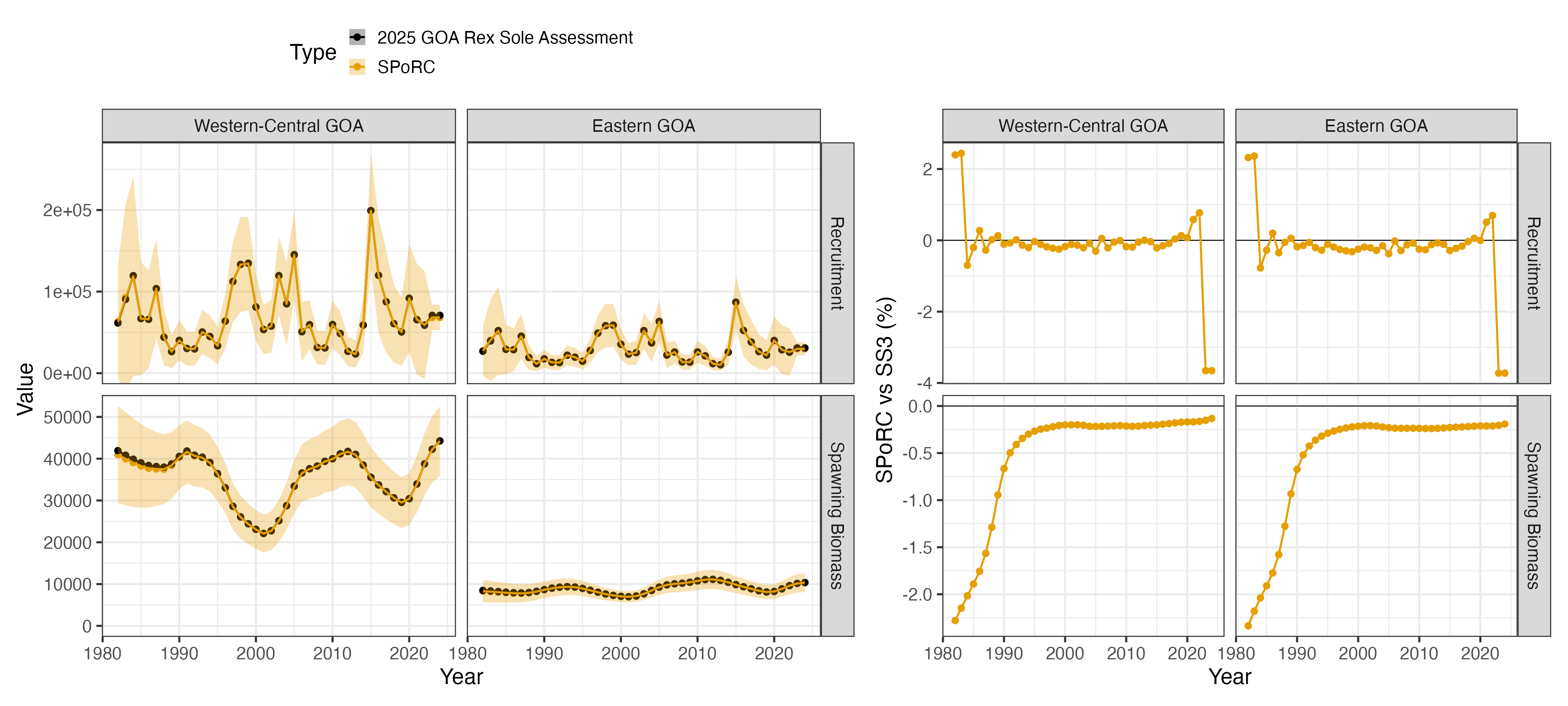

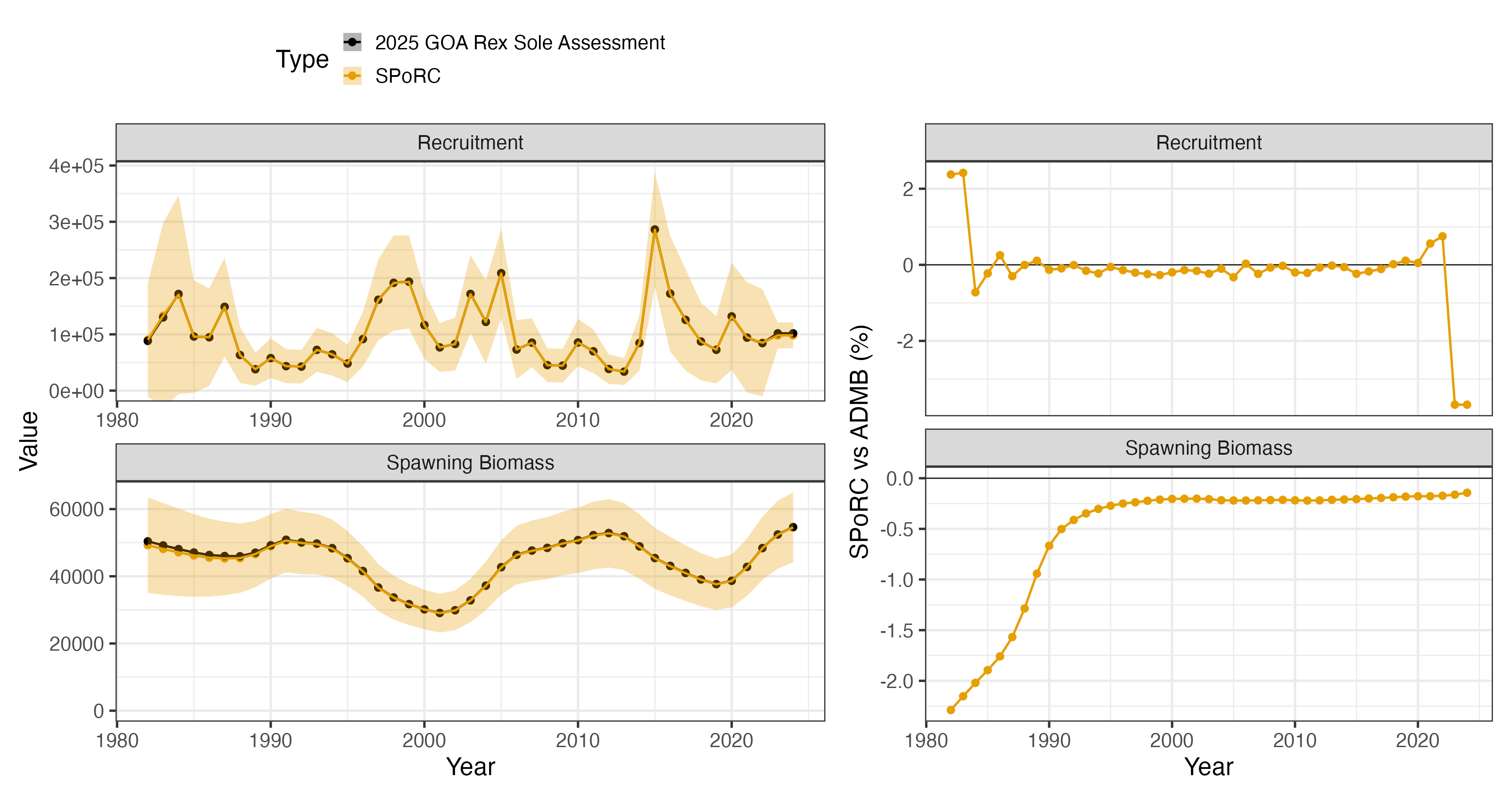

Median Maximum
Spawning biomass, total -0.22 % 2.3 %
Recruitment, total -0.13 % 3.7 %
Spawning biomass, Western-Central GOA -0.21 % 2.3 %
Spawning biomass, Eastern GOA -0.24 % 2.3 %
SPoRC Assessment
ln⁡R0\ln R_{0} 11.49400 11.53150
Catchability 1.09617 1.09349
Eastern apportionment, logit -0.82909 -0.82836
L1L_{1}, Western-Central female 13.8667 13.8634
L2L_{2}, Western-Central female 46.7532 46.7417
KK, Western-Central female 0.28356 0.28384
L1L_{1}, Eastern female 13.7195 13.7239
L2L_{2}, Eastern female 36.9039 36.9021
KK, Eastern female 0.29256 0.29252

Why the two differ

Everything in the population dynamics, the growth, the observation model and the selectivity agrees at the assessment report’s own print precision, and so does every likelihood component but the conditional age-at-length constant. The refit moves spawning biomass by a quarter of a percent and ln⁡R0\ln R_{0} by 0.04.

The difference is the sum-to-zero constraint on the assessment’s recruitment deviations. Stock Synthesis declares them a devvector, so the 41 deviations of 1982 to 2022 sum to zero and R0R_{0} is the mean recruitment of those years by construction. SPoRC estimates its deviations freely under the penalty, so the mean recruitment of the years with deviations can differ from R0R_{0}, which also sets the initial equilibrium and the two terminal years without deviations. Under mean recruitment with no stock-recruit curve the data prefer about two percent more recruitment in the deviation years, so R0R_{0} falls almost 4 percent with the deviations rising to match, and the early years, set by the prior on the initial-age deviations rather than by data, follow R0R_{0} part of the way.
