Case Study: Bering Sea and Aleutian Islands Pacific Ocean Perch

aa_bsai_pacific_ocean_perch_case_study.Rmd

Overview

This case study reproduces the 2024 Bering Sea and Aleutian Islands Pacific ocean perch assessment in SPoRC. Every structural choice below follows the assessment rather than SPoRC’s defaults. It is the most structurally involved of the five rockfish case studies: two survey fleets, a first year equilibrium under a fixed historical fishing mortality, and a bicubic spline fishery selectivity surface over year and age.

Source Years Observations Likelihood
Catch 1960–2024 65 Lognormal, weighted
Aleutian Islands survey biomass 1991–2024 14 Lognormal
Eastern Bering Sea slope survey biomass 2002–2016 6 Lognormal
Fishery age compositions 1981–2023 22 Multinomial
Fishery length compositions 1964–2022 32 Multinomial
Aleutian Islands survey age compositions 1991–2022 13 Multinomial
Eastern Bering Sea survey age compositions 2002–2016 6 Multinomial
Aleutian Islands survey length compositions 2024 1 Multinomial

Model ages run 3 to 46 with a plus group, while the assessment reports over observed ages 3 to 40 with its last column an age 40 plus aggregation. Lengths run 15 to 39 cm.

library(SPoRC)
library(dplyr)
library(ggplot2)
data("sgl_rg_bsai_pop_data")

dat <- sgl_rg_bsai_pop_data
yrs <- dat$years
n_yrs <- length(yrs)
n_obs_ages <- length(dat$obs_ages)
nsel <- dat$nselages

Model dimensions

Because the model is single region and single sex, the population, region, season and sex subscripts used in the model equations all collapse to one, and are dropped from the notation below.

input_list <- Setup_Mod_Dim(
  n_pop = dat$n_pop,
  years = yrs,
  ages = dat$ages,
  lens = dat$lens,
  n_regions = dat$n_regions,
  n_sexes = dat$n_sexes,
  n_fish_fleets = dat$n_fish_fleets,
  n_srv_fleets = dat$n_srv_fleets,
  n_seas = dat$n_seas,
  verbose = FALSE
)

Recruitment and the initial age structure

Recruitment is a mean with annual deviations rather than a stock recruit function, and the last three years take the mean outright.

The first year sits in equilibrium under a fixed historical fishing mortality of 0.010.01, which the assessment holds independent of the estimated mean FF. init_F_form = "abs" is what keeps the two separate. Under the alternative "prop" form the initial FF would be a multiple of exp⁡(μFsh)\exp(\mu^{\text{Fsh}}), so raising the estimated mean would deplete the initial age structure, which is not what the assessment does.

N1,a=R0exp⁡(−∑a′<a[M+FinitSela′])N_{1,a} = R_{0}\exp\left(-\sum_{a' < a}\left[M + F^{\text{init}}\text{Sel}_{a'}\right]\right)

bias_year is indexed in deviation space rather than in calendar years, so c(1, 1, n_yrs + 1, n_yrs + 1) puts the whole series in the fully bias corrected limb of the ramp. That centers the recruitment penalty on −σR2/2-\sigma_{R}^{2}/2, which is what the shifted deviations in the seeding section below require.

init_F_par <- array(log(1e-10), dim = c(dat$n_regions, dat$n_seas, dat$n_fish_fleets))
init_F_par[1, 1, 1] <- log(dat$mle$historic_F)

input_list <- Setup_Mod_Rec(
  input_list = input_list,
  rec_model = "mean_rec",
  do_rec_bias_ramp = 1,
  bias_year = c(1, 1, n_yrs + 1, n_yrs + 1),
  sigmaR_switch = 1,
  ln_sigmaR = array(log(c(dat$sigmaR, dat$sigmaR)), dim = c(2, dat$n_pop, dat$n_regions)),
  dont_est_recdev_last = dat$fixedrec,
  equil_init_age_strc = "equil",
  sigmaR_spec = "fix",
  init_age_strc = 1,
  init_F_form = "abs",
  init_F_spec = "fix",
  init_F_par = init_F_par,
  t_spawn = (dat$spawn_mo - 1) / 12,
  use_rinit = 1
)

Biological dynamics

Natural mortality is estimated under a lognormal prior. The assessment states its prior as a mean of 0.050.05 on the natural scale, so the median supplied to SPoRC is shifted by exp⁡(−CV2/2)\exp(-\text{CV}^{2}/2) to put the prior mean where the assessment puts it.

Maturity is estimated inside the assessment’s template and is absent from its report object, so the fitted logistic is rebuilt when the data object is constructed and kept fixed here. That is why the assessment’s maturity likelihood is removed from its side of the objective in the crosswalk below.

input_list <- Setup_Mod_Biologicals(
  input_list = input_list,
  WAA = dat$WAA,
  MatAA = dat$MatAA,
  fit_lengths = 1,
  SizeAgeTrans = dat$SizeAgeTrans,
  AgeingError = dat$AgeingError,
  M_spec = "est_ln_M",
  Use_M_prior = 1,
  M_prior = data.frame(popblk = 1, regionblk = 1, yearblk = 1, ageblk = 1, sexblk = 1,
                       mu = dat$mean_M * exp(-dat$cv_M^2 / 2), sd = dat$cv_M),
  addtosrvidx = 1e-13,
  addtocomp = 1e-13
)

Movement and tagging

The model is single region, so movement is an identity matrix and no tagging data are used. Both still have to be declared.

input_list <- Setup_Mod_Movement(input_list = input_list, use_fixed_movement = 1,
                                 Fixed_Movement = NA, do_recruits_move = 0)

input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

Catch and fishing mortality

The assessment writes its catch and F statements as weighted sums of squares with weights 500500 and 0.10.1. A weighted sum of squares and a normal likelihood with a fixed standard deviation are the same statement up to a constant, related by σ=1/2w\sigma = 1/\sqrt{2w}, so both weights are kept inside the standard deviations rather than applied outside the sums.

suppressWarnings(
  input_list <- Setup_Mod_Catch_and_F(
    input_list = input_list,
    ObsCatch = dat$ObsCatch,
    UseCatch = dat$UseCatch,
    Use_F_pen = 1,
    sigmaC_spec = "fix",
    ln_sigmaC = array(log(sqrt(1 / (2 * dat$catch_wt))),
                      dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
    ln_sigmaF = array(log(sqrt(1 / (2 * dat$fmort_wt))),
                      dim = c(dat$n_regions, dat$n_seas, dat$n_fish_fleets))
  )
)

Fishery compositions

There is no fishery index in this assessment, only compositions, so fish_idx_type is "none" and the index arrays are declared empty.

input_list <- Setup_Mod_FishIdx_and_Comps(
  input_list = input_list,
  ObsFishIdx = array(NA, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  ObsFishIdx_SE = array(NA, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  UseFishIdx = array(0, dim = c(dat$n_regions, n_yrs, dat$n_seas, dat$n_fish_fleets)),
  ObsFishAgeComps = dat$ObsFishAgeComps,
  UseFishAgeComps = dat$UseFishAgeComps,
  ISS_FishAgeComps = dat$ISS_FishAgeComps,
  ObsFishLenComps = dat$ObsFishLenComps,
  UseFishLenComps = dat$UseFishLenComps,
  ISS_FishLenComps = dat$ISS_FishLenComps,
  fish_idx_type = "none",
  FishAgeComps_LikeType = "Multinomial",
  FishLenComps_LikeType = "Multinomial",
  FishAgeComps_Type = "agg_Year_1-terminal_Fleet_1",
  FishLenComps_Type = "agg_Year_1-terminal_Fleet_1"
)

Survey indices and compositions

Two survey fleets are declared, the Aleutian Islands bottom trawl survey and the eastern Bering Sea slope survey, both fit to biomass and both lognormal. Every argument is a vector over the two fleets.

input_list <- Setup_Mod_SrvIdx_and_Comps(
  input_list = input_list,
  ObsSrvIdx = dat$ObsSrvIdx,
  ObsSrvIdx_SE = dat$ObsSrvIdx_SE,
  UseSrvIdx = dat$UseSrvIdx,
  ObsSrvAgeComps = dat$ObsSrvAgeComps,
  ISS_SrvAgeComps = dat$ISS_SrvAgeComps,
  UseSrvAgeComps = dat$UseSrvAgeComps,
  ObsSrvLenComps = dat$ObsSrvLenComps,
  UseSrvLenComps = dat$UseSrvLenComps,
  ISS_SrvLenComps = dat$ISS_SrvLenComps,
  srv_idx_type = rep("biom", dat$n_srv_fleets),
  SrvAgeComps_LikeType = rep("Multinomial", dat$n_srv_fleets),
  SrvLenComps_LikeType = rep("Multinomial", dat$n_srv_fleets),
  SrvAgeComps_Type = paste0("agg_Year_1-terminal_Fleet_", 1:dat$n_srv_fleets),
  SrvLenComps_Type = paste0("agg_Year_1-terminal_Fleet_", 1:dat$n_srv_fleets)
)

Fishery selectivity and catchability

Fishery selectivity is a bicubic spline over a five year by five age node grid, exponentiated with no normalization:

log⁡Sely,aFsh=(𝐖yrΘ𝐖bin⊤)y,a\log \text{Sel}_{y,a}^{\text{Fsh}} = \left(\mathbf{W}^{\text{yr}}\,\Theta\,\mathbf{W}^{\text{bin}\top}\right)_{y,a}

where Θ\Theta is the 5×55\times5 matrix of node values and the two 𝐖\mathbf{W} matrices are the spline bases over years and over ages.

SelStyr and NSelBins in the specification string are not cosmetic. They set the year range and the bin count that the smoothness penalties normalize by, and they impose the assessment’s two edge holds: selectivity is flat before 1964 and flat beyond age 40. Getting either wrong changes both the surface and the penalty.

fish_sel_spec <- paste0("bicubic_Bin_", dat$fsh_age_nodes,
                        "_Yr_", dat$fsh_yr_nodes,
                        "_Fleet_1",
                        "_SelStyr_", dat$fsh_sel_styr,
                        "_NSelBins_", dat$nselages)

input_list <- Setup_Mod_Fishsel_and_Q(
  input_list = input_list,
  cont_tv_fish_sel = "none_Fleet_1",
  fish_sel_blocks = "none_Fleet_1",
  fish_sel_model = fish_sel_spec,
  fish_q_blocks = "none_Fleet_1",
  fish_fixed_sel_pars_spec = "est_all",
  fish_q_spec = "fix",
  use_fixed_fish_sel = 0
)

Survey selectivity and catchability

Survey selectivity is logistic in both fleets, using the slope and a50a_{50} parameterization:

Sela=11+exp⁡[−k(a−a50)]\text{Sel}_{a} = \dfrac{1}{1 + \exp\left[-k\left(a - a_{50}\right)\right]}

Only the Aleutian Islands survey has a catchability prior. Supplying a single row for fleet 1 in srv_q_prior is what restricts it to that fleet; the eastern Bering Sea catchability is estimated freely.

input_list <- Setup_Mod_Srvsel_and_Q(
  input_list = input_list,
  cont_tv_srv_sel = paste0("none_Fleet_", 1:dat$n_srv_fleets),
  srv_sel_blocks = paste0("none_Fleet_", 1:dat$n_srv_fleets),
  srv_sel_model = paste0("logist1_Fleet_", 1:dat$n_srv_fleets),
  srv_q_blocks = paste0("none_Fleet_", 1:dat$n_srv_fleets),
  srv_fixed_sel_pars_spec = rep("est_all", dat$n_srv_fleets),
  srv_q_spec = rep("est_all", dat$n_srv_fleets),
  Use_srv_q_prior = 1,
  srv_q_prior = data.frame(region = 1, block = 1, fleet = 1,
                           mu = dat$mean_q[1] * exp(-dat$cv_q[1]^2 / 2), sd = dat$cv_q[1]),
  t_srv = array(0.5, dim = c(dat$n_regions, dat$n_seas, dat$n_srv_fleets))
)

Weighting and selectivity penalties

Beyond the data weights, the assessment has smoothness penalties on the bicubic surface, its lambdas 3 to 6, plus a mean centering term its template hardcodes. Those five terms ship in the data object as sel_pen_wts and are passed straight through. Survey selectivity is logistic with no deviations, so it has no smoothness penalty and srv_sel_pen_wts is NULL.

input_list <- Setup_Mod_Weighting(
  input_list = input_list,
  Wt_Catch = 1, Wt_FishIdx = 1, Wt_SrvIdx = 1,
  Wt_Rec = dat$lam_rec, Wt_F = 1, Wt_Tagging = 0,
  Wt_FishAgeComps = dat$Wt_FishAgeComps,
  Wt_FishLenComps = dat$Wt_FishLenComps,
  Wt_SrvAgeComps = dat$Wt_SrvAgeComps,
  Wt_SrvLenComps = dat$Wt_SrvLenComps,
  fish_sel_pen_wts = dat$sel_pen_wts,
  srv_sel_pen_wts = NULL
)

Starting at the ADMB estimate

Before optimizing anything, check that the model is reproduced at a known point. Setting every parameter to the assessment’s maximum likelihood estimate and evaluating there separates a specification error from an optimization difference: if the population and the likelihood agree at the ADMB solution, the two models are the same model.

Two conversions are needed. The assessment builds its three deviation free terminal recruits as exp⁡(log⁡R¯+σR2/2)\exp(\overline{\log R} + \sigma_{R}^{2}/2) while leaving the estimated years raw, and it starts the first year equilibrium from the mean of the lognormal rather than from exp⁡(log⁡Rinit)\exp(\log R^{\text{init}}). With both corrections in ln_global_R0 and ln_rinit and shifting every seeded deviation down by the same amount reproduces the recruitment series, the initial age structure, and the penalty value at once.

The second is the node grid orientation. The assessment declares its bicubic grid with year nodes as the outer dimension and writes the parameter file row major, so the file’s five rows are age nodes. SPoRC wants [year node×age node][\text{year node} \times \text{age node}] flattened column major, hence the transpose.

mle <- dat$mle
s2 <- dat$sigmaR^2 / 2

input_list$par$ln_global_R0[] <- mle$mean_log_rec + s2
input_list$par$ln_rinit <- mle$log_rinit + s2
input_list$par$ln_RecDevs[1, 1, ] <- mle$rec_dev - s2
input_list$par$ln_M[] <- log(mle$M)
input_list$par$ln_F_mean[] <- mle$log_avg_fmort
input_list$par$ln_F_devs[1, , 1, 1] <- mle$fmort_dev
input_list$par$ln_srv_q[1, 1, 1] <- log(mle$q_srv[1])
input_list$par$ln_srv_q[1, 1, 2] <- log(mle$q_srv[2])

for(sf in 1:dat$n_srv_fleets) {
  input_list$par$srv_fixed_sel_pars[1, , 1, 1, sf] <-
    c(log(mle$sel_a50_srv[sf]), log(mle$sel_aslope_srv[sf]))
} # end sf loop

node_admb <- matrix(mle$fsh_sel_par, nrow = dat$fsh_age_nodes,
                    ncol = dat$fsh_yr_nodes, byrow = TRUE)
input_list$par$fish_fixed_sel_pars[1, , 1, 1, 1] <- as.vector(t(node_admb))

obj <- fit_model(input_list$data, input_list$par, input_list$map,
                 do_optim = FALSE, silent = TRUE)
r <- obj$rep

One reporting convention has to be undone before comparing selectivity. The assessment divides selectivity by its within year maximum and multiplies FF by the same factor, which leaves their product invariant, but its internal selectivity is the raw exponentiated surface. Putting both sides on the reported convention makes this the sharpest single check in the bridge: it covers the node orientation, the 1964 edge hold and the age 40 edge hold across all 65×3865\times38 cells at once.

normalize <- function(m) m / apply(m, 1, max)
sel_bridge <- normalize(r$fish_sel[1, 1, 1:n_yrs, 1, 1:nsel, 1, 1])
fishery selectivity surface max pct diff: 4.5e-04
numbers at age              max pct diff: 3.4e-04
spawning biomass            max pct diff: 4.1e-04
recruitment                 max pct diff: 3.1e-04
total biomass               max pct diff: 2.5e-04

Total biomass needs a note. SPoRC’s reported Total_Biom is spawning time biomass and holds the exp⁡(−Ztspawn)\exp(-Z t^{\text{spawn}}) discount, while the assessment reports January 1 biomass. The like for like quantity is rebuilt from numbers at age, which is what the figure above compares. Comparing the two reported quantities directly instead is a 6 percent difference that says nothing about the model.

The likelihood is checked the same way. SPoRC writes each component as a proper density while the assessment drops normalizing constants, so a like for like comparison subtracts exactly the constants the assessment omits.

Component SPoRC Assessment
Catch sum of squares 0.0572 0.000114
Aleutian Islands survey index 8.10752 8.10061
Eastern Bering Sea survey index 1.99709 1.99677
Fishery age compositions 295.378 295.378
Fishery length compositions 195.915 195.915
Aleutian Islands survey age compositions 176.202 176.208
Eastern Bering Sea survey age compositions 74.1169 74.1183
Aleutian Islands survey length compositions 7.6463 7.4970
Recruitment 11.2427 11.2427
F regularity 7.27706 7.27706
Selectivity penalty 111.454 111.454
MM prior 0.341077 0.341077
Aleutian Islands qq prior 0.289064 0.289064
Like for like total 890.0234 889.8747

Two components do not land exactly. The catch statement is numerically zero on both sides against an objective of 890890: the assessment fits catch to 10−410^{-4} and SPoRC to 6×10−26\times10^{-2}, which is a difference in how near exactly catch is driven rather than a difference in the statement. The Aleutian Islands survey contributes a single year of length compositions, and its gap is 0.150.15 on a term of 7.57.5, which is a 0.070.07 percent difference in the predicted proportions with an applied sample size of 224224. That is consistent with the multinomial offset convention rather than with the size at age transition, and it is 0.0170.017 percent of the objective.

Fitting and comparison

est <- fit_model(input_list$data, input_list$par, input_list$map,
                 random = NULL, newton_loops = 3, silent = TRUE)
est$sdrep <- RTMB::sdreport(est)
free parameters: 162
final jnLL: 886.9266   max |gradient|: 1.7e-11
pdHess: TRUE
Quantity Median difference Maximum difference
Spawning biomass 0.025 % 0.173 %
Recruitment, estimated years 0.084 % 1.08 %

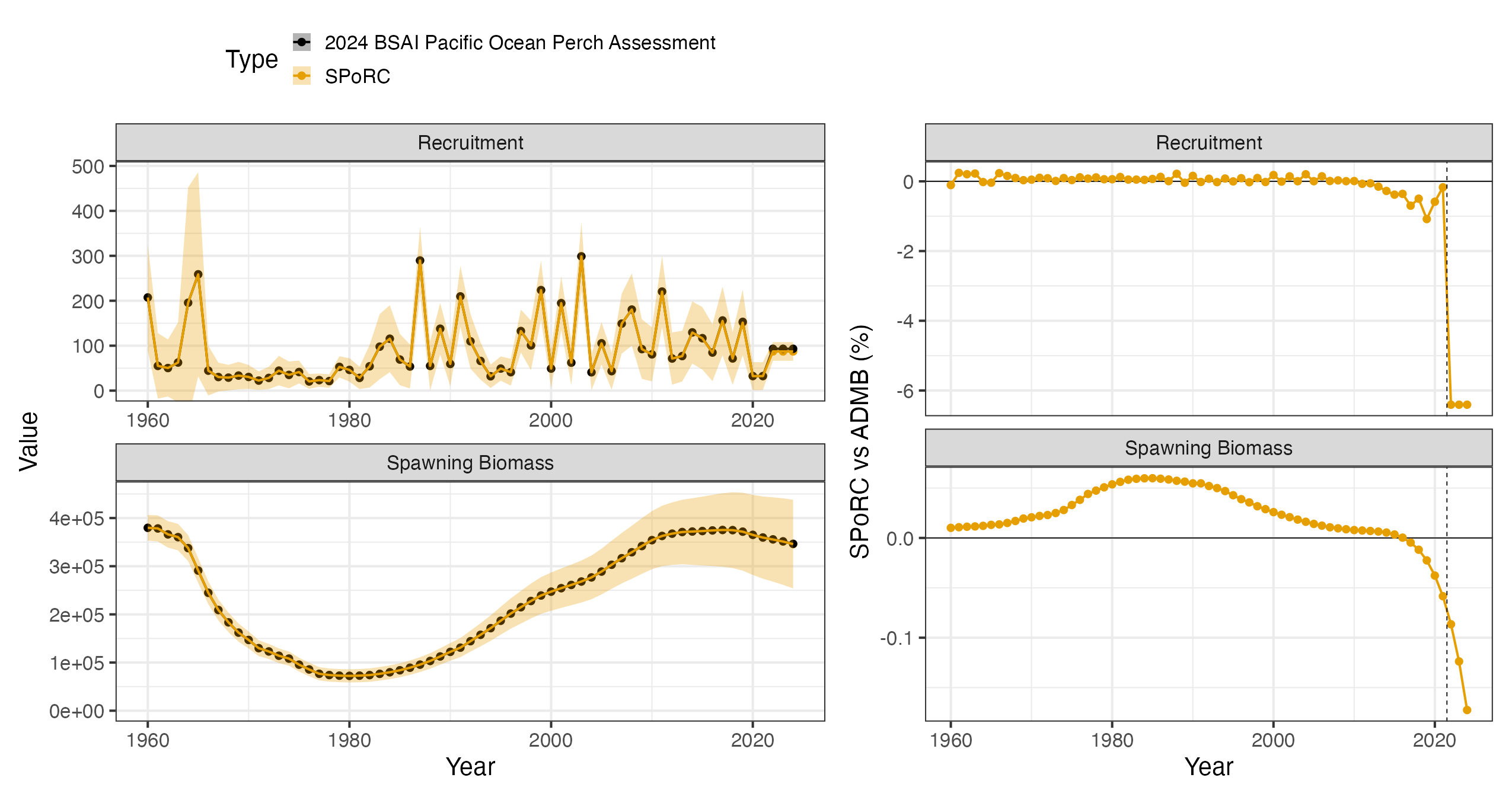

The dashed rule marks where the estimated recruitment deviations stop. Over the three terminal years the two models differ by a constant factor of 1.0684521.068452, and the shift in the estimated recruitment level between the two fits accounts for 1.0684511.068451 of it. Those recruits are deviation free, so they hold the level and nothing else; the assessment’s sum to zero dev_vector cannot move the level while SPoRC’s free deviations can.

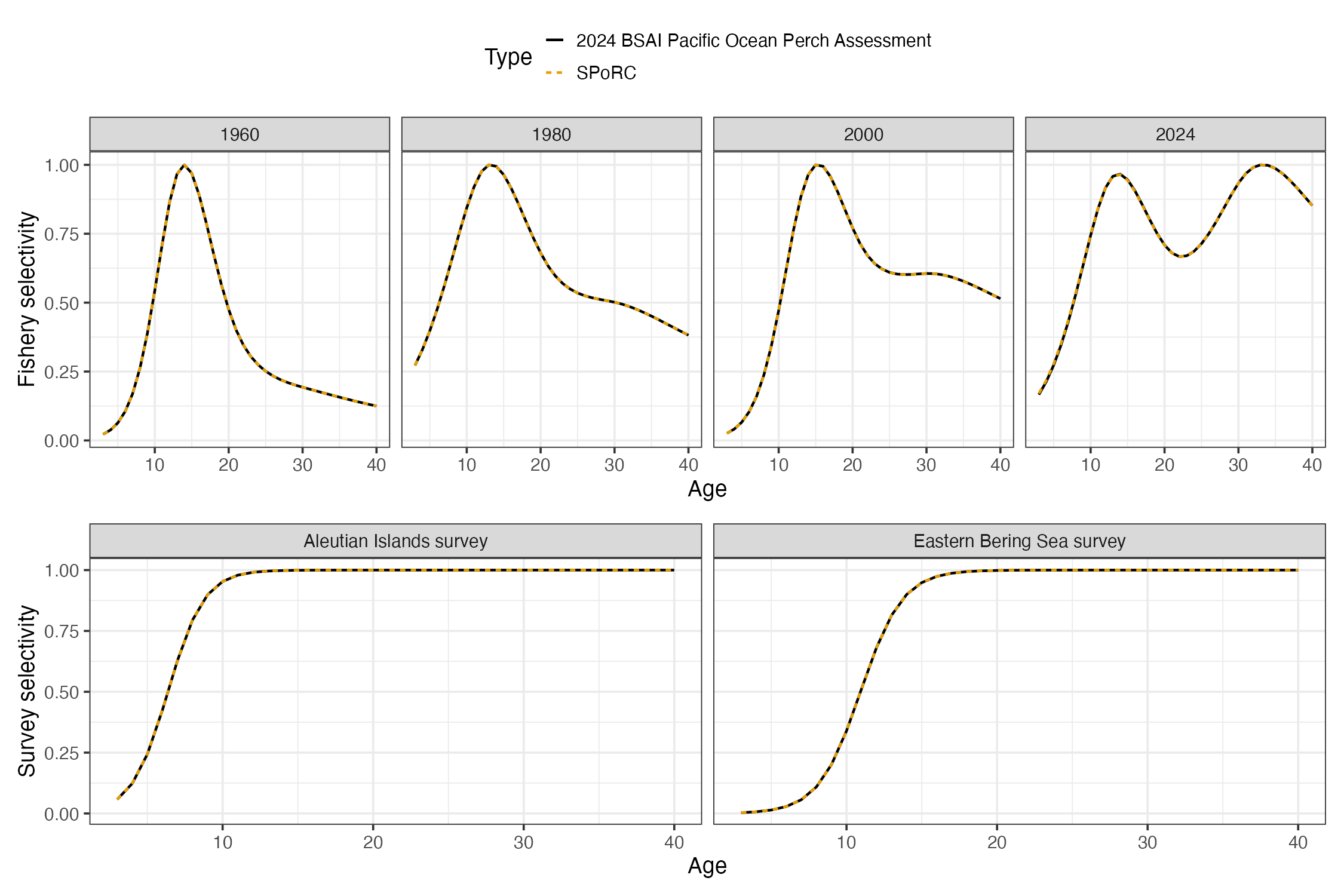

Fishery selectivity is a bicubic surface over year and age, kept flat before 1964 and past the last selectivity node, so a handful of years holds the whole shape change. Four years are shown; the full 65×3865\times38 surface is what the bridge test checks. Survey selectivity is logistic and time invariant in each of the two surveys.
