One-Step-Ahead (OSA) Residuals

u_osa_residuals.Rmd

Age-disaggregated observations

Catch at age, discards at age, and the survey index at age all support one-step-ahead residuals. Pass the at-age name as index_source:

osa <- get_osa(model = fitted, data = input_list$data, index_source = "CatchAA")
plot_resids(osa)

Valid at-age sources are "CatchAA", "DiscardAA" and "SrvIdxAA", each with a pop = TRUE variant. The returned data frame has an extra age column, which the residual plots facet on.

Raw (Pearson) residuals from compositional, count, and index data can be difficult to interpret given that multinomial/Dirichlet-multinomial proportions are correlated within a year (they must sum to one), tag recapture counts are correlated across cohorts and liberty classes, and even continuous index/catch observations are correlated through the shared state variables (abundance, selectivity) that predict them. One-step-ahead (OSA) residuals remove these correlations by computing, for each observation, the residual of its predictive distribution conditional on all previous observations. Thus, this conditioning should theoretically remove all associated correlaitons and the result should behave like iid standard normal deviates if the model is correctly specified, making standard diagnostics (QQ-plots, SDNR, autocorrelation) meaningful.

SPoRC computes OSA residuals through a single entry point, get_osa(), which supports two independent computation modes and every major data type in the package:

Data type get_osa() argument Family
Age/length compositions comp_source = "FishAge"/"FishLen"/"SrvAge"/"SrvLen" discrete (multinomial/DM) or continuous (logistic-normal)

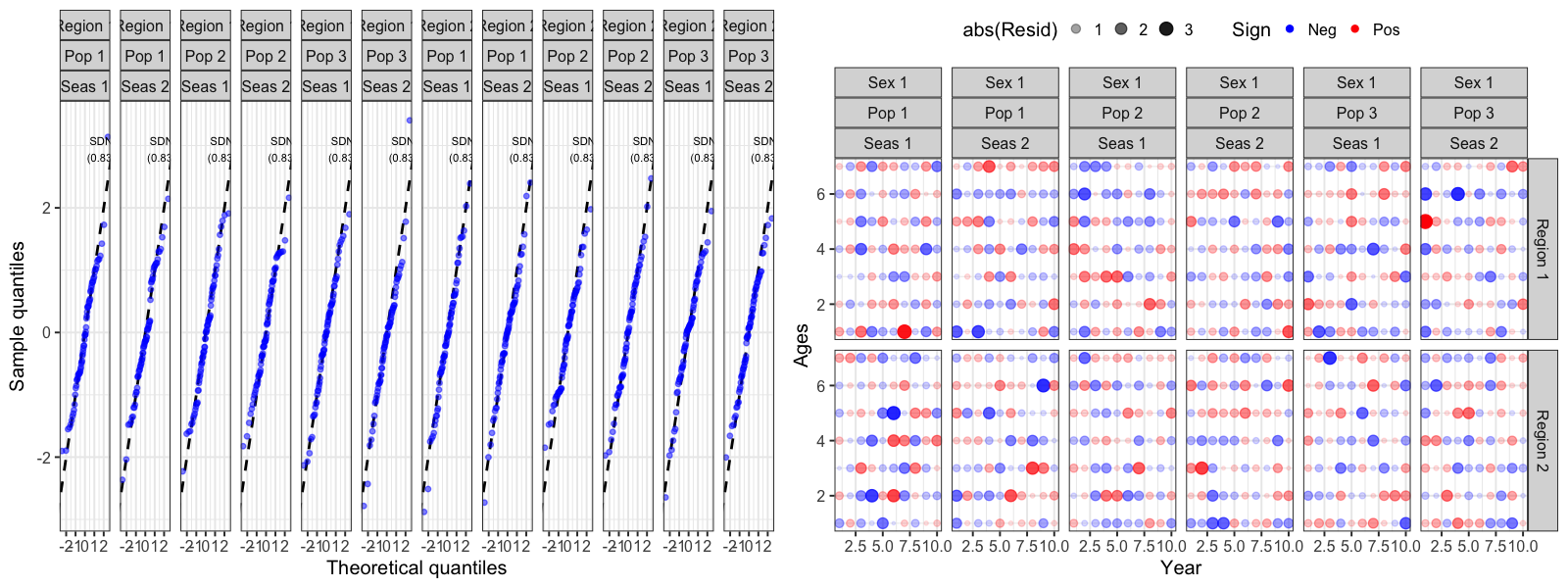

Population-specific compositions add pop = TRUE same as above
Discard compositions add discard = TRUE same as above

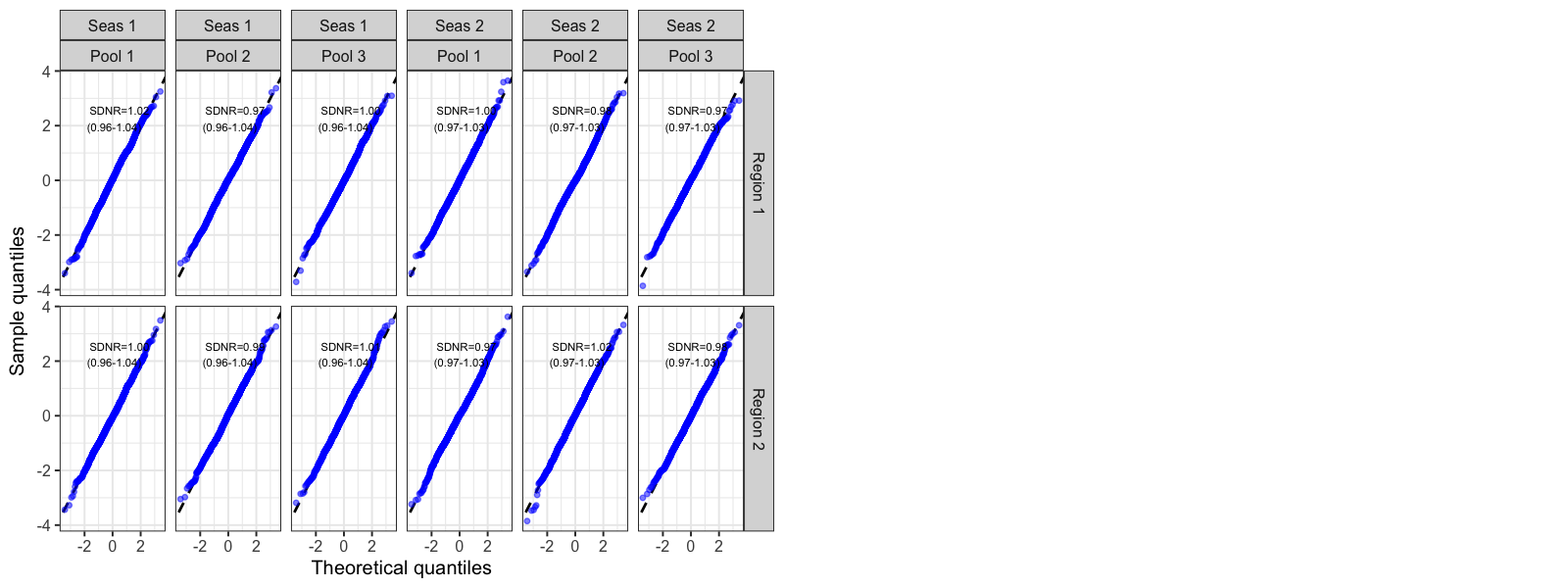

Conventional tag recoveries tag = TRUE discrete (count or comp-conditioned)
Catch index_source = "Catch" continuous (log-normal)
Discards index_source = "Discard" continuous (log-normal)
Fishery index index_source = "FishIdx" continuous (log-normal)
Survey index index_source = "SrvIdx" continuous (log-normal)

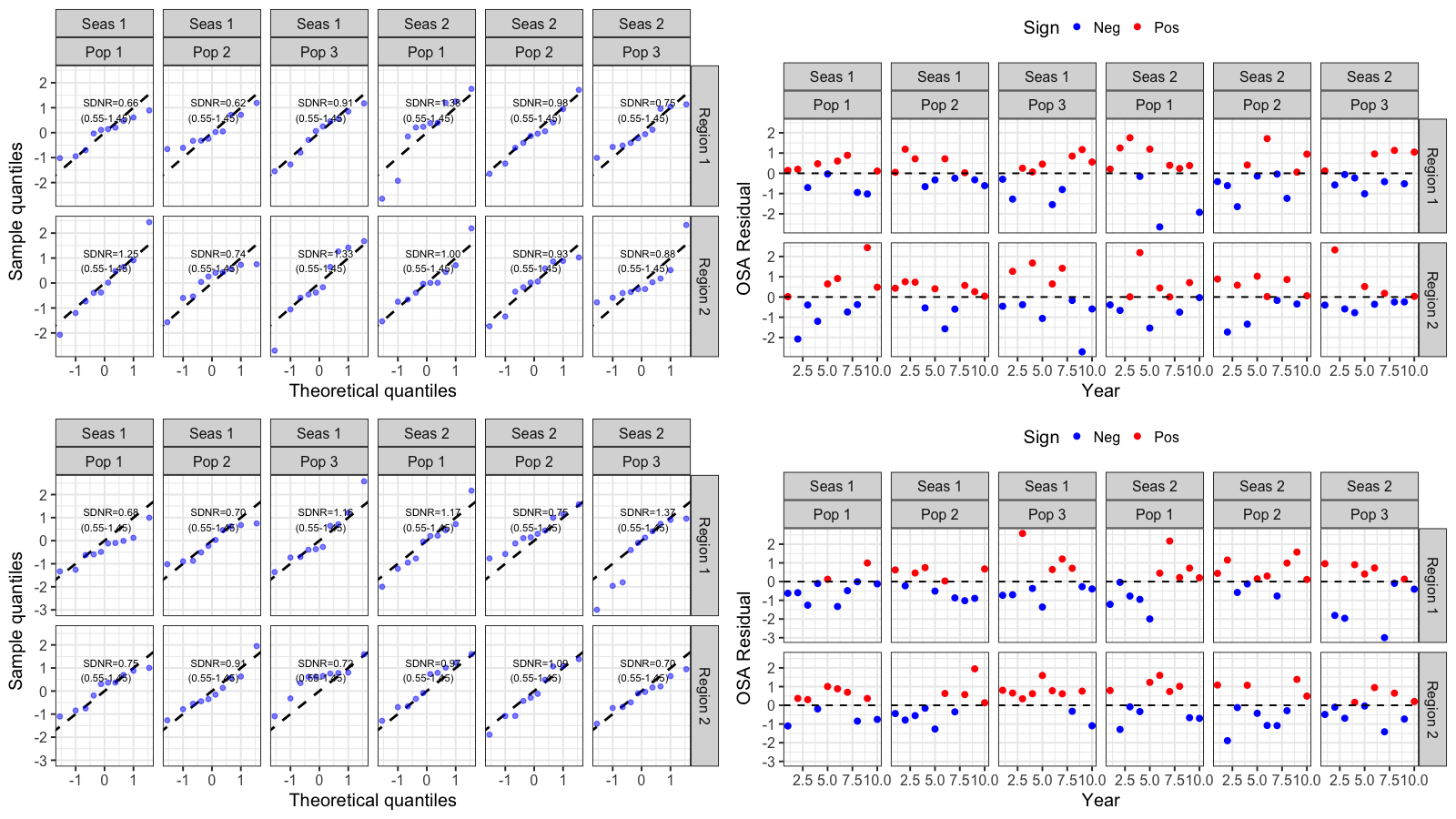

Any index source, population-specific add pop = TRUE continuous (log-normal)

Every get_osa() call returns a list with a single element, res, a data frame of residuals that can be passed directly to plot_resids(), which produces a QQ-plot (with an SDNR annotation) and a second diagnostic plot (a bubble plot for compositions/tags, or a residual-vs-year plot for index-type data).

Two computation modes

External (post-hoc), get_osa(obs_mat = , exp_mat = , N = , ...). Works with any fitted model, no special setup required. Observed/expected arrays (typically pulled from get_comp_prop()) are handed to the compResidual package, which builds a small TMB model and computes OSA residuals independently of how the main model was fit.

Internal (model-based), get_osa(model = , data = , ...). Internal OSA is only required for composition data and conventional tagging data. Catch and abundance index observations (Catch/Discard/FishIdx/SrvIdx) are handled automatically through the model likelihood and do not require any additional setup. To obtain internal OSA residuals for composition and/or tagging data, the model must be re-fit with do_internal_comp_osa = TRUE and/or do_internal_conv_tag_osa = TRUE in Setup_Mod_Dim(). These options wrap the relevant observations in RTMB::OBS() at the point they enter the model likelihood, allowing RTMB::oneStepPredict() to operate directly on the fitted model object.

When do_internal_comp_osa = TRUE, the observed composition proportions (Obs) are internally converted to integer counts (e.g., ISS × Wt × Obs) before entering the multinomial or Dirichlet-multinomial likelihood, since these likelihoods are defined on count data. The resulting counts are rounded to the nearest integer. This generally has negligible impact when the effective sample size (e.g., ISS × Wt) is large, but users should be aware that it can alter the likelihood relative to using continuous proportions. This is particularly relevant when applying Francis or other composition reweighting methods, since the weighted effective sample size determines the counts supplied to the likelihood.

It is strongly recommended that the composition weighting factors (Wt_*) remain at their default values when using internal OSA. These weights are applied after the likelihood contribution has been calculated rather than being passed directly into dnorm(), dmultinom(), ddirmult(), or other likelihood functions. Consequently, they are not incorporated into the one-step-ahead predictive distribution and can produce OSA diagnostics that are difficult to interpret or inconsistent with the fitted objective function.

Both modes are demonstrated below on the same real dataset (single-region GOA Dusky Rockfish) so the two can be compared directly, plus a simulated multi-population, tagging-enabled model for the internal-only data types.

library(SPoRC)
library(tidyverse)
data("sgl_rg_dusky_data")

External OSA residuals

Any already-fitted model works. get_comp_prop() extracts observed/expected proportions from the model report, and get_osa() (no model= argument) computes OSA residuals from those arrays via compResidual.

input_list <- Setup_Mod_Dim(
  years = sgl_rg_dusky_data$years,
  ages = sgl_rg_dusky_data$mod_ages,
  lens = sgl_rg_dusky_data$lens,
  n_regions = sgl_rg_dusky_data$n_regions,
  n_sexes = sgl_rg_dusky_data$n_sexes,
  n_fish_fleets = sgl_rg_dusky_data$n_fish_fleets,
  n_srv_fleets = sgl_rg_dusky_data$n_srv_fleets,
  verbose = FALSE
  # note: do_internal_comp_osa is NOT set here which is not needed for the
  # external path
)

input_list <- Setup_Mod_Rec(
    input_list = input_list,
    do_rec_bias_ramp = 1,
    bias_year = rep(length(sgl_rg_dusky_data$years), 4),
    sigmaR_switch = 1,
    ln_sigmaR = array(-0.1068576, dim = c(2, input_list$data$n_pop, input_list$data$n_regions)),
    rec_model = "mean_rec",
    sigmaR_spec = "fix",
    init_age_strc = 1,
    ln_global_R0 = log(2.7),
    t_spawn = sgl_rg_dusky_data$spwn_month
  )

  input_list <- Setup_Mod_Biologicals(
    input_list = input_list,
    WAA = sgl_rg_dusky_data$waa_arr,
    MatAA = sgl_rg_dusky_data$mataa_arr,
    fit_lengths = 1,
    SizeAgeTrans = sgl_rg_dusky_data$sizeage,
    AgeingError = sgl_rg_dusky_data$age_error_matrix,
    M_spec = "fix",
    Fixed_natmort = sgl_rg_dusky_data$fix_natmort,
    addtocomp = 0.00001
  )

  input_list <- Setup_Mod_Movement(
    input_list = input_list,
    use_fixed_movement = 1,
    Fixed_Movement = NA,
    do_recruits_move = 0
  )

  input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

  input_list <- Setup_Mod_Catch_and_F(
    input_list = input_list,
    ObsCatch = sgl_rg_dusky_data$ObsCatch,
    UseCatch = sgl_rg_dusky_data$UseCatch,
    Use_F_pen = 1,
    sigmaC_spec = "fix",
    Catch_Constant = 0.00001,
    ln_sigmaC = array(log(sqrt(1 / (2 * c(rep(2, 15), rep(50, 33))) )), dim = c(input_list$data$n_regions, length(input_list$data$years),
                                                input_list$data$n_seas, input_list$data$n_fish_fleets)),
    ln_sigmaF = array(log(sqrt(1 / 4)), dim = c(input_list$data$n_regions, input_list$data$n_seas,
                                                input_list$data$n_fish_fleets))
  )

  input_list <- Setup_Mod_FishIdx_and_Comps(
    input_list = input_list,
    ObsFishIdx = sgl_rg_dusky_data$ObsFishIdx,
    ObsFishIdx_SE = sgl_rg_dusky_data$ObsFishIdx_SE,
    UseFishIdx = sgl_rg_dusky_data$UseFishIdx,
    ObsFishAgeComps = sgl_rg_dusky_data$ObsFishAgeComps,
    UseFishAgeComps = sgl_rg_dusky_data$UseFishAgeComps,
    ISS_FishAgeComps = sgl_rg_dusky_data$ISS_FishAgeComps,
    ObsFishLenComps = sgl_rg_dusky_data$ObsFishLenComps,
    UseFishLenComps = sgl_rg_dusky_data$UseFishLenComps,
    ISS_FishLenComps = sgl_rg_dusky_data$ISS_FishLenComps,
    fish_idx_type = c("none"),
    FishAgeComps_LikeType = c("Multinomial"),
    FishLenComps_LikeType = c("Multinomial"),
    FishAgeComps_Type = c("agg_Year_1-terminal_Fleet_1"),
    FishLenComps_Type = c("agg_Year_1-terminal_Fleet_1")
  )

  input_list <- Setup_Mod_SrvIdx_and_Comps(
    input_list = input_list,
    ObsSrvIdx = sgl_rg_dusky_data$ObsSrvIdx,
    ObsSrvIdx_SE = (sgl_rg_dusky_data$ObsSrvIdx_SE / sgl_rg_dusky_data$ObsSrvIdx) / sqrt(1.66),
    UseSrvIdx = sgl_rg_dusky_data$UseSrvIdx,
    ObsSrvAgeComps = sgl_rg_dusky_data$ObsSrvAgeComps,
    ISS_SrvAgeComps = sgl_rg_dusky_data$ISS_SrvAgeComps,
    UseSrvAgeComps = sgl_rg_dusky_data$UseSrvAgeComps,
    ObsSrvLenComps = sgl_rg_dusky_data$ObsSrvLenComps,
    UseSrvLenComps = sgl_rg_dusky_data$UseSrvLenComps,
    ISS_SrvLenComps = sgl_rg_dusky_data$ISS_SrvLenComps,
    srv_idx_type = c("biom"),
    SrvAgeComps_LikeType = c("Multinomial"),
    SrvLenComps_LikeType = c("Multinomial"),
    SrvAgeComps_Type = c("agg_Year_1-terminal_Fleet_1"),
    SrvLenComps_Type = c("agg_Year_1-terminal_Fleet_1")
  )

  input_list <- Setup_Mod_Fishsel_and_Q(
    input_list = input_list,
    cont_tv_fish_sel = c("none_Fleet_1"),
    fish_sel_blocks = c("none_Fleet_1"),
    fish_sel_model = c("logist2_Fleet_1"),
    fish_q_blocks = c("none_Fleet_1"),
    fish_fixed_sel_pars_spec = c("est_all"),
    fish_q_spec = c("fix")
  )

  srv_q_prior <- data.frame(region = 1, block = 1, fleet = 1, mu = 1, sd = 0.447213595)

  input_list <- Setup_Mod_Srvsel_and_Q(
    input_list = input_list,
    cont_tv_srv_sel = c("none_Fleet_1"),
    srv_sel_blocks = c("none_Fleet_1"),
    srv_sel_model = c("logist2_Fleet_1"),
    srv_q_blocks = c("none_Fleet_1"),
    srv_fixed_sel_pars_spec = c("est_all"),
    srv_q_spec = c("est_all"),
    Use_srv_q_prior = 1,
    srv_q_prior = srv_q_prior,
    t_srv = array(0, dim = c(input_list$data$n_regions, input_list$data$n_seas, input_list$data$n_srv_fleets))
  )

  input_list <- Setup_Mod_Weighting(
    input_list
  )


model <- fit_model(input_list$data, input_list$par, input_list$map,
                   random = NULL, newton_loops = 3, silent = TRUE)

# Modeled ages span sgl_rg_dusky_data$mod_ages (4:33, 30 ages), but observed
# fishery/survey age compositions only report ages 4:30 (27 bins, an
# ageing-error offset), comp bin labels use the *observed* bin range.
obs_age_bins <- 4:30

comp_prop <- get_comp_prop(input_list$data, model$rep,
                           age_labels = obs_age_bins,
                           len_labels = sgl_rg_dusky_data$lens,
                           year_labels = sgl_rg_dusky_data$years)

fishages_ext <- get_osa(
  obs_mat = comp_prop$Obs_FishAge_mat,
  exp_mat = comp_prop$Pred_FishAge_mat,
  N = input_list$data$ISS_FishAgeComps[1, which(input_list$data$UseFishAgeComps[,,1,1] == 1), 1, 1, 1] *
    unique(input_list$data$Wt_FishAgeComps[1, which(input_list$data$UseFishAgeComps[,,1,1] == 1), 1, , 1]),
  years = which(input_list$data$UseFishAgeComps[,,1,1] == 1),
  fleet = 1,
  bins = obs_age_bins,
  seas = 1,
  comp_type = 0, # aggregated across sex/region
  bin_label = "Ages"
)

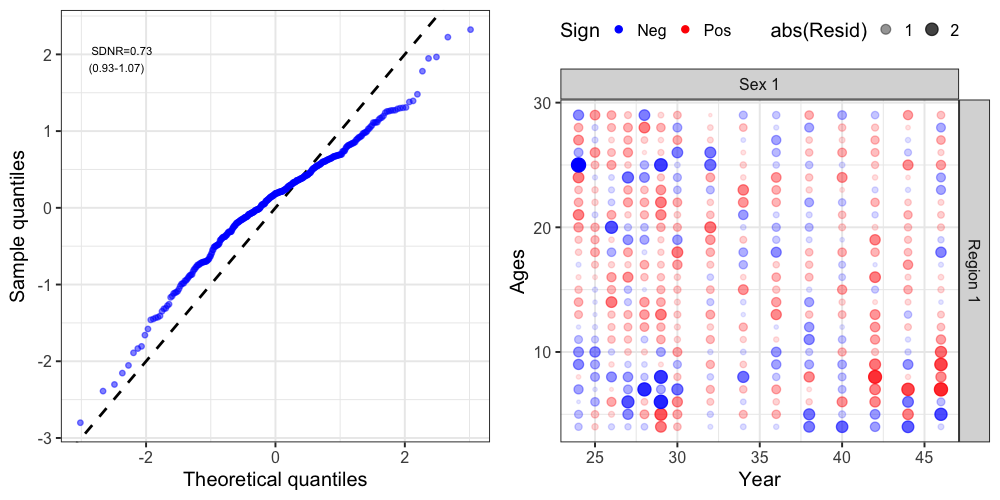

resid_ext <- plot_resids(fishages_ext)
resid_ext[[1]] # QQ-plot with SDNR
resid_ext[[2]] # bubble plot of residuals by year x age

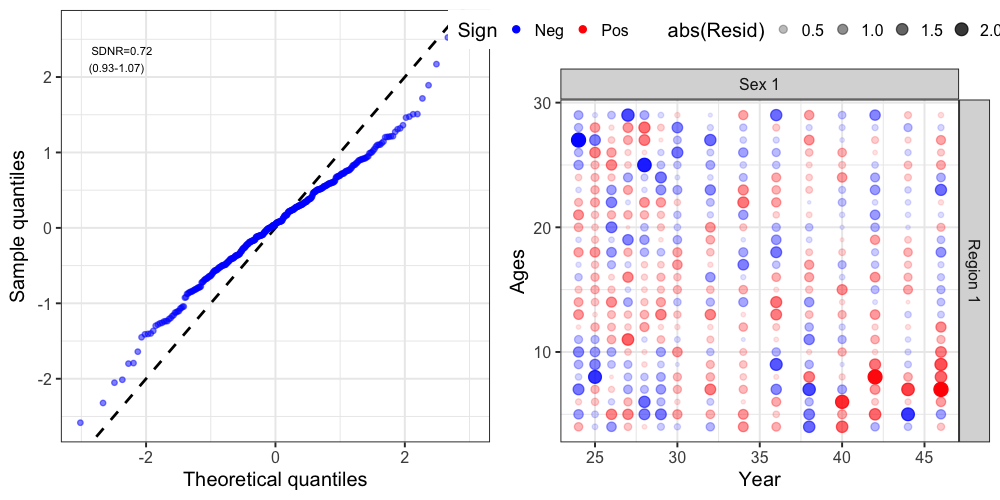

Internal OSA residuals

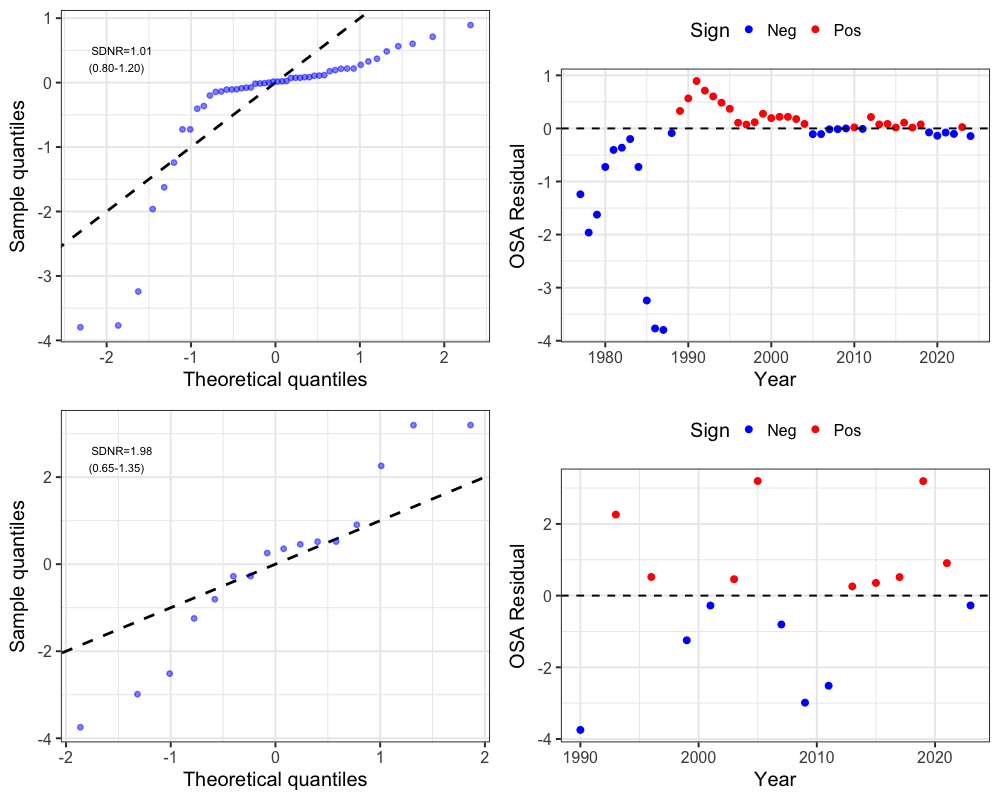

Composition and index data

Refitting the same Dusky Rockfish model with do_internal_comp_osa = TRUE switches on RTMB::OBS() tracking for every composition source, plus (unconditionally, no extra flag needed) Catch, Discard, FishIdx, and SrvIdx. get_osa() is then called with model =/data = instead of obs_mat =/exp_mat =.

input_list <- Setup_Mod_Dim(
  years = sgl_rg_dusky_data$years,
  ages = sgl_rg_dusky_data$mod_ages,
  lens = sgl_rg_dusky_data$lens,
  n_regions = sgl_rg_dusky_data$n_regions,
  n_sexes = sgl_rg_dusky_data$n_sexes,
  n_fish_fleets = sgl_rg_dusky_data$n_fish_fleets,
  n_srv_fleets = sgl_rg_dusky_data$n_srv_fleets,
  verbose = FALSE,
  do_internal_comp_osa = TRUE # the only change needed vs. the external setup
)

input_list <- Setup_Mod_Rec(
    input_list = input_list,
    do_rec_bias_ramp = 1,
    bias_year = rep(length(sgl_rg_dusky_data$years), 4),
    sigmaR_switch = 1,
    ln_sigmaR = array(-0.1068576, dim = c(2, input_list$data$n_pop, input_list$data$n_regions)),
    rec_model = "mean_rec",
    sigmaR_spec = "fix",
    init_age_strc = 1,
    ln_global_R0 = log(2.7),
    t_spawn = sgl_rg_dusky_data$spwn_month
  )

  input_list <- Setup_Mod_Biologicals(
    input_list = input_list,
    WAA = sgl_rg_dusky_data$waa_arr,
    MatAA = sgl_rg_dusky_data$mataa_arr,
    fit_lengths = 1,
    SizeAgeTrans = sgl_rg_dusky_data$sizeage,
    AgeingError = sgl_rg_dusky_data$age_error_matrix,
    M_spec = "fix",
    Fixed_natmort = sgl_rg_dusky_data$fix_natmort,
    addtocomp = 0.00001
  )

  input_list <- Setup_Mod_Movement(
    input_list = input_list,
    use_fixed_movement = 1,
    Fixed_Movement = NA,
    do_recruits_move = 0
  )

  input_list <- Setup_Mod_Tagging(input_list = input_list, use_conv_fish_tagging = 0)

  input_list <- Setup_Mod_Catch_and_F(
    input_list = input_list,
    ObsCatch = sgl_rg_dusky_data$ObsCatch,
    UseCatch = sgl_rg_dusky_data$UseCatch,
    Use_F_pen = 1,
    sigmaC_spec = "fix",
    Catch_Constant = 0.00001,
    ln_sigmaC = array(log(sqrt(1 / (2 * c(rep(2, 15), rep(50, 33))) )), dim = c(input_list$data$n_regions, length(input_list$data$years),
                                                input_list$data$n_seas, input_list$data$n_fish_fleets)),
    ln_sigmaF = array(log(sqrt(1 / 4)), dim = c(input_list$data$n_regions, input_list$data$n_seas,
                                                input_list$data$n_fish_fleets))
  )

  input_list <- Setup_Mod_FishIdx_and_Comps(
    input_list = input_list,
    ObsFishIdx = sgl_rg_dusky_data$ObsFishIdx,
    ObsFishIdx_SE = sgl_rg_dusky_data$ObsFishIdx_SE,
    UseFishIdx = sgl_rg_dusky_data$UseFishIdx,
    ObsFishAgeComps = sgl_rg_dusky_data$ObsFishAgeComps,
    UseFishAgeComps = sgl_rg_dusky_data$UseFishAgeComps,
    ISS_FishAgeComps = sgl_rg_dusky_data$ISS_FishAgeComps,
    ObsFishLenComps = sgl_rg_dusky_data$ObsFishLenComps,
    UseFishLenComps = sgl_rg_dusky_data$UseFishLenComps,
    ISS_FishLenComps = sgl_rg_dusky_data$ISS_FishLenComps,
    fish_idx_type = c("none"),
    FishAgeComps_LikeType = c("Multinomial"),
    FishLenComps_LikeType = c("Multinomial"),
    FishAgeComps_Type = c("agg_Year_1-terminal_Fleet_1"),
    FishLenComps_Type = c("agg_Year_1-terminal_Fleet_1")
  )

  input_list <- Setup_Mod_SrvIdx_and_Comps(
    input_list = input_list,
    ObsSrvIdx = sgl_rg_dusky_data$ObsSrvIdx,
    ObsSrvIdx_SE = (sgl_rg_dusky_data$ObsSrvIdx_SE / sgl_rg_dusky_data$ObsSrvIdx) / sqrt(1.66),
    UseSrvIdx = sgl_rg_dusky_data$UseSrvIdx,
    ObsSrvAgeComps = sgl_rg_dusky_data$ObsSrvAgeComps,
    ISS_SrvAgeComps = sgl_rg_dusky_data$ISS_SrvAgeComps,
    UseSrvAgeComps = sgl_rg_dusky_data$UseSrvAgeComps,
    ObsSrvLenComps = sgl_rg_dusky_data$ObsSrvLenComps,
    UseSrvLenComps = sgl_rg_dusky_data$UseSrvLenComps,
    ISS_SrvLenComps = sgl_rg_dusky_data$ISS_SrvLenComps,
    srv_idx_type = c("biom"),
    SrvAgeComps_LikeType = c("Multinomial"),
    SrvLenComps_LikeType = c("Multinomial"),
    SrvAgeComps_Type = c("agg_Year_1-terminal_Fleet_1"),
    SrvLenComps_Type = c("agg_Year_1-terminal_Fleet_1")
  )

  input_list <- Setup_Mod_Fishsel_and_Q(
    input_list = input_list,
    cont_tv_fish_sel = c("none_Fleet_1"),
    fish_sel_blocks = c("none_Fleet_1"),
    fish_sel_model = c("logist2_Fleet_1"),
    fish_q_blocks = c("none_Fleet_1"),
    fish_fixed_sel_pars_spec = c("est_all"),
    fish_q_spec = c("fix")
  )

  srv_q_prior <- data.frame(region = 1, block = 1, fleet = 1, mu = 1, sd = 0.447213595)

  input_list <- Setup_Mod_Srvsel_and_Q(
    input_list = input_list,
    cont_tv_srv_sel = c("none_Fleet_1"),
    srv_sel_blocks = c("none_Fleet_1"),
    srv_sel_model = c("logist2_Fleet_1"),
    srv_q_blocks = c("none_Fleet_1"),
    srv_fixed_sel_pars_spec = c("est_all"),
    srv_q_spec = c("est_all"),
    Use_srv_q_prior = 1,
    srv_q_prior = srv_q_prior,
    t_srv = array(0, dim = c(input_list$data$n_regions, input_list$data$n_seas, input_list$data$n_srv_fleets))
  )

  input_list <- Setup_Mod_Weighting(
    input_list
  )

model <- fit_model(input_list$data, input_list$par, input_list$map,
                   random = NULL, newton_loops = 3, silent = TRUE)

# Composition OSA: comp_source identifies the data source, family whether
# the fitted likelihood for that source is discrete (multinomial/DM) or
# continuous (logistic-normal)
fishages_int <- get_osa(model = model, data = input_list$data,
                        comp_source = "FishAge", family = "discrete",
                        bins = obs_age_bins, bin_label = "Ages")
resid_int <- plot_resids(fishages_int)

Index-type sources use index_source instead of comp_source/family, there is no likelihood-family choice to make, since these are always continuous log-normal observations (currently), and no bins/bin_label since there’s no bin dimension. plot_resids() returns a QQ-plot paired with a residual-vs-year plot instead of a bubble plot. The residuals for catch appear visually ‘odd’ likely due to a change in the variance of the distribution between early and late periods, reflecting a change in catch observations for Dusky rockfish during these periods (i.e., catches were recorded a a mix of different rockfish species earlier in the time series, and the variance is adjusted to reflect increased uncertainty in the catch observation).

catch_int  <- get_osa(model = model, data = input_list$data, index_source = "Catch")
srvidx_int <- get_osa(model = model, data = input_list$data, index_source = "SrvIdx")
# index_source = "Discard"/"FishIdx" follow the identical interface (omitted
# here ... this Dusky Rockfish case study sets fish_idx_type = "none" and
# doesn't model discards, so those sources have no data to show)

resid_catch  <- plot_resids(catch_int)
resid_srvidx <- plot_resids(srvidx_int)

Population-specific and tagging data

Population-specific composition/index residuals (pop = TRUE) and conventional tag recovery residuals (tag = TRUE) require the model to actually have population-specific and/or tagging data, so this section switches to a simulated 3-population, 2-region, 2-season model with natal homing movement and conventional tagging, fit with both do_internal_comp_osa = TRUE and do_internal_conv_tag_osa = TRUE. The following code chunk is purely for demonstration purposes.

input_pop <- Setup_Mod_Dim(
  years = 1:sim_obj$n_years, ages = 1:sim_obj$n_ages, lens = sim_obj$n_lens,
  n_regions = sim_obj$n_regions, n_sexes = sim_obj$n_sexes,
  n_fish_fleets = sim_obj$n_fish_fleets, n_srv_fleets = sim_obj$n_srv_fleets,
  n_seas = sim_obj$n_seas, n_pop = sim_obj$n_pop,
  natal_region = c(1, 1, 2), verbose = FALSE,
  do_internal_comp_osa = TRUE,
  do_internal_conv_tag_osa = TRUE
)

model_pop <- fit_model(input_pop$data, input_pop$par, input_pop$map,
                       random = NULL, newton_loops = 3, silent = TRUE)

Population-specific composition OSA (pop = TRUE, joint-sex in this example):

comp_pop <- get_osa(model = model_pop, data = input_pop$data, comp_source = "FishAge",
                    pop = TRUE, family = "discrete", bins = input_pop$data$ages, bin_label = "Ages")
resid_comp_pop <- plot_resids(comp_pop)

Conventional tag recovery OSA (tag = TRUE), faceted by region, recovery season, fleet, and movement/tag pooling group whenever the residual data span more than one level of each. This is a bit unwieldy to inspect given the number of dimensions (release cohort, recapture region, age, year at liberty etc) and so only qqplot’s are shown for tagging data.

tag_osa <- get_osa(model = model_pop, data = input_pop$data, tag = TRUE)
resid_tag <- plot_resids(tag_osa)

Population-specific index OSA (index_source = + pop = TRUE):

catch_pop_osa  <- get_osa(model = model_pop, data = input_pop$data, index_source = "Catch", pop = TRUE)
srvidx_pop_osa <- get_osa(model = model_pop, data = input_pop$data, index_source = "SrvIdx", pop = TRUE)

resid_catch_pop  <- plot_resids(catch_pop_osa)
resid_srvidx_pop <- plot_resids(srvidx_pop_osa)

Other options

get_osa()’s internal mode exposes two further arguments:

  • osa_method: overrides RTMB::oneStepPredict()’s method argument. Must be one of "oneStepGeneric", "oneStepGaussianOffMode", or "oneStepGaussian", the "cdf" method is deliberately disallowed because it is numerically fragile for the discrete (multinomial/count) likelihoods used here and can silently return mis-calibrated residuals. Defaults to "oneStepGeneric" for discrete composition/tag families and "oneStepGaussianOffMode" for continuous (logistic-normal composition or index-type) families.
  • parallel: passed straight through to RTMB::oneStepPredict(parallel = ). Useful for large composition/tag datasets where OSA computation dominates runtime; verified to give numerically identical residuals to parallel = FALSE.
get_osa(model = model, data = input_list$data, index_source = "SrvIdx",
       osa_method = "oneStepGaussian", parallel = TRUE)
