The SPoRC package can be further generalized from a single region assessment into a spatial assessment. Here, we will demonstrate how a spatial stock assessment model might be set up. Similar to previous vignettes, the spatial stock assessment illustrated here uses various helper functions to facilitate setting it up. The spatial stock assessment is a 5-region model and encompasses the Bering Sea (BS), Aleutian Islands (AI), Western Gulf of Alaska (WGOA), Central Gulf of Alaska (CGOA), and Eastern Gulf of Alaska (EGOA). A total of 30 ages are modeled, along with 2 sexes. Additionally, two fishery fleets are modeled (fixed-gear and trawl) both of which operate across the entire spatial domain defined. Two survey fleets are also modeled (cooperative Japanese and domestic longline), which operates annually in the Gulf of Alaska, and biennially between the BS and AI regions. Let us first load in the necessary packages and data files.

# Load in packages
library(SPoRC)
library(RTMB)
library(ggplot2)
library(dplyr)
data(mlt_rg_sable_data) # load in data

Setup Model Dimensions

To initially set the model up, an input list containing a data list, parameter list, and a mapping list needs to be constructed. This is aided with the function Setup_Mod_Dim, where users specify a vector of years, ages, and lengths. Additionally, users need to specify the number of regions modeled (n_regions), number of sexes modelled (n_sexes), number of fishery fleets (n_fish_fleets), and number of survey fleets (n_srv_fleets)

# Initialize model dimensions and data list
input_list <- Setup_Mod_Dim(years = 1:length(mlt_rg_sable_data$years),
                            # vector of years (1 - 62)
                            ages = 1:length(mlt_rg_sable_data$ages),
                            # vector of ages (1 - 30)
                            lens = mlt_rg_sable_data$lens,
                            # number of lengths (41 - 99)
                            n_regions = mlt_rg_sable_data$n_regions,
                            # number of regions (5)
                            n_sexes = mlt_rg_sable_data$n_sexes,
                            # number of sexes (2)
                            n_fish_fleets = mlt_rg_sable_data$n_fish_fleets,
                            # number of fishery fleet (2)
                            n_srv_fleets = mlt_rg_sable_data$n_srv_fleets,
                            # number of survey fleets (2)
                            verbose = TRUE
)

Setup Recruitment Dynamics

Following the initialization of input_list, we can pass the created object into the next function (Setup_Mod_Rec) to parameterize recruitment dynamics. In the case of the spatial model for Alaska sablefish, recruitment is parameterized as such:

  1. Mean Recruitment, with no stock recruitment relationship assumed,
  2. A recruitment bias ramp is not used (do_bias_ramp = 1),
  3. Two values for sigmaR are used, the first value represents an early period sigmaR, which is fixed at 0.4, while the second value represents a late period sigmaR, which is fixed at a value of 1.2.
  4. Recruitment deviations are estimated in a penalized likelihood framework,
  5. Recruitment deviations are estimated for all years and regions, except for the terminal year,
  6. Recruitment sex-ratios are fixed at 0.5 for each sex,
  7. Initial age structure is derived by iterating the age structure to equilibrium, and
  8. Initial age deviations are shared across regions to facilitate model convergence
# Setup recruitment stuff (using defaults for other stuff)
input_list <- Setup_Mod_Rec(input_list = input_list, # input data list from above
                            do_rec_bias_ramp = 0, # not using bias ramp
                            sigmaR_switch = 16, # switch to using late sigma in year 16
                            dont_est_recdev_last = 1, # don't estimate last rec dev
                            sexratio = c(0.5, 0.5), # fix sex ratio at 0.5

                            # Model options
                            rec_model = "mean_rec", # recruitment model
                            sigmaR_spec = "fix", # fixing
                            InitDevs_spec = "est_shared_r",
                            # initial deviations are shared across regions,
                            # but recruitment deviations are region specific
                            ln_sigmaR = log(c(0.4, 1.2)),
                            # values to fix sigmaR at, or starting values
                            ln_global_R0 = log(20),
                            # starting value for global R0
                            R0_prop = array(c(0.2, 0.2, 0.2, 0.2),
                                            dim = c(input_list$data$n_regions - 1))
                            # starting value for R0 proportions in multinomial logit space
)

Setup Biological Dynamics

Passing on the input_list that was updated in the previous helper function, we can then parameterize the biological dynamics of the model. The Setup_Mod_Biologicals requires data inputs for weight-at-age (WAA) and maturity-at-age (MatAA), both of which are dimensioned by n_regions, n_years, n_ages, n_sexes. Optional model inputs include a single ageing-error matrix AgeingError, dimensioned by n_ages, n_ages, and a size-age transition matrix, whichn is dimensioned by n_regions, n_years, n_lens, n_ages, n_sexes. In this case, we are supplying both an ageing error matrix and a size-age transition matrix, given that the spatial sablefish model incorporates ageing error and also fits to length composition data (fit_lengths = 1). Given that spatial models are heavily parameterized and natural mortality is often poorly estimated, we are fixing natural mortality M_spec = "fix" at a value of 0.104884, which is specified to be sex-invariant.

# Setup biological stuff (using defaults for other stuff)
input_list <- Setup_Mod_Biologicals(input_list = input_list,
                                    WAA = mlt_rg_sable_data$WAA, # weight at age
                                    MatAA = mlt_rg_sable_data$MatAA, # maturity at age
                                    AgeingError = mlt_rg_sable_data$AgeingError,
                                    # ageing error matrix
                                    fit_lengths = 1, # fitting lengths
                                    SizeAgeTrans = mlt_rg_sable_data$SizeAgeTrans,
                                    # size age transition matrix
                                    M_spec = "fix", # fix natural mortality
                                    Fixed_natmort = array(0.104884, dim = c(mlt_rg_sable_data$n_regions,
                                                                            length(mlt_rg_sable_data$years),
                                                                            length(mlt_rg_sable_data$ages),
                                                                            mlt_rg_sable_data$n_sexes))
                                    # values to fix natural mortality at
)

Setup Movement and Tagging Dynamics

Various options are available for parameterizing movement dynamics. In particular, users can specify any number of age, year, and sex blocks for movement. If users wish to specify blocks for the aforementioned partitions, a list needs to be supplied detailing the blocking structure, where the number of elements in the list represents the number of blocks to estiamte, and the elements within the list should specify the range of the block. For instance, the spatial model for sablefish estimates 3 age blocks, (Movement_ageblk_spec = list(c(1:6), c(7:15), c(16:30))), where the first element specifies the first age block, which ranges from ages 1 - 6, the second element specifies the second age block, which ranges from ages 7 - 15, and the third element specifies the third age block, which ranges from ages 16 - 30. No year and sex blocks are specified for this application. Thus, both Movement_yearblk_spec and Movement_sexblk_spec are set at "constant". Additionally, recruits are not allowed to move, given the potential for severe confounding between recruitment and movement if this is allowed (do_recruits_move = 0). Fixed movement is not used in this case (use_fixed_movement = 0) and a vague Dirichlet prior for movement (Use_Movement_Prior = 1 and Movement_prior = 1.5) is used to penalize movement away from the extremes (i.e, away from 0s and 1s).

# setting up movement parameterization
input_list <- Setup_Mod_Movement(input_list = input_list,
                                 # Model options
                                 Movement_ageblk_spec = list(c(1:6), c(7:15), c(16:30)),
                                 # estimating movement in 3 age blocks
                                 # (ages 1-6, ages 7-15, ages 16-30)
                                 Movement_yearblk_spec = "constant", # time-invariant movement
                                 Movement_sexblk_spec = "constant", # sex-invariant movement
                                 do_recruits_move = 0, # recruits do not move
                                 use_fixed_movement = 0, # estimating movement
                                 Use_Movement_Prior = 1, # priors used for movement
                                 Movement_prior = 1.5
                                 # vague prior to penalize movement away from the extremes
                                 )

Specification of tagging dynamics can be a bit cumbersome given the myriad of options available. In the current application, tagging data from a longline survey are utilized UseTagging = 1 and a maximum tag liberty of 15 years is specified max_tag_liberty = 15 for tag cohort tracking. This cut off is used to minimize computational demands, while providing a reasonable level of movement information. Next, we need to specify some data inputs. These primarily include:

  1. tag_release_indicator, which indicates the release year and release region of a given tag cohort,
  2. Tagged_Fish, which contains the number of tagged fish in each tag cohort, and
  3. Obs_Tag_Recap, which contains the observed tag recaptures

Following the specification of our data inputs, we can then specify several model options. Here, can specify the likelihood type utilized for tagging data (Tag_LikeType = "NegBin"), which is specified as a negative binomial, with an overdispersion parameter estimated. We can also specify a tag mixing period (mixing_period = 2), which indicates to the model to not fit tag recapture data until release_year + 1, given that tagged individuals have not fully mixed. Additionally, the function also takes a time at tagging argument t_tagging, which is specified at a value of 0.5 to indicate that tagging happens midway through the year, and movement does not occur in the tag release year. Users can also specify how tagging fishing and natural mortality occurs. In this application, tagging fishing mortality / selectivity is specified as tag_selex = "SexSp_AllFleet", which indicates that the selectivity curve utilized to fit to tag data is sex-specific is derived by a weighting fishery fleet-specific selectivity by fishing mortality. The option tag_natmort = "AgeSp_SexSp" specifies that tagged individuals experience age-and sex-specific natural mortality. For more options, users can inspect ?Setup_Mod_Tagging.

Next, we can specify whether tag reporting rate priors are used (Use_TagRep_Prior = 1) and the type of prior used (TagRep_PriorType = 0). Here, tag reporting priors are in fact used, and a symmetric beta prior is specified. Given that, the symmetric beta prior does not require an input for a mean value for tag reporting (TagRep_mu = NA), but does require an input for the standard deviation (TagRep_sd = 5), where larger values penalize the extremes more. We then specify the move_age_tag_pool and move_sex_tag_pool arguments which indicate to the model how tagging data should be fit. In this case, we are fitting tag data by their respective age and sex-blocks to reduce computational demand. If users wish to fit tag data by their individual ages and sexes, move_age_tag_pool would be specified as list(1,2,3,4 ..., n_ages) and move_sex_tag_pool would be list(1,2).

Because initial tagging mortality and chronic tag shedding are often confounded with other mortality processes and difficult to estiamte, we will fix these parameters in this application (Init_Tag_Mort_spec = "fix" and Tag_Shed_spec = "fix"). Lastly, we will specify the estimation of tag reporting rates, which are time-varying (estimated as 2 blocks; see input supplied to the Tag_Reporting_blocks argument) but are shared across regions (TagRep_spec = "est_shared_r").

# setting up tagging parameterization
input_list <- Setup_Mod_Tagging(input_list = input_list,
                                UseTagging = 1, # using tagging data
                                max_tag_liberty = 15, # maximum number of years to track a cohort

                                # Data Inputs
                                tag_release_indicator = mlt_rg_sable_data$tag_release_indicator,
                                # tag release indicator (first col = tag region,
                                # second col = tag year),
                                # total number of rows = number of tagged cohorts
                                Tagged_Fish = mlt_rg_sable_data$Tagged_Fish, # Released fish
                                # dimensioned by total number of tagged cohorts, (implicitly
                                # tracks the release year and region), age, and sex
                                Obs_Tag_Recap = mlt_rg_sable_data$Obs_Tag_Recap,
                                # dimensioned by max tag liberty, tagged cohorts, regions,
                                # ages, and sexes

                                # Model options
                                Tag_LikeType = "NegBin", # Negative Binomial
                                mixing_period = 2, # Don't fit tagging until release year + 1
                                t_tagging = 0.5, # tagging happens midway through the year,
                                # movement does not occur within that year
                                tag_selex = "SexSp_AllFleet", # tagging recapture selectivity
                                # is a weighted average of fishery selectivity of two fleets
                                tag_natmort = "AgeSp_SexSp", # tagging natural mortality is
                                # age and sex-specific
                                Use_TagRep_Prior = 1, # tag reporting rate priors are used
                                TagRep_PriorType = 0, # symmetric beta is used
                                # for tag reporting prior
                                TagRep_mu = NA, # Tag reporting mean
                                TagRep_sd = 5, # tag reporting sd controlling symmetric beta
                                move_age_tag_pool = list(c(1:6), c(7:15), c(16:30)), # whether or
                                # not to pool tagging data when fitting (for computational cost)
                                move_sex_tag_pool = list(c(1:2)), # whether or not to pool
                                # sex-specific data when fitting
                                Init_Tag_Mort_spec = "fix", # fixing initial tag mortality
                                Tag_Shed_spec = "fix", # fixing chronic shedding
                                TagRep_spec = "est_shared_r", # tag reporting rates are
                                # not region specific
                                # Time blocks for tag reporting rates
                                Tag_Reporting_blocks = c(
                                  paste("Block_1_Year_1-35_Region_",
                                        c(1:input_list$data$n_regions), sep = ''),
                                  paste("Block_2_Year_36-terminal_Region_",
                                        c(1:input_list$data$n_regions), sep = '')
                                ),

                                # Specify starting values or fixing values
                                ln_Init_Tag_Mort = log(0.1), # fixing initial tag mortality
                                ln_Tag_Shed = log(0.02),  # fixing tag shedding
                                ln_tag_theta = log(0.5),
                                # starting value for tagging overdispersion
                                Tag_Reporting_Pars = array(log(0.2 / (1-0.2)),
                                                           dim = c(input_list$data$n_regions, 3))
                                # starting values for tag reporting pars

)

Setup Catch and Fishing Mortality

In general, specifying catch and fishing mortality is relatively straightforward. Users need to supply several data inputs, which include an array of observed catches ObsCatch, the catch type (Catch_Type), which indicates if we gave region-specific or region-aggregated catch, and UseCatch, which indicates whether or not to fit to catch data in a given region and year. Users can inspect the mlt_rg_sable_data data object to further understand the dimensions of data inputs, or refer to the Description of Model and Data Dimensions vignette. Given that we are going to be using TMB-style likelihoods, we are also specifying that the sigma for catch is fixed (sigmaC_spec = 'fix') at a value of 0.02 for all fleets and regions (ln_sigmaC = array(log(0.02), dim = c(input_list$data$n_regions, input_list$data$n_fish_fleets))).

input_list <- Setup_Mod_Catch_and_F(input_list = input_list,
                                    # Data inputs
                                    ObsCatch = mlt_rg_sable_data$ObsCatch,
                                    Catch_Type = mlt_rg_sable_data$Catch_Type,
                                    UseCatch = mlt_rg_sable_data$UseCatch,
                                    # Model options
                                    Use_F_pen = 1,
                                    # whether to use f penalty, == 0 don't use, == 1 use
                                    sigmaC_spec = 'fix',
                                    ln_sigmaC =
                                      array(log(0.02), dim = c(input_list$data$n_regions,
                                                               input_list$data$n_fish_fleets)),
                                    # fixing catch sd at small value
                                    ln_F_mean = array(-2, dim = c(input_list$data$n_regions,
                                                                  input_list$data$n_fish_fleets))
                                    # some starting values for fishing mortality
)

Setup Index and Composition Data (Fishery and Survey)

Setting up fishery (and survey) index and composition data can similarly be a bit cumbersome, given the number of data inputs that may be required. Users can inspect the mlt_rg_sable_data data object to further understand the dimensions of data inputs, or refer to the Description of Model and Data Dimensions vignette. These data inputs include the following: 1. ObsFishIdx and ObsSrvIdx, which specifies the observed indices 2. ObsFishIdx_SE and ObsSrvIdx_SE, which specifies the standard errors of the observed indices 3. UseFishIdx and UseSrvIdx, which indicate whether or not indices are fit to 4. ObsFishAgeComps and ObsSrvAgeComps contains the observed age compositions 5. UseFishAgeComps and UseSrvAgeComps indicates whether or not age compositions are fit to 6. ISS_FishAgeComps and ISS_SrvAgeComps indicates the input sample sizes used to weight age compositions 7. ObsFishLenComps and ObsSrvLenComps contains the observed length compositions 8. UseFishLenComps and UseSrvLenComps indicates whether or not length compositions are fit to 9. ISS_FishLenComps and ISS_SrvLenComps indicates the input sample sizes used to weight length compositions

Model options available are similar to those described in the Setting up a Single Region Model (Alaska Sablefish) vignette. In the case of fishery indices, fish_idx_type is specified at none given that these are not used. Age composition likelihoods are specified as FishAgeComps_LikeType = c("Multinomial", "none"), indicating that the first fleet uses a Multinomial and the second fleet does not have age compositions. Fishery length compositions are specified as Multinomial for both fleets. With respect to FishAgeComps_Type and FishLenComps_Type, these are both specified as spltRjntS when they are availiable to indicate that compositions sum to 1 jointly across sexes, split by a given region.

input_list <- Setup_Mod_FishIdx_and_Comps(input_list = input_list,
                                          # data inputs
                                          ObsFishIdx = mlt_rg_sable_data$ObsFishIdx,
                                          ObsFishIdx_SE = mlt_rg_sable_data$ObsFishIdx_SE,
                                          UseFishIdx =  mlt_rg_sable_data$UseFishIdx,
                                          ObsFishAgeComps = mlt_rg_sable_data$ObsFishAgeComps,
                                          UseFishAgeComps = mlt_rg_sable_data$UseFishAgeComps,
                                          ISS_FishAgeComps = mlt_rg_sable_data$ISS_FishAgeComps,
                                          ObsFishLenComps = mlt_rg_sable_data$ObsFishLenComps,
                                          UseFishLenComps = mlt_rg_sable_data$UseFishLenComps,
                                          ISS_FishLenComps = mlt_rg_sable_data$ISS_FishLenComps,

                                          # Model options
                                          fish_idx_type = c("none", "none"),
                                          # fishery indices not used
                                          FishAgeComps_LikeType =
                                            c("Multinomial", "none"),
                                          # age comp likelihoods for fishery fleet 1 and 2
                                          FishLenComps_LikeType =
                                            c("Multinomial", "Multinomial"),
                                          # length comp likelihoods for fishery fleet 1 and 2
                                          FishAgeComps_Type =
                                            c("spltRjntS_Year_1-terminal_Fleet_1",
                                              "none_Year_1-terminal_Fleet_2"),
                                          # age comp structure for fishery fleet 1 and 2
                                          FishLenComps_Type =
                                            c("spltRjntS_Year_1-terminal_Fleet_1",
                                              "spltRjntS_Year_1-terminal_Fleet_2"),
                                          # length comp structure for fishery fleet 1 and 2
                                          FishAge_comp_agg_type = c(NA,NA),
                                          # ADMB aggregation quirks, ideally get rid of this
                                          FishLen_comp_agg_type = c(NA,NA)
                                          # ADMB aggregation quirks, ideally get rid of this
)

The same arguments are expected for survey indices and compositions. Here, 2 survey fleets are specified, where they are abundance based for both fleets. Age compositions for both fleets are joint by sex, but split by region, while length compositions are not used. All compositions for the survey fleets assume a Mulinomial likelihood.

# Survey Indices and Compositions
input_list <- Setup_Mod_SrvIdx_and_Comps(input_list = input_list,
                                         # data inputs
                                         ObsSrvIdx = mlt_rg_sable_data$ObsSrvIdx,
                                         ObsSrvIdx_SE = mlt_rg_sable_data$ObsSrvIdx_SE,
                                         UseSrvIdx =  mlt_rg_sable_data$UseSrvIdx,
                                         ObsSrvAgeComps = mlt_rg_sable_data$ObsSrvAgeComps,
                                         ISS_SrvAgeComps = mlt_rg_sable_data$ISS_SrvAgeComps,
                                         UseSrvAgeComps = mlt_rg_sable_data$UseSrvAgeComps,
                                         ObsSrvLenComps = mlt_rg_sable_data$ObsSrvLenComps,
                                         UseSrvLenComps = mlt_rg_sable_data$UseSrvLenComps,
                                         ISS_SrvLenComps = mlt_rg_sable_data$ISS_SrvLenComps,

                                         # Model options
                                         srv_idx_type = c("abd", "abd"),
                                         # abundance and biomass for survey fleet 1 and 2
                                         SrvAgeComps_LikeType =
                                           c("Multinomial", "Multinomial"),
                                         # survey age composition likelihood for survey fleet
                                         # 1, and 2
                                         SrvLenComps_LikeType =
                                           c("none", "none"),
                                         #  no length compositions used for survey
                                         SrvAgeComps_Type = c("spltRjntS_Year_1-terminal_Fleet_1",
                                                              "spltRjntS_Year_1-terminal_Fleet_2"),
                                         # survey age comp type
                                         SrvLenComps_Type = c("none_Year_1-terminal_Fleet_1",
                                                              "none_Year_1-terminal_Fleet_2"),
                                         # survey length comp type
                                         SrvAge_comp_agg_type = c(NA, NA),
                                         # ADMB aggregation quirks, ideally get rid of this
                                         SrvLen_comp_agg_type = c(NA, NA)
                                         # ADMB aggregation quirks, ideally get rid of this
)

Setup Selectivity and Catchability (Fishery and Survey)

In the spatial sablefish application, all fishery/survey selectivity and catchability processes are assumed to be spatially-invariant. Similar to the single region case, users will need to specify several selectivity options, which include:

  1. Whether we have continuous time-varying selectivity processes (cont_tv_fish_sel or cont_tv_srv_sel). For this case study, continuous time-varying selectivity is not used and is specified as none_Fleet_x,
  2. Whether we have selectivity blocks (fish_sel_blocks or srv_sel_blocks). This application assumes 2 time-blocks for the fixed-gear fleet and time-invariant selectivity for the trawl fishery,
  3. The type of parametric selectivity form to specify for the different fleets (fish_sel_model or srv_sel_model). Here, we assume logist1 for the fixed-gear fleet (logistic specified as a50 and k), and gamma dome-shaped selectivity for the trawl fleet,
  4. The number of catchability blocks specified (fish_q_blocks or srv_q_blocks). Given that no fishery indices are used, fishery catchability has no blocks are estimated (fish_q_blocks = c("none_Fleet_1", "none_Fleet_2")),
  5. How fishery or survey selectivity parameters should be estimated (fish_fixed_sel_pars). In the case of sablefish, we are first specifying that all selectivity parameters (by regions, time-blocks, sexes) should be estimated. However, there are some more nuanced parameter sharing across regions, sexes, and time-blocks that are used to help stabilize the model (last part of this code chunk), and cannot be easily generalized. Thus, users can manually extract the map list from the updated input_list object to modify how parameters should be fixed or shared,
  6. Lastly, how fishery or survey catchability should be estimated (fish_q_spec or srv_q_spec). For the fishery, catchability is not estimated as no fishery indices are utilized (fix).
# Fishery Selectivity and Catchability
input_list <- Setup_Mod_Fishsel_and_Q(input_list = input_list,

                                      # Model options
                                      cont_tv_fish_sel = c("none_Fleet_1", "none_Fleet_2"),
                                      # fishery selectivity, whether continuous time-varying

                                      # fishery selectivity blocks
                                      fish_sel_blocks =
                                        c("Block_1_Year_1-56_Fleet_1",
                                          # block 1, fishery ll selex
                                          "Block_2_Year_57-terminal_Fleet_1",
                                          # block 3 fishery ll selex
                                          "none_Fleet_2"),
                                      # no blocks for trawl fishery

                                      # fishery selectivity form
                                      fish_sel_model =
                                        c("logist1_Fleet_1",
                                          "gamma_Fleet_2"),

                                      # fishery catchability blocks
                                      fish_q_blocks =
                                        c("none_Fleet_1",
                                          "none_Fleet_2"),
                                      # no blocks since q is not estimated

                                      # whether to estimate all fixed effects
                                      # for fishery selectivity and later modify
                                      # to fix and share parameters
                                      fish_fixed_sel_pars =
                                        c("est_all", "est_all"),

                                      # whether to estimate all fixed effects
                                      # for fishery catchability
                                      fish_q_spec =
                                        c("fix", "fix")
                                      # fix fishery q since not used
)


# Custom parameter sharing for fishery selectivity
map_ln_fish_fixed_sel_pars <- input_list$par$ln_fish_fixed_sel_pars # mapping fishery selectivity

# Fixed gear fleet, unique parameters for each sex (time block 1)
map_ln_fish_fixed_sel_pars[,1,1,1,1] <- 1 # a50, female, time block 1, fixed gear
map_ln_fish_fixed_sel_pars[,2,1,1,1] <- 2 # delta, female, time block 1, fixed gear
# (shared with time block 2 and sex)
map_ln_fish_fixed_sel_pars[,1,1,2,1] <- 3 # a50, male, time block 1, fixed gear
map_ln_fish_fixed_sel_pars[,2,1,2,1] <- 2 # delta, male, time block 1, fixed gear
# (shared with time block 2 and sex)

# time block 2, fixed gear fishery
map_ln_fish_fixed_sel_pars[,1,2,1,1] <- 4 # a50, female, time block 2, fixed gear
map_ln_fish_fixed_sel_pars[,2,2,1,1] <- 2 # delta, female, time block 2, fixed gear
# (shared with time block 1 and sex)
map_ln_fish_fixed_sel_pars[,1,2,2,1] <- 5 # a50, male, time block 2, fixed gear
map_ln_fish_fixed_sel_pars[,2,2,2,1] <- 2 # delta, male, time block 2, fixed gear
# (shared with time block 1 and sex)

# time block 1 and 2, trawl gear fishery
map_ln_fish_fixed_sel_pars[,1,1,1,2] <- 6 # amax, female, time block 1, trawl gear
map_ln_fish_fixed_sel_pars[,2,1,1,2] <- 7 # delta, female, time block 1, trawl gear
# (shared by sex)
map_ln_fish_fixed_sel_pars[,1,1,2,2] <- 8 # amax, male, time block 1, trawl gear
map_ln_fish_fixed_sel_pars[,2,1,2,2] <- 7 # delta, male, time block 1, trawl gear
# (shared by sex)
map_ln_fish_fixed_sel_pars[,,2,,2] <- NA # no parameters estimated for time block 2 trawl gear

input_list$map$ln_fish_fixed_sel_pars <- factor(map_ln_fish_fixed_sel_pars) # input into map list
input_list$par$ln_fish_fixed_sel_pars[] <- log(5) # some more inforamtive starting values

Again, the same arguments are expected for setting up survey selectivity, and there are similarly some nuanced parameter fixing and sharing to help facilitate model stability.

input_list <- Setup_Mod_Srvsel_and_Q(input_list = input_list,

                                     # Model options
                                     # survey selectivity, whether continuous time-varying
                                     cont_tv_srv_sel =
                                       c("none_Fleet_1",
                                         "none_Fleet_2"),

                                     # survey selectivity blocks
                                     srv_sel_blocks =
                                       c("none_Fleet_1",
                                         "none_Fleet_2"
                                       ), # no blocks for jp and domestic survey

                                     # survey selectivity form
                                     srv_sel_model =
                                       c("logist1_Fleet_1",
                                         "logist1_Fleet_2"),

                                     # survey catchability blocks
                                     srv_q_blocks =
                                       c("none_Fleet_1",
                                         "none_Fleet_2"),

                                     # whether to estiamte all fixed effects
                                     # for survey selectivity and later
                                     # modify to fix/share parameters
                                     srv_fixed_sel_pars_spec =
                                       c("est_all",
                                         "est_all"),

                                     # whether to estiamte all
                                     # fixed effects for survey catchability
                                     # spatially-invariant q
                                     srv_q_spec =
                                       c("est_shared_r",
                                         "est_shared_r"),

                                     # Starting values for survey catchability
                                     ln_srv_q = array(9,
                                                      dim = c(input_list$data$n_regions, 1,
                                                              input_list$data$n_srv_fleets))
)

# Custom mapping survey selectivity stuff
map_ln_srv_fixed_sel_pars <- input_list$par$ln_srv_fixed_sel_pars # set up mapping factor stuff

# Coop survey (japanese)
map_ln_srv_fixed_sel_pars[,1,1,1,1] <- 1 # a50, coop survey, time block 1, female
map_ln_srv_fixed_sel_pars[,2,1,1,1] <- 2 # delta, coop survey, time block 1, female
# (sharing with domestic survey)
map_ln_srv_fixed_sel_pars[,1,1,2,1] <- 3 # a50, coop survey, time block 1, male
map_ln_srv_fixed_sel_pars[,2,1,2,1] <- 4 # delta, coop survey, time block 1, male
# (sharing with domestic survey)

# domestic survey
map_ln_srv_fixed_sel_pars[,1,1,1,2] <- 5 # a50, domestic survey, time block 1, female
map_ln_srv_fixed_sel_pars[,2,1,1,2] <- 2 # delta, domestic survey, time block 1, female
# (sharing with coop survey)
map_ln_srv_fixed_sel_pars[,1,1,2,2] <- 6 # a50, domestic survey, time block 1, male
map_ln_srv_fixed_sel_pars[,2,1,2,2] <- 4 # delta, domestic survey, time block 1, male
# (sharing with coop survey)

input_list$map$ln_srv_fixed_sel_pars <- factor(map_ln_srv_fixed_sel_pars)  # input into map list
input_list$par$ln_srv_fixed_sel_pars[] <- log(5) # some more informative starting values

Setup Model Weighting

Finally, we can specify how we want model weighting to be conducted. In this case, we are using TMB-style likelihoods (likelihoods = 1) such that all data sources are weighted with user specified sigmas or standard errors. Thus, the remaining arguments of Wt_Catch, Wt_FishIdx, Wt_SrvIdx, Wt_Rec, and Wt_F are specified at 1. Additionally, Francis re-weighting is not used in this case study and composition weights are similarly specified at values of 1 (Wt_FishAgeComps, Wt_FishLenComps, Wt_SrvAgeComps, and Wt_SrvLenComps).

# set up model weighting stuff
input_list <- Setup_Mod_Weighting(input_list = input_list,
                                  sablefish_ADMB = 0,
                                  # don't use sablefish single region ADMB quirks
                                  likelihoods = 1, # using TMB-style likelihoods,
                                  # and weight using sigmas, instead of lambdas
                                  # and sigmas together
                                  Wt_Catch = 1,
                                  Wt_FishIdx = 1,
                                  Wt_SrvIdx = 1,
                                  Wt_Rec = 1,
                                  Wt_F = 1,
                                  Wt_Tagging = 1,
                                  # Composition model weighting
                                  Wt_FishAgeComps =
                                    array(1, dim = c(input_list$data$n_regions,
                                                     length(input_list$data$years),
                                                     input_list$data$n_sexes,
                                                     input_list$data$n_fish_fleets)),
                                  Wt_FishLenComps =
                                    array(1, dim = c(input_list$data$n_regions,
                                                     length(input_list$data$years),
                                                     input_list$data$n_sexes,
                                                     input_list$data$n_fish_fleets)),
                                  Wt_SrvAgeComps =
                                    array(1, dim = c(input_list$data$n_regions,
                                                     length(input_list$data$years),
                                                     input_list$data$n_sexes,
                                                     input_list$data$n_srv_fleets)),
                                  Wt_SrvLenComps =
                                    array(1, dim = c(input_list$data$n_regions,
                                                     length(input_list$data$years),
                                                     input_list$data$n_sexes,
                                                     input_list$data$n_srv_fleets))
)

Fit Model and Plot

We are done with the setup! Now, we can run our model. This is aided by the fit_model function, which expects a data, mapping, and parameters list and uses the MakeADFUN function internally. These lists can be extracted from the input_list constructed. The report file is extracted out internally from fit_model and standard errors can then be extracted using the RTMB::sdreport function. As a word of caution, this could take a while to run!

# extract out lists updated with helper functions
data <- input_list$data
parameters <- input_list$par
mapping <- input_list$map

# Fit model
sabie_rtmb_model <- fit_model(data,
                              parameters,
                              mapping,
                              random = NULL,
                              newton_loops = 5,
                              silent = TRUE
                              )

# Get standard error report
sabie_rtmb_model$sd_rep <- RTMB::sdreport(sabie_rtmb_model)

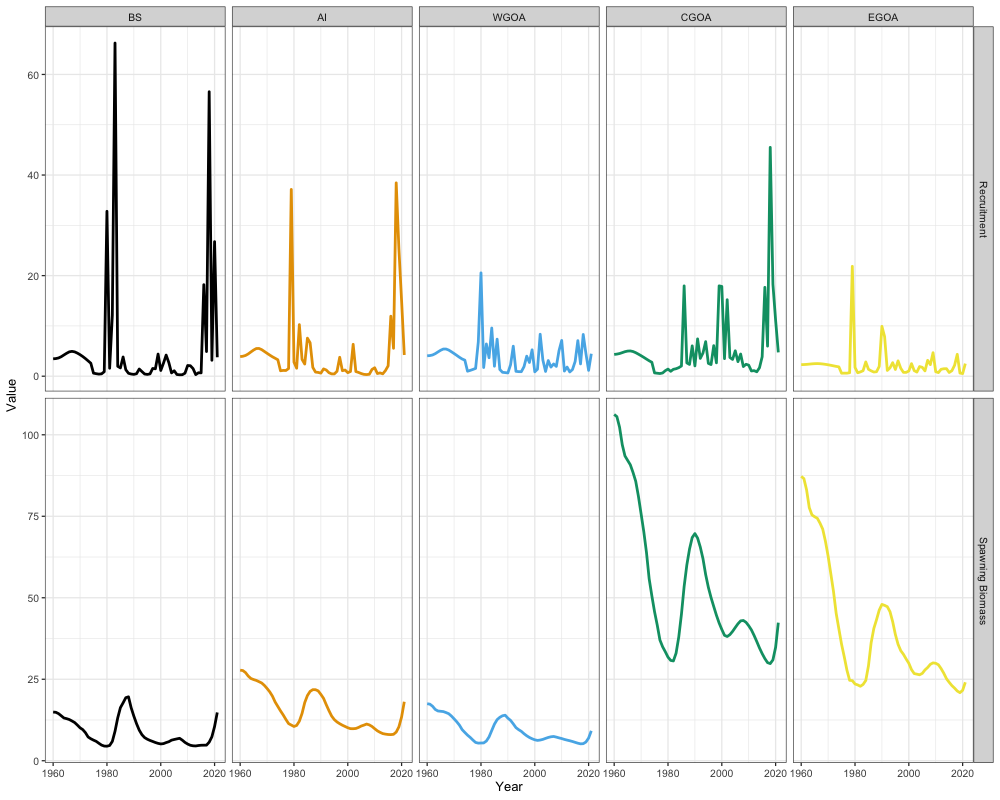

Inspecting results from our spatial model, it appears that the highest spawning biomass occurs in the CGOA, followed by the EGOA. Western regions generally demonstrate relatively comparable levels of spawning biomass. Additionally, western regions (BS and AI) along with the CGOA appear to exhibit the highest recruitment levels.

# Get recruitment time-series
rec_series <- reshape2::melt((sabie_rtmb_model$rep$Rec))
rec_series$Par <- "Recruitment"

# Get SSB time-series
ssb_series <- reshape2::melt((sabie_rtmb_model$rep$SSB))
ssb_series$Par <- "Spawning Biomass"

ts_df <- rbind(ssb_series,rec_series) # bind together

# Do some data munging here
ts_df <- ts_df %>% dplyr::rename(Region = Var1, Year = Var2) %>%
  dplyr::mutate(Region = dplyr::case_when(
    Region == 1 ~ 'BS',
    Region == 2 ~ 'AI',
    Region == 3 ~ 'WGOA',
    Region == 4 ~ 'CGOA',
    Region == 5 ~ 'EGOA'
  ),
  Region = factor(Region, levels = c("BS", "AI", "WGOA", "CGOA", "EGOA")),
  Year = Year + 1959)

# plot!
ggplot(ts_df, aes(x = Year, y = value, color = Region)) +
  geom_line(size = 1.3) +
  facet_grid(Par~Region, scales = "free_y") +
  ggthemes::scale_color_colorblind() +
  labs(y = "Value")  +
  theme_bw(base_size = 13) +
  theme(legend.position = 'none')
